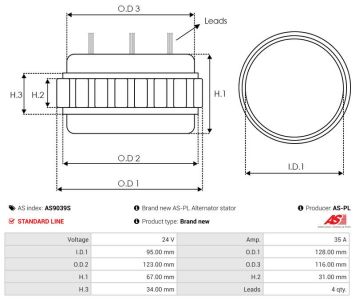

AS9039S

Cod: AS9039S

---

Categorie: Stator alternator

---

Varianta constr.: Nikko

---

Supplier: As-pl

---

STANDARD LINE

---

Brand new AS-PL Alternator stator

---

Amperaj: 35 A

---

h.1: 67.00 mm

---

h.2: 31.00 mm

---

h.3: 34.00 mm

---

I.d.1: 95.00 mm

---

Numarul firelor: 4

---

O.d.1: 128.00 mm

---

O.d.2: 123.00 mm

---

O.d.3: 116.00 mm

---

Voltaj: 24 v

---
