  1. Electromotor
    2. >
  2. S01135S



S01135S


Cod: S01135S
Categorie: Electromotor
Varianta constr.: Bosch
Supplier: As-pl
: 0001179530
STANDARD LINE

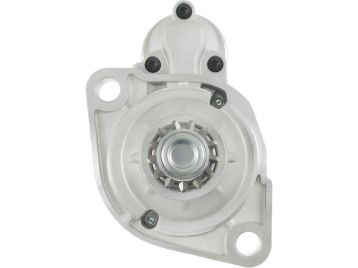

Brand new AS-PL Starter motor

A: 79.00 mm
B: 57.00 mm
C.1: 12.50 mm
C.2: 12.50 mm
L.1: 228.00 mm
Numărul dinților: 13
Numărul găurilor de prindere: 2
Numărul găurilor filetate: 0
O.1: 111.00 mm
Putere: 2.00 kW
Rotație: ACW
Voltaj: 12 v


Reference number

CodVarianta constr.
PRSF4763EFFE
ANM99950Andel
UD17329SAs-pl
SDN309Autoteam
SDN309AAutoteam
0001145004Bosch
0001179530 Bosch
0001179531Bosch
0001179531-RBosch
0986029240Bosch
1986S01048Bosch
1986S01124Bosch
S102264BTS Turbo
S103041BTS Turbo
116756Cargo
F032116756Cargo
BREF032116756Carwood Group
CST40309ASCasco
CST40309GSCasco
3393Cevam
3708Cevam
041282Da Silva
DRS0933DELCO
DRS1099DELCO
428000-7040 Denso
428000-7041Denso
428000-7042Denso
428000-7043Denso
428000-7044Denso
428000-8860 Denso
428000-8861Denso
428000-8862Denso
428000-8863Denso
428080-7040Denso
428080-8863Denso
DSN1467Denso
DSN964Denso
311273132Dri
311419132Dri
12414Eai
25-4215Elstock
25-5257Elstock
8080476Friesen
3117000Henkel Parts
3117002Henkel Parts
3129395Henkel Parts
42000007Herth+buss
H5010986GHoffer
H5040625Hoffer
10040309AVItab Automotive
10040309OVItab Automotive
STN0467Krauf
STN4923Krauf
255457Kuhner
255457DKuhner
336130Logistik
LRS02543Lucas
LRS04094Lucas
LRS2543Lucas
LRS4094Lucas
063721675610Magneti Marelli
943267561010Magneti Marelli
MQS6756Magneti Marelli
MSRC6756Magneti Marelli
5010986GMeat & Doria
5040625Meat & Doria
88214449Powermax
300.907.132.050Psh
300.907.132.215Psh
300.907.132.261Psh
300.907.132.281Psh
300.907.132.340Psh
300.907.132.341Psh
300.907.132.440Psh
S132.289Psh
S145.269Psh
20432903BNReal
20432903OEReal
6040309.0Sando
6040309.1Sando
S12BH0633Sidat
S12DE0633Sidat
S12DE0633A2Sidat
MAV423090ASIOM
VW9114Snra
414ST21Startcar
ST01720Tmi
ST02211Tmi
438569Valeo
0AH911023FVw
0AH911023FXVw
0AH911023GVw
0AH911023GXVw
0AH911023JVw
0AH911023JXVw
30430NWai / Transpo
WG1920123Wilmink Group
WG2471175Wilmink Group
STR70425Woodauto
WOOSTR70425Woodauto
30-2326Airstal
WST01237Walker


Utilizat pentru

BrandModelTipAnObservatii
AUDIA3 (8P1) 1.2 TSICBZB04.2010-08.2012
AUDIA3 (8V1, 8VK) 1.2 TFSICJZA02.2013-05.2015
AUDIA3 (8V1, 8VK) 1.2 TFSICYVB05.2014-08.2016
AUDIA3 Convertible (8P7) 1.2 TFSICBZB03.2010-05.2013
AUDIA3 Limousine (8VS, 8VM) 1.2 TFSICJZA10.2013-05.2015
AUDIA3 Limousine (8VS, 8VM) 1.2 TFSICYVB05.2014-08.2016
AUDIA3 Sportback (8PA) 1.2 TSICBZB04.2010-03.2013
AUDIA3 Sportback (8VA, 8VF) 1.2 TFSICJZA05.2013-05.2015
AUDIA3 Sportback (8VA, 8VF) 1.2 TFSICYVB05.2014-08.2016
SEATALTEA (5P1) 1.2 TSICBZB04.2010-07.2015
SEATALTEA XL (5P5, 5P8) 1.2 TSICBZB04.2010-07.2015
SEATALTEA XL (5P5, 5P8) 1.4 TSICAXC11.2007-07.2015
SEATLEON (1P1) 1.2 TSICBZB02.2010-12.2012
SEATLEON (5F1) 1.2 TSICJZB12.2012-08.2018
SEATLEON (5F1) 1.2 TSICYVA12.2012-08.2018
SEATLEON (5F1) 1.2 TSICJZA01.2013-08.2020
SEATLEON (5F1) 1.2 TSICYVB04.2014-08.2020
SEATLEON Hatchback Van (5F1) 1.2 TSICJZB01.2013-08.2018
SEATLEON Hatchback Van (5F1) 1.2 TSICYVA01.2013-08.2018
SEATLEON Hatchback Van (5F1) 1.2 TSICYVB04.2014-08.2018
SEATLEON Hatchback Van (5F1) 1.4 TSICMBA09.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.4 TSICXSA09.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.4 TSICHPA09.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.4 TSICPTA09.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.4 TSICZEA05.2014-08.2020
SEATLEON Hatchback Van (5F1) 1.6 TDICLHB11.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.6 TDICLHA09.2012-10.2016
SEATLEON Hatchback Van (5F1) 1.6 TDICRKB09.2013-10.2016
SEATLEON Hatchback Van (5F1) 1.6 TDICXXB09.2013-10.2016
SEATLEON Hatchback Van (5F1) 1.6 TDIDBKA09.2013-10.2016
SEATLEON Hatchback Van (5F1) 1.8 TFSICJSA02.2013-08.2018
SEATLEON Hatchback Van (5F1) 2.0 TDICKFC10.2012-08.2018
SEATLEON Hatchback Van (5F1) 2.0 TDICRMB10.2012-08.2018
SEATLEON Hatchback Van (5F1) 2.0 TDICUNA02.2013-08.2018
SEATLEON Hatchback Van (5F1) 2.0 TDICUPA02.2013-08.2018
SEATLEON SC (5F5) 1.2 TSICJZB01.2013-08.2018
SEATLEON SC (5F5) 1.2 TSICYVA01.2013-08.2018
SEATLEON SC (5F5) 1.2 TSICJZA02.2013-04.2014
SEATLEON SC (5F5) 1.2 TSICYVB05.2014-08.2018
SEATLEON ST (5F8) 1.2 TSICJZA08.2013-08.2020
SEATLEON ST (5F8) 1.2 TSICJZB11.2013-08.2018
SEATLEON ST (5F8) 1.2 TSICYVA11.2013-08.2018
SEATLEON ST (5F8) 1.2 TSICYVB05.2014-08.2020
SEATLEON ST Estate Van (5F8) 1.2 TSICJZB01.2013-08.2018
SEATLEON ST Estate Van (5F8) 1.2 TSICYVA01.2013-08.2018
SEATLEON ST Estate Van (5F8) 1.2 TSICYVB05.2014-08.2018
SKODAOCTAVIA III (5E3, NL3, NR3) 1.2 TSICJZB11.2012-02.2017
SKODAOCTAVIA III (5E3, NL3, NR3) 1.2 TSICYVA11.2012-02.2017
SKODAOCTAVIA III (5E3, NL3, NR3) 1.2 TSICJZA11.2012-02.2017
SKODAOCTAVIA III (5E3, NL3, NR3) 1.2 TSICYVB05.2015-02.2017
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDICKFC11.2012-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDICRMB11.2012-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDICYKA11.2012-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDIDCYA11.2012-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDIDFFA11.2012-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDI 4x4CKFC05.2013-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDI 4x4CRMB05.2013-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDI 4x4DCYA05.2013-10.2020
SKODAOCTAVIA III (5E3, NL3, NR3) 2.0 TDI 4x4DFFA05.2013-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 1.2 TSICJZB11.2012-02.2017
SKODAOCTAVIA III Combi (5E5, 5E6) 1.2 TSICYVA11.2012-02.2017
SKODAOCTAVIA III Combi (5E5, 5E6) 1.2 TSICJZA11.2012-02.2017
SKODAOCTAVIA III Combi (5E5, 5E6) 1.2 TSICYVB05.2015-02.2017
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDICKFC11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDICRMB11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDICYKA11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDIDCYA11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDIDFFA11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDI 4x4CKFC11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDI 4x4CRMB11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDI 4x4DCYA11.2012-10.2020
SKODAOCTAVIA III Combi (5E5, 5E6) 2.0 TDI 4x4DFFA11.2012-10.2020
VWBEETLE (5C1, 5C2) 1.2 TSICBZB07.2011-07.2019
VWBEETLE (5C1, 5C2) 1.2 TSI 16VCYVD12.2014-07.2019
VWBEETLE Convertible (5C7, 5C8) 1.2 TSICBZB12.2011-07.2019
VWBEETLE Convertible (5C7, 5C8) 1.2 TSI 16VCYVD12.2014-07.2019
VWCADDY ALLTRACK IV Box Body/MPV (SAA) 1.2 TSICYVC06.2015-
VWCADDY ALLTRACK IV MPV (SAB) 1.2 TSICYVC06.2015-
VWCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TSCBZA09.2010-05.2015
VWCADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TSCBZB09.2010-05.2015
VWCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.2 TSICBZA09.2010-05.2015
VWCADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.2 TSICBZB09.2010-05.2015
VWCADDY IV Box Body/MPV (SAA, SAH) 1.0 TSICHZG11.2015-09.2020
VWCADDY IV Box Body/MPV (SAA, SAH) 1.0 TSIDKRE11.2015-09.2020
VWCADDY IV Box Body/MPV (SAA, SAH) 1.2 TSICYVC06.2015-09.2020
VWCADDY IV Box Body/MPV (SAA, SAH) 1.6 SRECWVA11.2015-09.2020
VWCADDY IV MPV (SAB, SAJ) 1.0 TSICHZG11.2015-09.2020
VWCADDY IV MPV (SAB, SAJ) 1.0 TSIDKRE11.2015-09.2020
VWCADDY IV MPV (SAB, SAJ) 1.0 TSIDKRD11.2018-07.2019
VWCADDY IV MPV (SAB, SAJ) 1.2 TSICYVC06.2015-09.2020
VWCADDY IV MPV (SAB, SAJ) 1.6 SRECWVA11.2015-09.2020
VWGOLF PLUS V (5M1, 521) 1.2 TSICBZA05.2010-12.2013
VWGOLF PLUS V (5M1, 521) 1.2 TSICBZB11.2009-12.2013
VWGOLF PLUS Van (521) 1.2 TSiCBZB11.2009-08.2014
VWGOLF SPORTSVAN VII (AM1, AN1) 1.2 TSICYVB04.2014-11.2017
VWGOLF SPORTSVAN VII (AM1, AN1) 1.2 TSICYVA05.2014-11.2017
VWGOLF VAN VI Variant (AJ5) 1.2 TSiCBZB09.2009-05.2014
VWGOLF VAN VII Variant (BA5) 1.2 TSi BlueMotionCJZB05.2013-03.2017
VWGOLF VAN VII Variant (BA5) 1.2 TSi BlueMotionCYVA05.2013-03.2017
VWGOLF VAN VII Variant (BA5) 1.2 TSi BlueMotionCJZA04.2013-03.2017
VWGOLF VI (5K1) 1.2 TSICBZA05.2010-11.2012
VWGOLF VI (5K1) 1.2 TSICBZB11.2008-11.2012
VWGOLF VI Convertible (517) 1.2 TSICBZB03.2011-05.2016
VWGOLF VI Convertible (517) 1.2 TSI 16VCJZA11.2013-05.2016
VWGOLF VI Convertible (517) 1.2 TSI 16VCYVD11.2013-05.2016
VWGOLF VI Convertible (517) 1.4 TSICXSB11.2013-05.2016
VWGOLF VI Convertible (517) 1.4 TSICZCA11.2013-05.2016
VWGOLF VI Convertible (517) 1.4 TSICHPB11.2013-05.2016
VWGOLF VI Convertible (517) 1.4 TSICZDA11.2013-05.2016
VWGOLF VI Van (5K1) 1.2 TSiCBZA05.2010-11.2012
VWGOLF VI Van (5K1) 1.2 TSi BlueMotionCBZB05.2009-11.2012
VWGOLF VI Variant (AJ5) 1.2 TSICBZB07.2009-07.2013
VWGOLF VI Variant (AJ5) 1.2 TSICBZA07.2010-07.2013
VWGOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSICJZB08.2012-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSICYVA08.2012-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSICJZA11.2012-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSICYVB04.2014-03.2017
VWGOLF VII Van (5G1) 1.2 TSi BlueMotionCJZB08.2012-03.2017
VWGOLF VII Van (5G1) 1.2 TSi BlueMotionCJZA11.2012-03.2017
VWGOLF VII Variant (BA5, BV5) 1.2 TSICJZB05.2013-03.2017
VWGOLF VII Variant (BA5, BV5) 1.2 TSICYVA05.2013-03.2017
VWGOLF VII Variant (BA5, BV5) 1.2 TSICJZA04.2013-08.2020
VWGOLF VII Variant (BA5, BV5) 1.2 TSICYVB04.2014-03.2017
VWJETTA IV (162, 163, AV3, AV2) 1.2 TSICBZB10.2010-12.2017
VWJETTA IV (162, 163, AV3, AV2) 1.2 TSI 16VCYVD08.2014-12.2017
VWPASSAT CC B6 (357) 2.0 TDI 4motionCBBB11.2009-01.2012
VWPASSAT CC B6 (357) 2.0 TDI 4motionCFGB11.2009-01.2012
VWTOURAN (1T3) 1.2 TSICBZB05.2010-05.2015
VWTOURAN (5T1) 1.2 TSICYVB05.2015-
VWTOURAN VAN (1T3) 1.2 TSICBZB05.2010-05.2015
