S01248S
Cod: S01248S
Categorie: Electromotor
Varianta constr.: Bosch
Supplier: As-pl
: 0001194046
STANDARD LINE

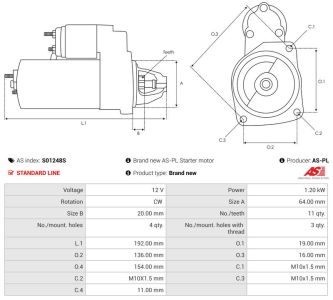

Brand new AS-PL Starter motor
A: 64.00 mm
B: 20.00 mm
C.1: M10x1.5 mm
C.2: M10X1.5 mm
C.3: M10x1.5 mm
C.4: 11.00 mm
L.1: 192.00 mm
Numărul dinților: 11
Numărul găurilor de prindere: 4
Numărul găurilor filetate: 3
O.1: 19.00 mm
O.2: 136.00 mm
O.3: 16.00 mm
O.4: 154.00 mm
Putere: 1.20 kW
Rotație: CW
Voltaj: 12 v
Reference number
| Cod | Varianta constr. | |
| UD105013S | As-pl | |
| 0001194046 | Bosch | |
| 30047 | Cevam | |
| 042878 | Da Silva | |
| 330093112 | Dri | |
| 12493 | Eai | |
| 25-5577 | Elstock | |
| 8081489 | Friesen | |
| 10010078OV | Itab Automotive | |
| 256939S | Kuhner | |
| LRS04408 | Lucas | |
| LRS4408 | Lucas | |
| IR1238 | Protech | |
| 570.563.113.010 | Psh | |
| 233001560R | Renault | |
| 233002394R | Renault | |
| TR9107 | Snra | |
| STX201508R | Stardax | |
| 493ST21 | Startcar | |
| ST03027 | Tmi | |
| 830525002 | Triscan | |
| 31554N | Wai / Transpo | |
| WST01631 | Walker |
Utilizat pentru
| Brand | Model | Tip | An | Observatii |
| DACIA | DUSTER (HM_) 1.3 TCe 130 (HMMF) | H5H470 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 130 (HMMF) | H5H480 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 130 4x4 (HMMF) | H5H470 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 130 4x4 (HMMF) | H5H480 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 130 4x4 (HMMF) | H5H494 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 (HMM3) | H5H470 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 (HMM3) | H5H480 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 (HMM3) | H5H490 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 4x4 (HMM3) | H5H470 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 4x4 (HMM3) | H5H480 | 01.2019- | |
| DACIA | DUSTER (HM_) 1.3 TCe 150 4x4 (HMM3) | H5H490 | 01.2019- | |
| DACIA | LOGAN III (3K_) 1.0 TCe 100 ECO-G | H4D480 | 05.2021- | |
| DACIA | LOGAN III (3K_) 1.0 TCe 90 (3KM6) | H4D470 | 05.2021- | |
| DACIA | SANDERO III 1.0 SCe 65 | B4D419 | 01.2021- | |
| DACIA | SANDERO III 1.0 TCe 100 | H4D480 | 01.2021- | |
| DACIA | SANDERO III 1.0 TCe 100 ECO-G | H4D480 | 01.2021- | |
| DACIA | SANDERO III 1.0 TCe 110 | 07.2022- | ||
| DACIA | SANDERO III 1.0 TCe 90 | H4D470 | 01.2021- | |
| DACIA | SANDERO III 1.0 TCe 90 ECO-G | H4D470 | 01.2021- | |
| MITSUBISHI | ASX (VSX_, VSE_) 1.3 MHEV (VSXG3) | H5H490 | 01.2023- | |
| MITSUBISHI | ASX (VSX_, VSE_) 1.3 MHEV (VSXG3) | H5H490 | 01.2023- | |
| RENAULT | ARKANA I (LCM_, LDN_) 1.3 TCe 140 (LDN0) | H5H490 | 09.2020- | |
| RENAULT | ARKANA I (LCM_, LDN_) 1.3 TCe 160 (LDN1) | H5H490 | 03.2021- | |
| RENAULT | AUSTRAL TCe 140 (HGMF) | H5H490 | 07.2022- | |
| RENAULT | AUSTRAL TCe 160 (HGMJ) | H5H498 | 07.2022- | |
| RENAULT | CAPTUR II (HF_) TCe 130 (HFMF) | H5H470 | 01.2020- | |
| RENAULT | CAPTUR II (HF_) TCe 155 (HFMN) | H5H470 | 01.2020- |
