S9286S
Cod: S9286S
Categorie: Electromotor
Varianta constr.: Briggs Stratton
Supplier: As-pl
STANDARD LINE

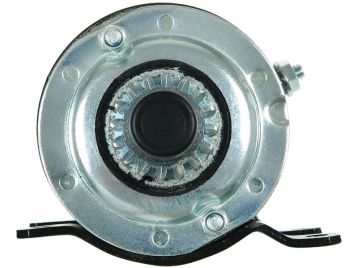

Brand new AS-PL Starter motor
B: 33.50 mm
C.1: 8.00 mm
C.2: 8.00 mm
C.3: 8.00 mm
C.4: 8.00 mm
L.1: 172.00 mm
Numărul dinților: 16
Numărul găurilor de prindere: 4
Numărul găurilor filetate: 0
O.1: 58.00 mm
O.2: 88.00 mm
O.3: 58.00 mm
O.4: 88.00 mm
Putere: 0.48 kW
Rotație: ACW
Voltaj: 12 v
Reference number
| Cod | Varianta constr. | |
| STRF336 | 3EFFE | |
| 10440833 | Alanko | |
| STC0006 | Arrowhead | |
| UD03132S | As-pl | |
| UD13663S | As-pl | |
| 112312 | Cargo | |
| F032112312 | Cargo | |
| AM30931 | John Deere | |
| STZ0212 | Krauf | |
| STZ5749 | Krauf | |
| 5749 | Lester | |
| 400.099.160.190 | Psh | |
| S132.668 | Psh | |
| 32468B | Tecumseh | |
| 33202 | Tecumseh | |
| 33605 | Tecumseh | |
| 33606 | Tecumseh | |
| 35763 | Tecumseh | |
| 35763A | Tecumseh | |
| 36463 | Tecumseh | |
| 36680 | Tecumseh | |
| 107415 | Wai / Transpo | |
| 2-2194 | Wai / Transpo | |
| 5749N | Wai / Transpo | |
| STR88301 | Woodauto | |
| WOOSTR88301 | Woodauto |
Utilizat pentru
| Brand | Model | Tip | An | Observatii |
| Tecumseh | Engine | HM100 | - | |
| Tecumseh | Engine | HM70 | - | |
| Tecumseh | Engine | OVM120 | - | |
| Tecumseh | Engine | OVXL120 | - | |
| Tecumseh | Engine | TVM170 | - | |
| Tecumseh | Engine | TVM220 | - | |
| Tecumseh | Engine | TVXL170 | - | |
| Tecumseh | Engine | TVXL220 | - |
