S9601S
Cod: S9601S
Categorie: Electromotor
Varianta constr.: Johnson Electric
Supplier: As-pl
STANDARD LINE

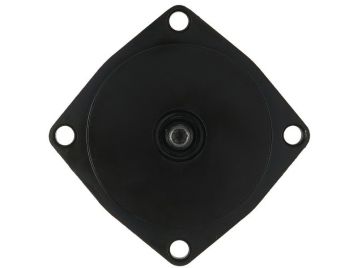

Brand new AS-PL Starter motor
A: 64.00 mm
C.1: 7.20 mm
C.2: 7.20 mm
C.3: 7.20 mm
C.4: 7.20 mm
L.1: 127.00 mm
Numărul găurilor de prindere: 4
O.1: 62.00 mm
O.2: 62.00 mm
O.3: 62.00 mm
O.4: 62.00 mm
Rotație: CW/ACW
Voltaj: 12 v
Reference number
| Cod | Varianta constr. | |
| TRM0040 | Arrowhead | |
| UD13703S | As-pl | |
| 36120-ZV5-821 | Honda | |
| STZ5757 | Krauf | |
| 10811 | Lester | |
| 435532 | OMC | |
| 350.514.000.200 | Psh | |
| 10811AN | Wai / Transpo | |
| 10811N | Wai / Transpo | |
| 82-6893 | Wai / Transpo | |
| 74-09-10811 | Wilson |
Utilizat pentru
| Brand | Model | Tip | An | Observatii |
| Evinrude | Engine | 40H.P. | 01.1989-12.1999 | |
| Evinrude | Engine | 48H.P. | 01.1989-12.1999 | |
| Evinrude | Engine | 50H.P. | 01.1989-12.1999 | |
| Johnson | Engine | 40H.P. | 01.1989-12.1999 | |
| Johnson | Engine | 48H.P. | 01.1989-12.1999 | |
| Johnson | Engine | 50H.P. | 01.1989-12.1999 | |
| Omc | Engine | 40H.P. | 01.1989-12.1999 | |
| Omc | Engine | 48H.P. | 01.1989-12.1999 | |
| Omc | Engine | 50H.P. | 01.1989-12.1999 |
