A01006S
Code: A01006S
Category: Alternators
Manufacturer: Bosch
Supplier: As-pl
: 0125815008
STANDARD LINE

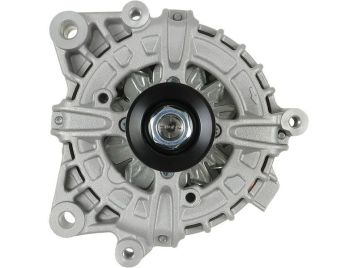

Brand new AS-PL Alternator

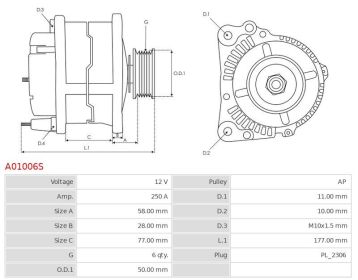

Size a: 58.00 mm
Size b: 28.00 mm
Size c: 77.00 mm
Amp.: 250 A
D.1: 11.00
D.2: 10.00
D.3: M10x1.5
Pulley: AP
L.1: 177.00 mm
Plug: PL_2306
G: 6
O.d.1: 50.00 mm
Voltage: 12 v
Com id: 128
Reference number
| Code | Manufacturer | ||||
| ALTJ511 | 3EFFE | ||||
| ANM100474 | Andel | ||||
| UD102484A | As-pl | ||||
| 12318575060 | Bmw | ||||
| 12318587941 | Bmw | ||||
| 8575060 | Bmw | ||||
| 8587941 | Bmw | ||||
| 0125815007 | Bosch | ||||
| |||||
| 0125815008 | Bosch | ||||
| |||||
| 0125815008-R | Bosch | ||||
| G100915 | BTS Turbo | ||||
| G101196 | BTS Turbo | ||||
| BREF0320125815007 | Carwood Group | ||||
| CAL10A16GS | Casco | ||||
| 40771 | Cevam | ||||
| 031446 | Da Silva | ||||
| DRA2008 | DELCO | ||||
| 2153292502 | Dri | ||||
| 58022 | Eai | ||||
| 28-8612 | Elstock | ||||
| 115528 | Farcom | ||||
| 9091211 | Friesen | ||||
| 3115572 | Henkel Parts | ||||
| H55101388G | Hoffer | ||||
| 6.8107.1 | Ika | ||||
| 20010A16OV | Itab Automotive | ||||
| ALB4563 | Krauf | ||||
| 555380RIB | Kuhner | ||||
| 555380RIR | Kuhner | ||||
| LRA04503 | Lucas | ||||
| LRA4503 | Lucas | ||||
| 55101388G | Meat & Doria | ||||
| 215.911.250.210 | Psh | ||||
| 215.911.250.280 | Psh | ||||
| A146.069 | Psh | ||||
| 2010161AOE | Real | ||||
| 2010A16.1 | Sando | ||||
| A12BH1375 | Sidat | ||||
| ALT12A160 | SIOM | ||||
| BM8140 | Snra | ||||
| 022ST58 | Startcar | ||||
| 022ST85 | Startcar | ||||
| AL04381 | Tmi | ||||
| 21729N | Wai / Transpo | ||||
| WAL01492 | Walker | ||||
| 5481FB0055519 | Frankberg | ||||
Usage
| Brand | Model | Type | Year | Note |
| BMW | 5 (G30, F90) 520 d | B47D20A | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d | B47D20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d | B47D20A | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d | B47D20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20A | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20A | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 520 d xDrive | B47D20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 525 d | B47D20B | 07.2017-06.2019 | |
| BMW | 5 Touring (G31) 520 d | B47D20A | 03.2017- | |
| BMW | 5 Touring (G31) 520 d | B47D20B | 03.2017- | |
| BMW | 5 Touring (G31) 520 d | B47D20A | 03.2017- | |
| BMW | 5 Touring (G31) 520 d | B47D20B | 03.2017- | |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20A | 07.2017- | |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20B | 07.2017- | |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20A | 07.2017- | |
| BMW | 5 Touring (G31) 520 d xDrive | B47D20B | 07.2017- | |
| BMW | 5 Touring (G31) 525 d | B47D20B | 07.2017-06.2019 | |
| BMW | 5 Touring Van (G31) 520 d | B47D20A | 03.2017-06.2018 | |
| BMW | 5 Touring Van (G31) 520 d | B47D20B | 03.2017-06.2018 | |
| BMW | 5 Touring Van (G31) 520 d xDrive | B47D20A | 07.2017-06.2018 | |
| BMW | 5 Touring Van (G31) 520 d xDrive | B47D20B | 07.2017-06.2018 | |
| BMW | 7 (G11, G12) 725 d, Ld | B47D20B | 07.2016-02.2019 | |
| BMW | 7 (G11, G12) 725 d, Ld | B47D20B | 07.2016-02.2019 | |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20A | 04.2018-06.2020 | |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20B | 04.2018-06.2020 | |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20A | 04.2018-06.2020 | |
| BMW | X3 (G01, F97, G08) sDrive 18 d | B47D20B | 04.2018-06.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20A | 08.2017-03.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20B | 08.2017-03.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20A | 08.2017-03.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 20 d | B47D20B | 08.2017-03.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 25 d | B47D20B | 04.2018- | |
| BMW | X3 (G01, F97, G08) xDrive 25 d | B47D20B | 04.2018- | |
| BMW | X3 Van (G01) sDrive 18 d | B47D20A | 04.2018- | |
| BMW | X3 Van (G01) sDrive 18 d | B47D20B | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20A | 04.2018-03.2020 | |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20B | 04.2018-03.2020 | |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20A | 04.2018-03.2020 | |
| BMW | X4 (G02, F98) xDrive 20 d | B47D20B | 04.2018-03.2020 | |
| BMW | X4 (G02, F98) xDrive 25 d | B47D20B | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 25 d | B47D20B | 04.2018- |
