A01016S
Code: A01016S
Category: Alternators
Manufacturer: Bosch
Supplier: As-pl
: 0125814003
STANDARD LINE

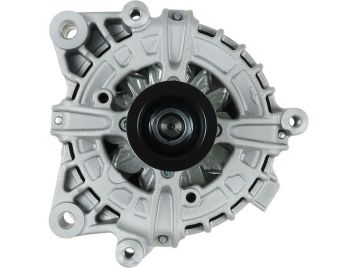

Brand new AS-PL Alternator
Size a: 79.00 mm
Size b: 28.00 mm
Size c: 77.00 mm
Amp.: 180 A
D.1: 10.50
D.2: 10.50
D.3: M10x1.5
Pulley: AP
L.1: 200.00 mm
Plug: PL_2306
G: 6
O.d.1: 49.20 mm
Voltage: 12 v
Com id: 96
Reference number
| Code | Manufacturer | |||||||||||||
| ALTJ506 | 3EFFE | |||||||||||||
| 28-7833CT | Ainde | |||||||||||||
| UD102303A | As-pl | |||||||||||||
| AEG1392 | Autoelectro | |||||||||||||
| 12318571357 | Bmw | |||||||||||||
| 12318614276 | Bmw | |||||||||||||
| 12318614277 | Bmw | |||||||||||||
| 12318614278 | Bmw | |||||||||||||
| 12318635552 | Bmw | |||||||||||||
| 8571357 | Bmw | |||||||||||||
| 8614276 | Bmw | |||||||||||||
| 8614277 | Bmw | |||||||||||||
| 8614278 | Bmw | |||||||||||||
| 8635552 | Bmw | |||||||||||||
| 0125812025 | Bosch | |||||||||||||
| ||||||||||||||
| 0125812026 | Bosch | |||||||||||||
| ||||||||||||||
| 0125813015 | Bosch | |||||||||||||
| ||||||||||||||
| 0125813016 | Bosch | |||||||||||||
| ||||||||||||||
| 0125814003 | Bosch | |||||||||||||
| ||||||||||||||
| 0125814004 | Bosch | |||||||||||||
| ||||||||||||||
| G100906 | BTS Turbo | |||||||||||||
| G101187 | BTS Turbo | |||||||||||||
| CAL10A21GS | Casco | |||||||||||||
| 40081 | Cevam | |||||||||||||
| 2153281802 | Dri | |||||||||||||
| 58011 | Eai | |||||||||||||
| 28-7833 | Elstock | |||||||||||||
| 209706A | Era | |||||||||||||
| 12090855 | Eurotec | |||||||||||||
| 115339 | Farcom | |||||||||||||
| H55101392G | Hoffer | |||||||||||||
| 20010A21OV | Itab Automotive | |||||||||||||
| ALB4124 | Krauf | |||||||||||||
| 555175RIB | Kuhner | |||||||||||||
| 555175RIR | Kuhner | |||||||||||||
| LRA04224 | Lucas | |||||||||||||
| LRA4224 | Lucas | |||||||||||||
| 55101392G | Meat & Doria | |||||||||||||
| 89216470 | Powermax | |||||||||||||
| 215.912.180.010 | Psh | |||||||||||||
| 215.912.180.280 | Psh | |||||||||||||
| 215.912.180.281 | Psh | |||||||||||||
| A146.070 | Psh | |||||||||||||
| A162.099 | Psh | |||||||||||||
| 2010112AOE | Real | |||||||||||||
| 2010A21.1 | Sando | |||||||||||||
| A12BH1379 | Sidat | |||||||||||||
| ALT12A210 | SIOM | |||||||||||||
| BM8129 | Snra | |||||||||||||
| AL03751 | Tmi | |||||||||||||
| 11874N | Wai / Transpo | |||||||||||||
| 90-15-6724 | Wilson | |||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| BMW | 1 (F20) M 140 i | B58B30A | 07.2016-06.2019 | |
| BMW | 1 (F20) M 140 i xDrive | B58B30A | 07.2016-06.2019 | |
| BMW | 1 (F21) M 140 i | B58B30A | 10.2015-06.2019 | |
| BMW | 1 (F21) M 140 i xDrive | B58B30A | 09.2015-06.2019 | |
| BMW | 1 Van (F20) M 140 i | B58B30A | 07.2016-06.2019 | |
| BMW | 2 Convertible (F23) M 240 i | B58B30A | 09.2015-06.2021 | |
| BMW | 2 Convertible (F23) M 240 i xDrive | B58B30A | 09.2015-06.2021 | |
| BMW | 2 Coupe (F22, F87) M 240 i | B58B30A | 09.2015-06.2021 | |
| BMW | 2 Coupe (F22, F87) M 240 i xDrive | B58B30A | 09.2015-06.2021 | |
| BMW | 3 (F30, F80) 340 i | B58B30A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 340 i | B58B30A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 340 i xDrive | B58B30A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 340 i xDrive | B58B30A | 07.2015-10.2018 | |
| BMW | 3 (G20, G80, G28) 320 i 1.6 | B48B16A | 03.2019- | |
| BMW | 3 (G20, G80, G28) 330 d | B57D30A | 03.2019- | |
| BMW | 3 (G20, G80, G28) 330 d xDrive | B57D30A | 07.2019- | |
| BMW | 3 Gran Turismo (F34) 340 i | B58B30A | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 340 i | B58B30A | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 340 i xDrive | B58B30A | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 340 i xDrive | B58B30A | 07.2016- | |
| BMW | 3 Touring (F31) 340 i | B58B30A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 340 i | B58B30A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 340 i xDrive | B58B30A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 340 i xDrive | B58B30A | 07.2015-06.2019 | |
| BMW | 3 Touring (G21, G81) 330 d | B57D30A | 11.2019- | |
| BMW | 3 Touring (G21, G81) 330 d xDrive | B57D30A | 07.2019- | |
| BMW | 3 Touring Van (F31) 340 i | B58B30A | 07.2015-06.2019 | |
| BMW | 3 Touring Van (G21) 330 d | B57D30A | 11.2019- | |
| BMW | 3 Touring Van (G21) 330 d xDrive | B57D30A | 11.2019- | |
| BMW | 4 Convertible (F33, F83) 440 i | B58B30A | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 440 i | B58B30A | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 440 i xDrive | B58B30A | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 440 i xDrive | B58B30A | 03.2016-07.2020 | |
| BMW | 4 Coupe (F32, F82) 440 i | B58B30A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 440 i | B58B30A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 440 i xDrive | B58B30A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 440 i xDrive | B58B30A | 03.2016-06.2020 | |
| BMW | 4 Coupe (G22, G82) 420 i 1.6 | B48B16A | 11.2020- | |
| BMW | 4 Gran Coupe (F36) 440 i | B58B30A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 440 i | B58B30A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 440 i xDrive | B58B30A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 440 i xDrive | B58B30A | 03.2016-05.2021 | |
| BMW | 5 (G30, F90) 520 i | B46B20B | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B16A | 07.2017-06.2023 | |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 d | B57D30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 d xDrive | B57D30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 i | B46B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i | B48B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i | B46B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i | B48B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 540 d xDrive | B57D30A | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 540 d xDrive | B57D30B | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 540 i | B58B30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 540 i | B58B30C | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 540 i | B58B30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30C | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 540 i xDrive | B58B30A | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) M 550 d xDrive | B57D30C | 06.2017-06.2020 | |
| BMW | 5 Touring (G31) 520 i | B48B20A | 07.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 d | B57D30A | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 d xDrive | B57D30A | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i | B48B20B | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i | B48B20B | 05.2022- | |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 07.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 05.2022- | |
| BMW | 5 Touring (G31) 540 d xDrive | B57D30B | 07.2017-06.2020 | |
| BMW | 5 Touring (G31) 540 i xDrive | B58B30A | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) 540 i xDrive | B58B30A | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) M 550 d xDrive | B57D30C | 07.2017- | |
| BMW | 5 Touring Van (G31) 530 d | B57D30A | 03.2017- | |
| BMW | 5 Touring Van (G31) 530 d xDrive | B57D30A | 03.2017- | |
| BMW | 5 Touring Van (G31) 530 i | B48B20B | 03.2017- | |
| BMW | 5 Touring Van (G31) 530 i xDrive | B48B20B | 07.2017- | |
| BMW | 5 Touring Van (G31) 540 i xDrive | B58B30A | 03.2017- | |
| BMW | 6 Gran Turismo (G32) 630 d | B57D30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 630 d xDrive | B57D30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 630 i | B48B20B | 07.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 d xDrive | B57D30B | 11.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30C | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i | B58B30C | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30C | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30A | 06.2017-06.2020 | |
| BMW | 6 Gran Turismo (G32) 640 i xDrive | B58B30C | 06.2017-06.2020 | |
| BMW | 7 (G11, G12) 730 d | B57D30A | 07.2015-06.2020 | |
| BMW | 7 (G11, G12) 730 d xDrive | B57D30A | 09.2015-06.2020 | |
| BMW | 7 (G11, G12) 730 d, Ld | B57D30A | 09.2015-06.2020 | |
| BMW | 7 (G11, G12) 730 d, Ld xDrive | B57D30A | 09.2015-06.2020 | |
| BMW | 7 (G11, G12) 730 i, Li | B48B20B | 11.2015-02.2019 | |
| BMW | 7 (G11, G12) 740 d, Ld xDrive | B57D30B | 11.2015-06.2020 | |
| BMW | 7 (G11, G12) 740 e, Le | B48B20B | 07.2016-02.2019 | |
| BMW | 7 (G11, G12) 740 i, Li | B58B30A | 07.2015-02.2019 | |
| BMW | 7 (G11, G12) 740 Le xDrive | B48B20B | 07.2016-02.2019 | |
| BMW | 7 (G11, G12) 740 Li xDrive | B58B30A | 03.2016-02.2019 | |
| BMW | 7 (G11, G12) 750 d, Ld xDrive | B57D30C | 07.2016-10.2020 | |
| BMW | 8 Convertible (G14, F91) 840 d xDrive | B57D30B | 11.2018-10.2020 | |
| BMW | 8 Coupe (G15, F92) 840 d xDrive | B57D30B | 07.2018-10.2020 | |
| BMW | 8 Gran Coupe (G16, F93) 840 d xDrive | B57D30B | 07.2019-10.2020 | |
| BMW | X3 (G01, F97, G08) sDrive 20 i | B48B20A | 12.2017- | |
| BMW | X3 (G01, F97, G08) sDrive 20 i 1.6 | B48B16A | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20A | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20B | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 d | B57D30A | 08.2017-06.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 30 d | B57D30A | 12.2017-06.2020 | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B46B20B | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive M40 d | B57D30B | 08.2018-06.2020 | |
| BMW | X3 (G01, F97, G08) xDrive M40 i | B58B30A | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive M40 i | B58B30A | 09.2018-08.2019 | |
| BMW | X3 Van (G01) xDrive M40 i | B58B30A | 08.2017-08.2019 | |
| BMW | X4 (G02, F98) xDrive 20 i | B48B20A | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 30 d | B57D30A | 04.2018-06.2020 | |
| BMW | X4 (G02, F98) xDrive 30 d | B57D30A | 09.2018-06.2020 | |
| BMW | X4 (G02, F98) xDrive 30 i | B46B20B | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 30 i | B48B20B | 04.2018- | |
| BMW | X4 (G02, F98) xDrive M40 d | B57D30B | 04.2018-06.2020 | |
| BMW | X4 (G02, F98) xDrive M40 i | B58B30A | 04.2018-08.2019 | |
| BMW | X4 (G02, F98) xDrive M40 i | B58B30A | 04.2018- | |
| BMW | X5 (G05, F95) xDrive 30 d | B57D30A | 08.2018-07.2020 | |
| BMW | X5 (G05, F95) xDrive 30 d | B57D30A | 08.2018-07.2020 | |
| BMW | X5 (G05, F95) xDrive M 50 d | B57D30C | 08.2018-03.2023 | |
| BMW | X5 Van (G05) xDrive 30 d | B57D30A | 11.2019-03.2023 | |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 | |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 | |
| BMW | X6 (G06, F96) xDrive 30 d | B57D30A | 08.2019-07.2020 | |
| BMW | X6 (G06, F96) xDrive M 50 d | B57D30C | 08.2019-03.2023 | |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019- | |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019-08.2020 | |
| BMW | X7 (G07) xDrive 30 d | B57D30A | 03.2019- | |
| BMW | X7 (G07) xDrive M 50 d | B57D30C | 03.2019- |
