A01022S
Code: A01022S
Category: Alternators
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

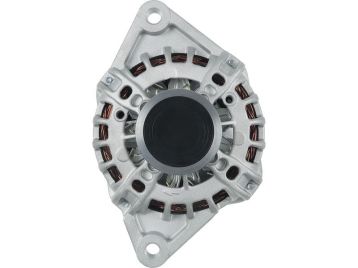

Brand new AS-PL Alternator
Size a: 40.00 mm
Size b: 14.00 mm
Size c: 81.00 mm
Amp.: 150 A
D.1: 10.50
D.2: 10.50
D.3: 10.50
Pulley: AFP
L.1: 182.00 mm
Plug: PL_9104
G: 7
O.d.1: 55.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| AZMT-49-035-3216 | A.z. Meisterteile | |
| ANM100333 | Andel | |
| UD104211A | As-pl | |
| 1986A01239 | Bosch | |
| F000BL07CU | Bosch | |
| G104057 | BTS Turbo | |
| 40783 | Cevam | |
| 2183561502 | Dri | |
| 58074 | Eai | |
| 28-8690 | Elstock | |
| 209768A | Era | |
| FT11410 | Fast | |
| H55101375G | Hoffer | |
| 5802407293 | Iveco | |
| K5802407293 | Iveco | |
| ALB9196 | Krauf | |
| 556232RI | Kuhner | |
| 556232RIS | Kuhner | |
| LRA04581 | Lucas | |
| LRA4581 | Lucas | |
| 55101375G | Meat & Doria | |
| 505.927.150.010 | Psh | |
| 505.927.150.280 | Psh | |
| A147.479 | Psh | |
| A155.178 | Psh | |
| A12BH1404 | Sidat | |
| A12BH1404A2 | Sidat | |
| FI8157 | Snra | |
| 074ST58 | Startcar | |
| AL04567 | Tmi | |
| 831015012 | Triscan | |
| 21696N | Wai / Transpo | |
| WAL01413 | Walker | |
| 5481FB0055542 | Frankberg |
Usage
| Brand | Model | Type | Year | Note |
| FIAT | DUCATO Bus (250_) 140 Multijet 2,3 D | F1AGL4113 | 05.2019- | |
| FIAT | DUCATO Platform/Chassis (250_) 140 Multijet 2,3 D | F1AGL4113 | 05.2019- | |
| FIAT | DUCATO Van (250_) 120 Multijet 2,3 D | F1AE0481D | 07.2006- | |
| FIAT | DUCATO Van (250_) 120 Multijet 2,3 D | F1AGL4114 | 07.2006- | |
| FIAT | DUCATO Van (250_) 140 Multijet 2,3 D | F1AGL4113 | 05.2019- |
