A01186S
Code: A01186S
Category: Alternators
Manufacturer: Bosch
Supplier: As-pl
: F000BL070F
STANDARD LINE
Brand new AS-PL Alternator

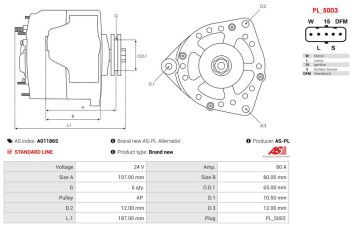

Size a: 107.00 mm
Size b: 80.00 mm
Amp.: 80 A
D.1: 10.50
D.2: 12.00
D.3: 12.00
Pulley: AP
L.1: 187.00 mm
Plug: PL_5003
G: 6
O.d.1: 65.00 mm
Voltage: 24 v
Reference number
| Code | Manufacturer | ||||
| UD17424A | As-pl | ||||
| F000BL070F | Bosch | ||||
| F000BL070G | Bosch | ||||
| |||||
| 556816RI | Kuhner | ||||
| 1000750099 | Weichai | ||||
Usage
| Brand | Model | Type | Year | Note |
| Shacman | DELONG F3000 6×4 | WP10.375E50 | 01.2009-12.2021 | |
| Shacman | DELONG X3000 6×4 | WP12.430E50 | 01.2013- | |
| Shacman | DELONG X6000 6×4 | WP13.550E50 | 01.2021- | |
| Sinotruk | HOWO T7H 6×4 | WP13.530E50 | 01.2013- | |
| Sinotruk | SITRAK C7H 6×4 | WP13.550E50 | 01.2013- |
