A01247S

Code: A01247S

Category: Alternators

Manufacturer: Bosch

Supplier: As-pl

: 0124655304

STANDARD LINE

Brand new AS-PL Alternator

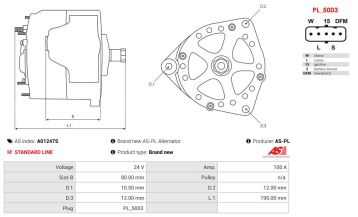

Size b: 80.00 mm

Amp.: 100 A

D.1: 10.50

D.2: 12.00

D.3: 12.00

Pulley: n/a

L.1: 195.00 mm

Plug: PL_5003

Voltage: 24 v

Reference number

Code	Manufacturer
UD103384A	As-pl
0124655304	Bosch
012465599C	Bosch
G100785	BTS Turbo
G101102	BTS Turbo
G105175	BTS Turbo
1377860	Daf
1377860R	Daf
1697023	Daf
1697023R	Daf
1697322	Daf
1697322R	Daf
2165380R	Daf
11.209.617	Iskra / Letrika
AAN5406	Iskra / Letrika
IA9465	Iskra / Letrika
72446643	Mahle
MG809	Mahle
860809AM	Prestolite
860809GB	Prestolite
906.501.110.014	Psh
906.501.110.280	Psh
A135.927	Psh
A146.596	Psh
A24BH0094	Sidat
A24BH0094AS	Sidat
WG2044007	Wilmink Group

Usage

Brand	Model	Type	Year	Note
BOVA	Futura FHD 10, FHD 12, FHD 13, FLD 12, FLD 13	XE250C	09.2001-09.2006
BOVA	Synergy DD 130, DD 138	XE355C	09.2004-
DAF	95 XF FA 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FA 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FA 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FA 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FA 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FA 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FA 95 XF 530	VF390M	01.1997-09.2002
DAF	95 XF FAC 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FAC 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FAC 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FAC 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FAC 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FAC 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FAD 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FAD 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FAD 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FAD 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FAR 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FAR 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FAR 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FAR 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FAR 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FAR 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FAR 95 XF 530	VF390M	01.1997-09.2002
DAF	95 XF FAS 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FAS 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FAS 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FAS 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FAS 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FAS 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FAS 95 XF 530	VF390M	01.1997-09.2002
DAF	95 XF FAT 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FAT 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FAT 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FAT 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FAT 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FAT 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FT 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FT 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FT 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FT 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FT 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FT 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FT 95 XF 530	VF390M	01.1997-09.2002
DAF	95 XF FTG 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FTG 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FTG 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FTG 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FTG 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FTG 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FTR 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FTR 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FTR 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FTR 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FTR 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FTR 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FTS 95 XF 380	XE280C	01.1997-09.2002
DAF	95 XF FTS 95 XF 380	XF280M	01.1997-09.2002
DAF	95 XF FTS 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FTS 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FTS 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FTS 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FTT 95 XF 430	XE315C	01.1997-09.2002
DAF	95 XF FTT 95 XF 430	XF315M	01.1997-09.2002
DAF	95 XF FTT 95 XF 480	XE355C	01.1997-09.2002
DAF	95 XF FTT 95 XF 480	XF355M	01.1997-09.2002
DAF	95 XF FTT 95 XF 530	VF390M	01.1997-09.2002
DAF	CF 75 FA 75.250	PE183C	01.2001-05.2013
DAF	CF 75 FA 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FA 75.250	PR183S	10.2006-05.2013
DAF	CF 75 FA 75.250	PR183S	10.2006-05.2013
DAF	CF 75 FA 75.310	PE228C	01.2001-05.2013
DAF	CF 75 FA 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FA 75.310	PR228S	10.2006-05.2013
DAF	CF 75 FA 75.310	PR228S	10.2006-05.2013
DAF	CF 75 FA 75.360	PE265C	01.2001-05.2013
DAF	CF 75 FA 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FA 75.360	PR265S	10.2006-05.2013
DAF	CF 75 FA 75.360	PR265S	10.2006-05.2013
DAF	CF 75 FAD 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FAD 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAD 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FAG 75.250, FAN 75.250	PE183C	01.2001-05.2013
DAF	CF 75 FAG 75.250, FAN 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FAG 75.250, FAN 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FAG 75.310, FAN 75.310	PE228C	01.2001-05.2013
DAF	CF 75 FAG 75.310, FAN 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAG 75.310, FAN 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAG 75.360, FAN 75.360	PE265C	01.2001-05.2013
DAF	CF 75 FAG 75.360, FAN 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FAG 75.360, FAN 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FAR 75.250, FAS 75.250	PE183C	01.2001-05.2013
DAF	CF 75 FAR 75.250, FAS 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FAR 75.250, FAS 75.250	PR183S	10.2006-05.2013
DAF	CF 75 FAR 75.310, FAS 75.310	PE228C	01.2001-05.2013
DAF	CF 75 FAR 75.310, FAS 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAR 75.310, FAS 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAR 75.360, FAS 75.360	PE265C	01.2001-05.2013
DAF	CF 75 FAR 75.360, FAS 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FAR 75.360, FAS 75.360	PR265S	10.2006-05.2013
DAF	CF 75 FAT 75.250	PE183C	01.2001-05.2013
DAF	CF 75 FAT 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FAT 75.250	PR183S	10.2006-05.2013
DAF	CF 75 FAT 75.310	PE228C	01.2001-05.2013
DAF	CF 75 FAT 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FAT 75.310	PR228S	10.2006-05.2013
DAF	CF 75 FAT 75.360	PE265C	01.2001-05.2013
DAF	CF 75 FAT 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FAT 75.360	PR265S	10.2006-05.2013
DAF	CF 75 FT 75.250	PE183C	01.2001-05.2013
DAF	CF 75 FT 75.250	PR183S	01.2001-05.2013
DAF	CF 75 FT 75.250	PR183S	10.2006-05.2013
DAF	CF 75 FT 75.310	PE228C	01.2001-05.2013
DAF	CF 75 FT 75.310	PR228S	01.2001-05.2013
DAF	CF 75 FT 75.310	PR228S	10.2006-05.2013
DAF	CF 75 FT 75.360	PE265C	01.2001-05.2013
DAF	CF 75 FT 75.360	PR265S	01.2001-05.2013
DAF	CF 75 FT 75.360	PR265S	10.2006-05.2013
DAF	CF 85 FA 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FA 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FA 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FA 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FAC 85.340	XE250C	12.2005-05.2013
DAF	CF 85 FAC 85.380	XE280C	12.2005-05.2013
DAF	CF 85 FAC 85.430	XE315C	12.2005-05.2013
DAF	CF 85 FAC 85.480	XE355C	12.2005-05.2013
DAF	CF 85 FAD 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FAD 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FAD 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FAD 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FAG 85.340, FAN 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FAG 85.380, FAN 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FAG 85.430, FAN 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FAG 85.480, FAN 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FAR 85.340, FAS 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FAR 85.380, FAS 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FAR 85.430, FAS 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FAR 85.480, FAS 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FAT 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FAT 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FAT 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FAT 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FAX 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FAX 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FAX 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FAX 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FT 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FT 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FT 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FT 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FTG 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FTG 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FTG 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FTG 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FTP 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FTP 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FTP 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FTP 85.480	XF355M	01.2001-05.2013
DAF	CF 85 FTS 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FTS 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FTS 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FTS 85.480	XE355C	01.2001-05.2013
DAF	CF 85 FTT 85.340	XE250C	01.2001-05.2013
DAF	CF 85 FTT 85.380	XE280C	01.2001-05.2013
DAF	CF 85 FTT 85.430	XE315C	01.2001-05.2013
DAF	CF 85 FTT 85.480	XE355C	01.2001-05.2013
DAF	XF 95 FA 95.380	XE280C	09.2002-12.2006
DAF	XF 95 FA 95.430	XE315C	09.2002-12.2006
DAF	XF 95 FA 95.480	XE355C	09.2002-12.2006
DAF	XF 95 FA 95.530	XE390C	09.2002-12.2006
DAF	XF 95 FAD 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FAD 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FAD 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FAD 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FAK 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FAK 95.380	XF280M	01.2002-12.2006
DAF	XF 95 FAK 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FAK 95.430	XF315M	01.2002-12.2006
DAF	XF 95 FAK 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FAK 95.480	XF355M	01.2002-12.2006
DAF	XF 95 FAK 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FAN 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FAN 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FAN 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FAN 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FAR 95.380	XE280C	09.2002-12.2006
DAF	XF 95 FAR 95.430	XE315C	09.2002-12.2006
DAF	XF 95 FAR 95.480	XE355C	09.2002-12.2006
DAF	XF 95 FAR 95.530	XE390C	09.2002-12.2006
DAF	XF 95 FAS 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FAS 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FAS 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FAS 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FAT 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FAT 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FAT 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FAT 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FT 95.380	XE280C	09.2002-12.2006
DAF	XF 95 FT 95.430	XE315C	09.2002-12.2006
DAF	XF 95 FT 95.480	XE355C	09.2002-12.2006
DAF	XF 95 FT 95.530	XE390C	09.2002-12.2006
DAF	XF 95 FTG 95.380	XE280C	09.2002-12.2006
DAF	XF 95 FTG 95.430	XE315C	12.2005-12.2006
DAF	XF 95 FTG 95.480	XE355C	12.2005-12.2006
DAF	XF 95 FTG 95.530	XE390C	09.2002-12.2006
DAF	XF 95 FTM 95.380	XE280C	12.2005-12.2006
DAF	XF 95 FTM 95.430	XE315C	12.2005-12.2006
DAF	XF 95 FTM 95.480	XE355C	12.2005-12.2006
DAF	XF 95 FTM 95.530	XE390C	09.2002-12.2006
DAF	XF 95 FTP 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FTP 95.380	XF280M	01.2002-12.2006
DAF	XF 95 FTP 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FTP 95.430	XF315M	01.2002-12.2006
DAF	XF 95 FTP 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FTP 95.480	XF355M	01.2002-12.2006
DAF	XF 95 FTP 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FTR 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FTR 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FTR 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FTR 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FTS 95.380	XE280C	01.2002-12.2006
DAF	XF 95 FTS 95.430	XE315C	01.2002-12.2006
DAF	XF 95 FTS 95.480	XE355C	01.2002-12.2006
DAF	XF 95 FTS 95.530	XE390C	09.2002-03.2006
DAF	XF 95 FTT 95.380	XE280C	01.2002-03.2006
DAF	XF 95 FTT 95.430	XE315C	01.2002-03.2006
DAF	XF 95 FTT 95.480	XE355C	01.2002-03.2006
DAF	XF 95 FTT 95.530	XE390C	09.2002-03.2006
TEMSA	AVENUE AVENUE LF	PR228S	09.2010-

Filters

Supplier

Manufacturer

Size a (mm)

Size b (mm)

Size c (mm)

Amp. (A)

B+

E.1 (mm)

E.2 (mm)

E.3 (mm)

E.4 (mm)

Pulley

L.1 (mm)

G

No./mount. holes

O.d.1 (mm)

O.d.2 (mm)

Power (Kw)

Voltage (v)

W.1

Start / stop

Com id

A01247S

Reference number

Usage

Contact

Suport

Menu

Menu
