A1090S
Code: A1090S
Category: Alternators
Manufacturer: DELCO
Supplier: As-pl
: 8400080
STANDARD LINE

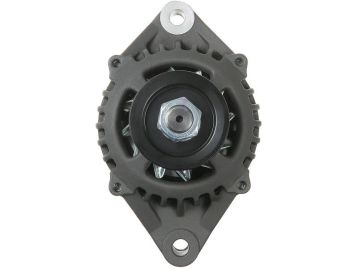

Brand new AS-PL Alternator
Size a: 63.00 mm
Size b: 31.00 mm
Amp.: 50 A
D.1: 10.50
D.2: 10.50
Pulley: AP
L.1: 155.00 mm
Plug: PL_2602
G: 4
O.d.1: 59.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| CGB-13210 | Ainde | |||||||
| A1090S | As-pl | |||||||
| ||||||||
| UD19451A | As-pl | |||||||
| CAL60130AS | Casco | |||||||
| 8400080 | DELCO | |||||||
| ||||||||
| 8400271 | DELCO | |||||||
| 101-05113 | Dixie | |||||||
| ALD8408 | Krauf | |||||||
| 554568RI | Kuhner | |||||||
| 50-897755T | Mercury | |||||||
| 897755T | Mercury | |||||||
| 8M0063970 | Mercury | |||||||
| 975.514.050.030 | Psh | |||||||
| 20109031BN | Real | |||||||
| 240-05105 | Robert's | |||||||
| 2060130.0 | Sando | |||||||
| 8488N | Wai / Transpo | |||||||
| 70-01-8488 | Wilson | |||||||
| ALT40257 | Woodauto | |||||||
Usage
| Brand | Model | Type | Year | Note |
| Mariner | 115 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 | |
| Mariner | 75 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 | |
| Mariner | 90 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 | |
| MERCURY | 115 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 | |
| MERCURY | 75 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 | |
| MERCURY | 90 HP 1.7 Four Stroke | [106CI] | 01.2007-12.2007 |
