A1097S


Code: A1097S

Category: Alternators

Manufacturer: DELCO

Supplier: As-pl

: 10479926

STANDARD LINE

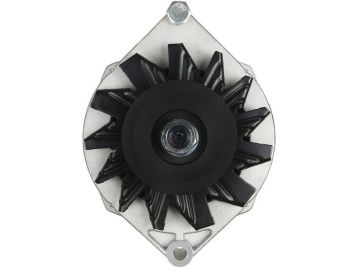

Brand new AS-PL Alternator



Size a: 77.00 mm

Size b: 51.00 mm

Amp.: 130 A

D.1: M10x1.5

D.2: 10.00

Pulley: AP

L.1: 172.00 mm

Plug: PL_9006

G: 1

O.d.1: 56.00 mm

O.d.2: 82.00 mm

Voltage: 12 v

W.1: 12.50



Reference number

CodeManufacturer
UD21264AAs-pl
111713Cargo
CAL60109ASCasco
CAL60109RSCasco
130665ZCase
130672ZCase
146487C91Case
A130665ZCase
A130672ZCase
A163085Case
A181766Case
36044746RXCummins
3604474RXCummins
3903231Cummins
3909981Cummins
3909982Cummins
10459366DELCO
10459367DELCO
10479924 DELCO
10479925 DELCO
10479926 DELCO
10479927 DELCO
10479928 DELCO
10479929 DELCO
10479930 DELCO
10497083 DELCO
1101194 DELCO
1101205 DELCO
1101308 DELCO
1101439 DELCO
1101440 DELCO
1102551 DELCO
1105085 DELCO
1105354 DELCO
1105356 DELCO
1105366 DELCO
1105418 DELCO
1105451 DELCO
1105479 DELCO
1105481 DELCO
1105497 DELCO
1105509 DELCO
1105513 DELCO
1105515 DELCO
1105535 DELCO
1105536 DELCO
1105538 DELCO
1105539 DELCO
1105540 DELCO
1105549 DELCO
1105553 DELCO
1105560 DELCO
1105570 DELCO
1105571 DELCO
1105579 DELCO
1105587 DELCO
1105604 DELCO
1105605 DELCO
1105609 DELCO
1105639 DELCO
1105681 DELCO
1105749DELCO
321667 DELCO
AT117390John Deere
RE501112John Deere
TY6751John Deere
ALD2713Krauf
553925RIKuhner
89213431Powermax
835.028.108.030Psh
835.028.108.510Psh
20109901BNReal
20109901RCReal
240-15100Robert's
2060109.0Sando
2060109.2Sando
7853NWai / Transpo
90-01-3151Wilson
90-01-3151NWilson
ALT40232Woodauto


Usage

BrandModelTypeYearNote
Agco344001.1998-12.2003
Agco364001.1998-12.2003
Agco444001.1998-12.2003
Agco464001.1998-12.2003
Agco6124[6-359]01.1994-12.1997
Agco6125[6-359]01.1993-12.1997
Agco6144[6-359]01.1994-12.1997
Agco6145[6-359]01.1993-12.1997
Agco6175[6-505]01.1993-12.1999
Agco6195[6-505]01.1993-12.1999
Agco6215[6-505]01.1994-12.1999
Agco9130[6-374]01.1991-12.1993
Agco9150[6-374]01.1991-12.1993
Agco9170[6-584]01.1991-12.1993
Agco9190[6-584]01.1991-12.1993
Agco9630[6-374]01.1993-12.1995
Agco9650[6-374]01.1993-12.1996
Agco9670[6-584]01.1994-12.1996
Agco9690[6-584]01.1994-12.1995
AgcoF3 3.3[433T]01.1986-12.1987
AgcoL3[649]01.1986-12.1987
AgcoL3[670]01.1986-12.1987
AgcoM3[649]01.1986-12.1987
AgcoM3[670]01.1986-12.1987
AgcoR40[BF6L913C]01.1988-12.1991
AgcoR4201.1992-12.1997
AgcoR42[BF6L913C]01.1992-12.1997
AgcoR5[670]01.1986-12.1987
AgcoR50[BF6L913C]01.1987-12.1991
AgcoR5201.1992-12.1997
AgcoR52[BF6L913C]01.1992-12.1997
AgcoR6[670]01.1986-12.1987
AgcoR60[8-817]01.1987-12.1991
AgcoR6201.1992-12.1997
AgcoR62[BF8L513]01.1992-12.1997
AgcoR7[685]01.1986-12.1986
AgcoR70[BF8L513]01.1987-12.1991
AgcoR72[BF8L513]01.1992-12.1997
Allis ChalmersF2[292]01.1981-12.1982
Allis ChalmersF2[4-200]01.1981-12.1982
Allis ChalmersF3[4-200]01.1983-12.1985
Allis ChalmersF3[433]01.1983-12.1985
Allis ChalmersK2[4-200]01.1981-12.1985
Allis ChalmersN5[6-426]01.1978-12.1986
Allis ChalmersN6[6-426]01.1978-12.1986
Allis ChalmersN7[685]01.1979-12.1986
CASE1480[D-436]01.1978-12.1985
CASE1480[D-466]01.1978-12.1985
CASE1640 7.6[DT-466]01.1986-12.1993
CASE1680 7.6[DT-466]01.1985-12.1992
CASE1896[6-359]01.1984-12.1989
CASE2094[6-504]01.1983-12.1984
CASE2096[6-359]01.1984-12.1990
CASE2294[6-504]01.1983-12.1987
CASE2394[6-504]01.1983-12.1987
CASE2590[6-504]01.1978-12.1983
CASE2594[6-504]01.1983-12.1987
CASE3294[6-504]01.1983-12.1984
CASE3394[6-504]01.1985-12.1988
CASE3594[6-504]01.1985-12.1988
CASE409601.1984-12.1992
CASE4494[6-504]01.1984-12.1987
CASE4690[6-504]01.1984-12.1990
CASE4694[6-504]01.1984-12.1987
CASE485[3-179]01.1985-12.1990
CASE4894[6-674]01.1984-12.1987
CASE4894[8-866]01.1984-12.1990
CASE4994[8-866]01.1984-12.1987
CASE6000[225]01.1984-12.1992
CASE6000[390]01.1984-12.1992
CASE6500[225]01.1985-12.1992
CASE6500[390]01.1985-12.1992
CASE9110[6-504]01.1986-12.1990
CASE9130[6-504]01.1986-12.1989
CUMMINSB SERIES01.1980-12.1990
CUMMINSC Series01.1980-12.1990
CUMMINSL Series 10.001.1992-12.1993
CUMMINSL Series 14.001.1992-12.1993
DETROITEngine 8.2[500CI]01.1988-12.1998
Deutz-allis9130[BF6L913C]01.1989-12.1992
Deutz-allis9150[BF6L913C]01.1989-12.1992
Deutz-allis9170[6-584]01.1989-12.1992
Deutz-allis9190[6-584]01.1989-12.1992
Deutz-allisF301.1986-12.1989
Deutz-allisL301.1986-12.1989
Deutz-allisM301.1986-12.1989
Deutz-allisR4001.1986-12.1993
Deutz-allisR4201.1986-12.1993
Deutz-allisR501.1986-12.1993
Deutz-allisR5001.1986-12.1993
Deutz-allisR5201.1986-12.1993
Deutz-allisR601.1986-12.1993
Deutz-allisR6001.1986-12.1993
Deutz-allisR6201.1986-12.1993
Deutz-allisR701.1986-12.1993
Deutz-allisR7001.1986-12.1993
Deutz-allisR7201.1986-12.1993
ElginEagle 2.4[C240]01.1989-12.1993
ElginFalcon[4039]01.1979-12.1989
ElginPelican[4039]01.1979-12.1995
ElginPelican SE Series01.1985-12.1995
ElginRear Sweeper[C-240]01.1989-12.1993
FORD276[4-239]01.1986-12.1992
FORD9030[4-268]01.1990-12.1998
Grimmer Schmidt800D01.1997-12.2007
International3088[D-358]01.1981-12.1985
International3288[D-358]01.1981-12.1985
International3388[DT-436]01.1979-12.1982
International3488[D-466]01.1981-12.1984
International3588 7.6[DT-466]01.1978-12.1981
International3688[D-466]01.1981-12.1984
International3688[D-466]01.1985-12.1985
International3788 7.6[DT-466]01.1980-12.1981
International5088[D-436]01.1981-12.1984
International5088[D-436]01.1985-12.1985
International5288 7.6[DT-466]01.1981-12.1987
International5488 7.6[DT-466]01.1981-12.1987
International6388[DT-436]01.1981-12.1984
International6588 7.6[DT-466]01.1981-12.1984
International6788 7.6[DT-466]01.1981-12.1984
International7088[DT-436]01.1985-12.1987
International7288 7.6[DT-466]01.1985-12.1985
International7388 7.6[DTI-466]01.1982-12.1984
International7488 7.6[DT-466]01.1985-12.1985
International7588[V-800]01.1982-12.1984
International7788[V-800]01.1982-12.1984
JOHN DEERE344E 4.5[4045]01.1988-12.1995
JOHN DEERE444E 4.5[4045]01.1988-12.1995
JOHN DEERE450G01.1993-12.2003
JOHN DEERE450G 4.5[4-276]01.1987-12.1990
JOHN DEERE450G 4.5[4045]01.1990-12.2002
JOHN DEERE455G01.1993-12.2003
JOHN DEERE455G 4.5[4045]01.1988-12.2003
JOHN DEERE544E01.1988-12.1995
JOHN DEERE544E 5.9[6059]01.1988-12.1993
JOHN DEERE544E TC 5.9[6-359]01.1988-12.1990
JOHN DEERE544E TC 5.9[6059]01.1990-12.1993
JOHN DEERE544EH[6-359T]01.1987-12.1992
JOHN DEERE544EH[6059T]01.1987-12.1992
JOHN DEERE544ER[6-359T]01.1987-12.1992
JOHN DEERE544ER[6059T]01.1987-12.1992
JOHN DEERE550G 4.5[4-276]01.1987-12.1990
JOHN DEERE550G 4.5[4045]01.1990-12.2002
JOHN DEERE555G01.1987-12.1997
JOHN DEERE555G 4.5[4-276]01.1987-12.1990
JOHN DEERE555G 4.5[4045]01.1990-12.2004
JOHN DEERE624E 6.8[6068]01.1988-12.1993
JOHN DEERE644E 7.6[6076]01.1987-12.1993
JOHN DEERE644ER 7.6[6076]01.1987-12.1993
JOHN DEERE644EZ 7.6[6076]01.1987-12.1993
JOHN DEERE650G 4.5[4-276]01.1987-12.1990
JOHN DEERE650G 4.5[4045]01.1990-12.2002
JOHN DEEREEngine[4039]
JOHN DEEREEngine[4045]
JOHN DEEREEngine[6059]
JOHN DEEREEngine[6068]
JOHN DEEREEngine[6076]
JOHN DEEREEngine[6101]
JOHN DEEREEngine 12.5[6125AFM01]
JOHN DEEREEngine 12.5[6125AFM75]01.2004-12.2007
JOHN DEEREEngine 12.5[6125SFM75]01.2004-12.2007
JOHN DEEREEngine 3.9[4039DFM]
JOHN DEEREEngine 4.5[4045TFM]
JOHN DEEREEngine 6.8[6068DFM]
JOHN DEEREEngine 6.8[6068TFM]
JOHN DEEREEngine 7.6[6076AFM30]
JOHN DEEREEngine 7.6[6076AFM]
Macdon Industries292001.1995-12.2005
Macdon Industries920001.1995-12.2005
MASSEY FERGUSON9240[6-505]01.1995-12.1998
MASSEY FERGUSONMF-9240[6-505]01.1995-12.1998
Melroe3440
Melroe3630 2.1
Melroe3640
NEW HOLLAND9030[4-268]01.1990-12.1997
SteigerPuma 9110 8.3[6CTA]01.1986-12.1992
SteigerWildcat 9130 8.3[6CTA]01.1986-12.1992
TIMBERJACK35001.1968-12.1978
TIMBERJACK380C 5.901.1996-12.2006
TIMBERJACK450C 5.901.1996-12.2006
TIMBERJACK480C 5.901.1996-12.2006
TIMBERJACK61001.1995-12.2005
Versatile276[4-239]01.1986-12.1990
Versatile470001.1986-12.1989
Versatile475001.1989-12.1993
White100[6-359]01.1988-12.1990
White120[6-359]01.1988-12.1990
White125[6-359]01.1991-12.1992
White140[6-359]01.1988-12.1990
White145[6-359]01.1991-12.1992
White170[6-505]01.1991-12.1992
White195[6-505]01.1991-12.1992
White2500[6-374]01.1992-12.1992
White2600[6-505]01.1992-12.1992
White60[4-239]01.1989-12.1991
White80[4-239]01.1989-12.1991
