A1105S
Code: A1105S
Category: Alternators
Manufacturer: DELCO
Supplier: As-pl
: 8600043
STANDARD LINE

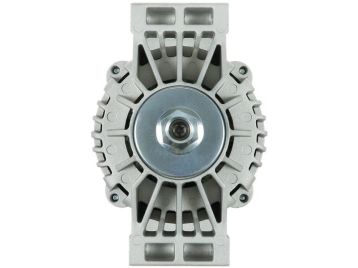

Brand new AS-PL Alternator
Size c: 108.00 mm
Amp.: 160 A
D.1: 11.00
D.2: 11.00
D.3: 12.00
D.4: 12.00
E.1: 80.00 mm
E.2: 80.00 mm
Pulley: n/a
L.1: 25.00 mm
Plug: PL_4302
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||||||||||||||
| UD30057A | As-pl | |||||||||||||||||||
| 114534 | Cargo | |||||||||||||||||||
| CAL60144AS | Casco | |||||||||||||||||||
| CAL60144GS | Casco | |||||||||||||||||||
| 3972736 | Cummins | |||||||||||||||||||
| 5282830 | Cummins | |||||||||||||||||||
| 528283000 | Cummins | |||||||||||||||||||
| 19020900 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 19020902 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600043 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600081 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600096 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600100 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600143 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600166 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600167 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600168 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600402 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8600403 | DELCO | |||||||||||||||||||
| 8600404 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8700008 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8700012 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| 8700013 | DELCO | |||||||||||||||||||
| ||||||||||||||||||||
| ALD4534 | Krauf | |||||||||||||||||||
| 20109441BN | Real | |||||||||||||||||||
| 20109441OE | Real | |||||||||||||||||||
| 2060144.0 | Sando | |||||||||||||||||||
| 2060144.1 | Sando | |||||||||||||||||||
| 8707N | Wai / Transpo | |||||||||||||||||||
| 90-01-4569 | Wilson | |||||||||||||||||||
| 90-01-4569N | Wilson | |||||||||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| Blue Bird | All American FE 7.2 | [C7] | 01.2004-12.2009 | |
| Blue Bird | All American FE 8.3 | [ISC] | 01.2003-12.2005 | |
| Blue Bird | All American RE 7.2 | [C7] | 01.2004-12.2010 | |
| Blue Bird | All American RE 8.3 | [ISC] | 01.2003-12.2008 | |
| Blue Bird | Commercial Bus 7.2 | [C7] | 01.2004-12.2007 | |
| Blue Bird | Commercial Bus 8.3 | [ISC] | 01.2003-12.2007 | |
| Blue Bird | SHL All American 7.2 | [C7] | 01.2004-12.2004 | |
| Blue Bird | SHL Commercial 7.2 | [C7] | 01.2004-12.2007 | |
| Blue Bird | SHL Commercial 8.3 | [ISC] | 01.2002-12.2004 | |
| Blue Bird | Vision 7.2 | [C7] | 01.2004-12.2010 | |
| Blue Bird | Wanderlodge 8.9 | [ISL] | 01.2004-12.2007 | |
| FREIGHTLINER | Argosy 15.8 | [C16] | 01.2002-12.2003 | |
| FREIGHTLINER | B2 Chassis 5.9 | [ISB] | 01.2006-12.2008 | |
| FREIGHTLINER | B2 Chassis 6.4 | [MBE906] | 01.2005-12.2008 | |
| FREIGHTLINER | B2 Chassis 7.2 | [C7] | 01.2005-12.2008 | |
| FREIGHTLINER | Business Class M2 100 11.1 | [C11] | 01.2003-12.2010 | |
| FREIGHTLINER | Business Class M2 100 12.5 | [C13] | 01.2003-12.2010 | |
| FREIGHTLINER | Business Class M2 100 4.3 | [MBE904] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 100 6.4 | [MBE906] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 100 7.2 | [C7] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 100 7.2 | [MBE926] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 100 8.3 | [ISC] | 01.2007-12.2012 | |
| FREIGHTLINER | Business Class M2 100 8.8 | [C9] | 01.2003-12.2010 | |
| FREIGHTLINER | Business Class M2 106 11.1 | [C11] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 12.5 | [C13] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 12.8 | [MBE4000] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 4.3 | [MBE904] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 6.4 | [MBE906] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 6.7 | [ISB] | 01.2007-12.2007 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [C7] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [MBE926] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 8.3 | [ISC] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 106 8.8 | [C9] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 11.1 | [C11] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 12.5 | [C13] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 12.8 | [MBE4000] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 4.3 | [MBE904] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 6.4 | [MBE906] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 6.7 | [ISB] | 01.2007-12.2007 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [C7] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [MBE926] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 8.3 | [ISC] | 01.2003-12.2007 | |
| FREIGHTLINER | Business Class M2 112 8.8 | [C9] | 01.2003-12.2007 | |
| FREIGHTLINER | Century Class 11.1 | [C11] | 01.2005-12.2007 | |
| FREIGHTLINER | Century Class 12.5 | [C13] | 01.2004-12.2010 | |
| FREIGHTLINER | Century Class 14.6 | [C15] | 01.2002-12.2003 | |
| FREIGHTLINER | Century Class 15.2 | [C15] | 01.2004-12.2010 | |
| FREIGHTLINER | MT45 6.7 | [ISB] | 01.2008-12.2012 | |
| FREIGHTLINER | MT55 6.7 | [ISB] | 01.2008-12.2012 | |
| FREIGHTLINER | XC Chassis 5.9 | [ISB] | 01.2002-12.2007 | |
| Ic Corp | 1000 SC 7.3 | [T444E] | 01.2003-12.2004 | |
| Ic Corp | 1652 SC 6.0 | [VT365] | 01.2005-12.2007 | |
| Ic Corp | 3000 6.0 | [VT365] | 01.2005-12.2007 | |
| Ic Corp | 3000 7.6 | [DT-466] | 01.2005-12.2006 | |
| Ic Corp | 3000 IC 6.0 | [VT365] | 01.2006-12.2007 | |
| Ic Corp | 3000 IC 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | 3200 6.0 | [VT365] | 01.2007-12.2007 | |
| Ic Corp | 3300 6.0 | [VT365] | 01.2005-12.2005 | |
| Ic Corp | 3300 7.6 | [DT-466] | 01.2005-12.2005 | |
| Ic Corp | 3800 7.3 | [T444E] | 01.2002-12.2003 | |
| Ic Corp | 3800 7.6 | [DT-466] | 01.2003-12.2003 | |
| Ic Corp | BE Commercial 6.0 | [VT365] | 01.2005-12.2007 | |
| Ic Corp | CE Commercial 6.0 | [VT365] | 01.2005-12.2007 | |
| Ic Corp | CE Commercial 7.3 | [T444E] | 01.2004-12.2004 | |
| Ic Corp | CE Commercial 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | CE Integrated 7.6 | [DT-466] | 01.2003-12.2007 | |
| Ic Corp | CE School Bus 7.3 | [T444E] | 01.2004-12.2004 | |
| Ic Corp | CE School Bus 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | FE School Bus 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | HC Integrated Commercial 6.0 | [VT365] | 01.2007-12.2008 | |
| Ic Corp | RE Commercial 6.0 | [VT365] | 01.2007-12.2007 | |
| Ic Corp | RE Commercial 7.3 | [T444E] | 01.2004-12.2004 | |
| Ic Corp | RE Commercial 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | RE Commercial 8.7 | [DT530] | 01.2004-12.2004 | |
| Ic Corp | RE Integrated 6.0 | [VT365] | 01.2005-12.2005 | |
| Ic Corp | RE Integrated 7.6 | [DT-466] | 01.2005-12.2005 | |
| Ic Corp | RE School Bus 6.0 | [VT365] | 01.2005-12.2008 | |
| Ic Corp | RE School Bus 7.3 | [T444E] | 01.2004-12.2004 | |
| Ic Corp | RE School Bus 7.6 | [DT-466] | 01.2004-12.2007 | |
| Ic Corp | RE School Bus 8.7 | [DT530] | 01.2004-12.2004 | |
| International | 1652 6.0 | [VT365] | 01.2004-12.2007 | |
| International | 1654 6.0 | [VT365] | 01.2004-12.2007 | |
| International | 4000 6.0 | [VT365] | 01.2006-12.2008 | |
| International | 4000 9.3 | [MaxxForce9] | 01.2007-12.2008 | |
| International | 4900 6.0 | [VT365] | 01.2006-12.2008 | |
| International | 4900 9.3 | [MaxxForce9] | 01.2007-12.2008 | |
| International | 5000 8.3 | [ISL] | 01.2007-12.2008 | |
| International | 5900 8.3 | [ISL] | 01.2007-12.2008 | |
| International | 7600 10.5 | [MaxxForce11] | 01.2008-12.2017 | |
| International | 7600 12.4 | [MaxxForce13] | 01.2008-12.2017 | |
| International | 8100 9.3 | [HT570] | 01.2004-12.2007 | |
| International | 8600 9.3 | [HT570] | 01.2004-12.2007 | |
| International | 9100 12.5 | [C13] | 01.2004-12.2010 | |
| International | 9900 12.5 | [C13] | 01.2004-12.2010 | |
| International | CF500 4.5 | [VT275] | 01.2005-12.2009 | |
| International | CF600 4.5 | [VT275] | 01.2005-12.2009 | |
| International | Durastar 6.0 | [VT365] | 01.2006-12.2008 | |
| International | Durastar 7.6 | [DT-466] | 01.2005-12.2008 | |
| International | Durastar 9.3 | [DT570] | 01.2006-12.2008 | |
| International | Lonestar 12.4 | [MaxxForce13] | 01.2012-12.2014 | |
| International | Lonestar 15.2 | [MaxxForce15] | 01.2011-12.2014 | |
| International | MXT 6.0 | [VT365] | 01.2007-12.2007 | |
| International | Paystar 12.4 | [MaxxForce13] | 01.2013-12.2014 | |
| International | Paystar 12.4 | [N13] | 01.2015-12.2015 | |
| International | Paystar 15.0 | [ISX15] | 01.2008-12.2015 | |
| International | Paystar 15.2 | [MaxxForce15] | 01.2011-12.2014 | |
| International | Prostar | [ISM10.8L] | 01.2010-12.2014 | |
| International | Prostar 10.5 | [MaxxForce11] | 01.2010-12.2014 | |
| International | Prostar 12.4 | [MaxxForce13] | 01.2008-12.2015 | |
| International | Prostar 12.4 | [N13] | 01.2014-12.2016 | |
| International | Prostar 12.5 | [C13] | 01.2008-12.2011 | |
| International | Prostar 15.0 | [ISX15] | 01.2008-12.2017 | |
| International | Prostar 15.0 | [Signature600] | 01.2009-12.2011 | |
| International | Prostar 15.2 | [MaxxForce15] | 01.2012-12.2014 | |
| International | RXT 6.0 | [VT365] | 01.2005-12.2008 | |
| International | RXT 6.4 | [MaxxForce7] | 01.2005-12.2008 | |
| International | RXT 7.6 | [MaxxForceDT] | 01.2008-12.2008 | |
| International | Terrastar 6.4 | [MaxxForce7] | 01.2010-12.2016 | |
| KENWORTH | C500 12.5 | [C13] | 01.2004-12.2007 | |
| KENWORTH | K360 6.7 | [ISB] | 01.2007-12.2007 | |
| KENWORTH | T2000 14.6 | [C15] | 01.2002-12.2003 | |
| KENWORTH | T2000 15.0 | [ISX15] | 01.2002-12.2007 | |
| KENWORTH | T2000 15.2 | [C15] | 01.2004-12.2007 | |
| KENWORTH | T300 8.3 | [ISC] | 01.2004-12.2008 | |
| MACK | CXP | [MP7] | 01.2006-12.2008 | |
| MACK | CXU | [MP7] | 01.2006-12.2008 | |
| MACK | CXU | [MP8] | 01.2007-12.2008 | |
| MACK | Pinnacle | [MP7] | 01.2006-12.2008 | |
| MACK | Pinnacle | [MP8] | 01.2007-12.2008 | |
| Peterbilt | 320 10.8 | [ISM] | 01.2005-12.2007 | |
| Peterbilt | 320 11.1 | [C11] | 01.2005-12.2007 | |
| Peterbilt | 320 12.5 | [C13] | 01.2004-12.2007 | |
| Peterbilt | 320 8.3 | [ISC] | 01.2005-12.2007 | |
| Peterbilt | 320 8.9 | [ISL] | 01.2005-12.2007 | |
| Peterbilt | 335 10.8 | [ISM] | 01.2005-12.2007 | |
| Peterbilt | 335 7.2 | [C7] | 01.2005-12.2007 | |
| Peterbilt | 335 8.3 | [ISC] | 01.2005-12.2007 | |
| STERLING | 7500 6.4 | [MBE906] | 01.2004-12.2007 | |
| STERLING | 8000 6.4 | [MBE906] | 01.2004-12.2007 | |
| STERLING | 8500 6.4 | [MBE906] | 01.2004-12.2007 | |
| STERLING | 9500 6.4 | [MBE906] | 01.2004-12.2007 | |
| Thomas Built Buses | Various Models | [C7] | 01.2005-12.2007 | |
| Thomas Built Buses | Various Models | [DT-466E] | 01.2005-12.2007 | |
| Thomas Built Buses | Various Models | [MBE906] | 01.2005-12.2007 | |
| Thomas Built Buses | Various Models | [MBE926] | 01.2005-12.2007 | |
| WESTERN STAR | 4700 12.8 | [DD13] | 01.2013-12.2017 | |
| WESTERN STAR | 4700 8.3 | [ISC] | 01.2012-12.2014 | |
| WESTERN STAR | 4700 8.9 | [ISL] | 01.2012-12.2017 | |
| WESTERN STAR | 4800 11.1 | 01.2001-12.2001 | ||
| WESTERN STAR | 4800 12.7 | 01.2000-12.2002 | ||
| WESTERN STAR | 4800 12.8 | [DD13] | 01.2012-12.2017 | |
| WESTERN STAR | 4900 12.8 | [MBE4000] | 01.2002-12.2009 | |
| WESTERN STAR | 4900 14.0 | 01.2002-12.2009 | ||
| WESTERN STAR | 4900 14.8 | [DD15] | 01.2010-12.2013 | |
| WESTERN STAR | 4900EX 12.7 | 01.2002-12.2014 | ||
| WESTERN STAR | 4900EX 12.8 | [DD13] | 01.2014-12.2015 | |
| WESTERN STAR | 4900EX 14.0 | 01.2002-12.2014 | ||
| WESTERN STAR | 4900EX 14.8 | [DD15] | 01.2009-12.2017 | |
| WESTERN STAR | 4900EX 15.0 | [ISX15] | 01.2002-12.2017 | |
| WESTERN STAR | 4900EX 15.6 | [DD16] | 01.2011-12.2017 | |
| WESTERN STAR | 4900FA 11.1 | [C11] | 01.2005-12.2007 | |
| WESTERN STAR | 4900FA 12.7 | 01.2002-12.2015 | ||
| WESTERN STAR | 4900FA 12.8 | [DD13] | 01.2010-12.2017 | |
| WESTERN STAR | 4900FA 12.8 | [MBE4000] | 01.2003-12.2013 | |
| WESTERN STAR | 4900FA 14.0 | 01.2002-12.2015 | ||
| WESTERN STAR | 4900FA 14.8 | [DD15] | 01.2009-12.2017 | |
| WESTERN STAR | 4900FA 15.0 | [ISX15] | 01.2002-12.2017 | |
| WESTERN STAR | 4900FA 15.6 | [DD16] | 01.2010-12.2017 | |
| WESTERN STAR | 4900SA 11.1 | [C11] | 01.2005-12.2007 | |
| WESTERN STAR | 4900SA 12.5 | [C13] | 01.2005-12.2010 | |
| WESTERN STAR | 4900SA 12.7 | 01.2002-12.2015 | ||
| WESTERN STAR | 4900SA 12.8 | [MBE4000] | 01.2003-12.2011 | |
| WESTERN STAR | 4900SA 14.0 | 01.2002-12.2017 | ||
| WESTERN STAR | 4900SA 14.6 | [C15] | 01.2005-12.2015 | |
| WESTERN STAR | 4900SA 15.0 | [ISX15] | 01.2002-12.2017 | |
| WESTERN STAR | 4900SB 12.8 | [DD13] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SB 14.8 | [DD15] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SB 15.6 | [DD16] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SF 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 6900 12.7 | 01.2002-12.2006 | ||
| WESTERN STAR | 6900 12.8 | [DD13] | 01.2009-12.2013 | |
| WESTERN STAR | 6900 15.2 | [C15] | 01.2003-12.2008 | |
| WESTERN STAR | 6900 15.6 | [DD16] | 01.2009-12.2013 | |
| WESTERN STAR | 6900XD 12.7 | 01.2002-12.2007 | ||
| WESTERN STAR | 6900XD 14.0 | 01.2004- | ||
| WESTERN STAR | 6900XD 15.0 | [ISX15] | 01.2012-12.2016 | |
| WESTERN STAR | 6900XD 15.6 | [DD16] | 01.2011-12.2012 | |
| WESTERN STAR | 6900XD 15.8 | [C16] | 01.2005-12.2012 |
