A2097S
Code: A2097S
Category: Alternators
Manufacturer: Hitachi
Supplier: As-pl
: LR1190-908C
STANDARD LINE

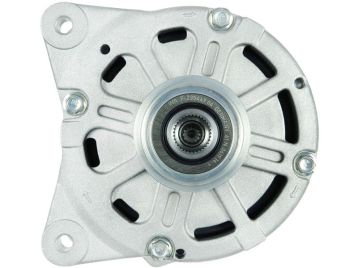

Brand new AS-PL Alternator
Size a: 30.00 mm
Size b: 14.00 mm
Size c: 60.50 mm
Amp.: 190 A
D.1: 8.50
D.2: 8.50
D.3: M8x1.25
D.4: M8x1.25
Pulley: AFP-INA
L.1: 207.00 mm
Plug: PL_2300
G: 7
O.d.1: 56.00 mm
Water cooled: Yes
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| ALTF126 | 3EFFE | |||||||
| ALTF126HI | 3EFFE | |||||||
| PRAF126 | 3EFFE | |||||||
| CGB-87556 | Ainde | |||||||
| UD13158A | As-pl | |||||||
| ||||||||
| AEG1217 | Autoelectro | |||||||
| CAL20212 | Casco | |||||||
| CAL20212AS | Casco | |||||||
| CAL20212ES | Casco | |||||||
| CAL20212GS | Casco | |||||||
| CAL20212OS | Casco | |||||||
| CAL20212RS | Casco | |||||||
| DRA1734 | DELCO | |||||||
| A-80624 | Dixie | |||||||
| ALT3058 | Electrolog | |||||||
| ||||||||
| 28-7556 | Elstock | |||||||
| 210777 | Era | |||||||
| 136158 | Hitachi | |||||||
| 2506158 | Hitachi | |||||||
| LR1190-908 | Hitachi | |||||||
| ||||||||
| LR1190-908B | Hitachi | |||||||
| ||||||||
| LR1190-908C | Hitachi | |||||||
| ||||||||
| ALH3908 | Krauf | |||||||
| 553518RIH | Kuhner | |||||||
| LRA03946 | Lucas | |||||||
| LRA3946 | Lucas | |||||||
| 95560301610 | Porsche | |||||||
| 305.413.190 | Psh | |||||||
| A132.298 | Psh | |||||||
| A148.102 | Psh | |||||||
| 2020212 | Sando | |||||||
| A12HT1258 | Sidat | |||||||
| ALT222120 | SIOM | |||||||
| 021902026N | Vw | |||||||
| 021903026N | Vw | |||||||
| 021903026NX | Vw | |||||||
| 059903018V | Vw | |||||||
| 059903018X | Vw | |||||||
| 11245N | Wai / Transpo | |||||||
| HITLR1190-908 | Woodauto | |||||||
Usage
| Brand | Model | Type | Year | Note |
| AUDI | Q7 (4LB) 3.6 FSI quattro | BHK | 08.2006-05.2010 | |
| AUDI | Q7 Van (4LB) 3.6 FSI quattro | BHK | 08.2006-05.2010 | |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3 | AYT | 04.2002-05.2005 | |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3 | BKL | 04.2002-05.2005 | |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3 | BKL | 02.2004-11.2008 | |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3 | BRK | 02.2004-11.2008 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | AZZ | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BAA | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BKJ | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BMV | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BMX | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BRJ | 10.2002-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.2 V6 | BMV | 11.2004-11.2006 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.6 V6 FSI | BHK | 10.2005-05.2010 | |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.6 V6 FSI | BHL | 10.2005-05.2010 |
