A2166S
Code: A2166S
Category: Alternators
Manufacturer: Hitachi
Supplier: As-pl
: LR190-771S
STANDARD LINE

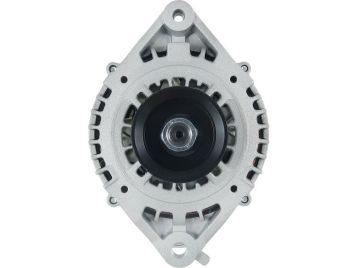

Brand new AS-PL Alternator
Size a: 39.00 mm
Size b: 13.50 mm
Size c: 80.50 mm
Amp.: 90 A
D.1: 10.50
D.2: M8x1.25
D.3: M10x1.25
Pulley: AP
L.1: 184.00 mm
Plug: PL_2004
G: 7
O.d.1: 60.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD103122A | As-pl | |
| 23100-VZ25A | Hitachi | |
| LR190-771S | Hitachi |
Usage
| Brand | Model | Type | Year | Note |
| NISSAN | CARAVAN Bus (E25) 3.0 D (VWE25, CWGE25, DWGE25) | ZD30DD | 10.2000-01.2012 | |
| NISSAN | CARAVAN Van (E25) 3.0 D | ZD30DD | 10.2000-01.2012 | |
| NISSAN | CARAVAN Van (E25) 3.0 TDi (VWE25, CWGE25) | ZD30DDTi | 07.2001-06.2012 | |
| NISSAN | URVAN Bus (E24) 3.0 Di | ZD30DD | 10.2000-11.2010 |
