  2. A3109



A3109


Code: A3109
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: SG12B010
STANDARD LINE

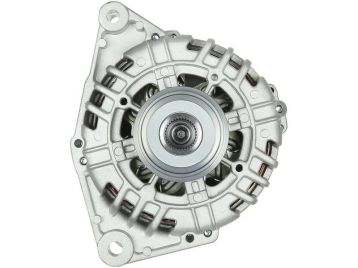

Brand new AS-PL Alternator


Size a: 34.50 mm
Size b: 14.00 mm
Size c: 83.00 mm
Amp.: 120 A
D.1: 8.50
D.2: 10.50
D.3: M10x1.5
Pulley: AFP
L.1: 183.00 mm
Plug: PL_2300
G: 5
O.d.1: 56.00 mm
Voltage: 12 v


Reference number

CodeManufacturer
ALTS1773EFFE
A3109 As-pl
AEC1759Autoelectro
0124515025 Bosch
0986044320Bosch
B120516094Bosch
STA0528RBovez
113882Cargo
F032113882Cargo
CAL15248GSCasco
216037Cummins
DRB4320DELCO
ALT00452Electrolog
28-3900Elstock
210524Era
CA1759IRHc Parts
8EL738140-001Hella
32044320Herth+buss
301588RIKuhner
301588RIRKuhner
301588RIVKuhner
301759RIKuhner
441906Logistik
LRA01996Lucas
LRA1996Lucas
20179842OEReal
2015248.1Sando
A12VA0502Sidat
A12VA0502A2Sidat
ALT172480SIOM
STX100044Stardax
STX100044RStardax
STX100514Stardax
STX100514RStardax
STX102219Stardax
2542232 Valeo
2542232AValeo
2542680 Valeo
2574347 Valeo
437188 Valeo
437420Valeo
439271 Valeo
SG12B010 Valeo
SG12B074 Valeo
3948717Volvo
038903018FXVw
06B903016ADVw
06B903016BVw
06B903016BXVw
06B903016EVw
06B903016EXVw
06B903018EXVw
6B903016ADVw
6B903016BVw
6B903016BXVw
6B903016EVw
6B903016EXVw
L06B903016EVw
11212NWai / Transpo
11212RWai / Transpo
ALT10375Woodauto


Usage

BrandModelTypeYearNote
AUDIA4 B5 (8D2) 1.6ADP11.1994-10.2000
AUDIA4 B5 (8D2) 1.6AHL11.1994-10.2000
AUDIA4 B5 (8D2) 1.6ANA11.1994-10.2000
AUDIA4 B5 (8D2) 1.6ARM11.1994-10.2000
AUDIA4 B5 (8D2) 1.6ALZ07.2000-11.2000
AUDIA4 B5 (8D2) 1.8ADR11.1994-11.2000
AUDIA4 B5 (8D2) 1.8APT11.1994-11.2000
AUDIA4 B5 (8D2) 1.8ARG11.1994-11.2000
AUDIA4 B5 (8D2) 1.8AVV11.1994-11.2000
AUDIA4 B5 (8D2) 1.8AFY04.1995-11.2000
AUDIA4 B5 (8D2) 1.8 quattroADR01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 quattroAPT01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 quattroARG01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 quattroAFY07.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TAEB01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TANB01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TAPU01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TARK01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TATW01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TAWT01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 TAJL12.1997-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroAEB01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroANB01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroAPU01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroARK01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroATW01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroAWT01.1995-11.2000
AUDIA4 B5 (8D2) 1.8 T quattroAJL12.1997-11.2000
AUDIA4 B5 (8D2) 2.8ACK10.1996-11.2000
AUDIA4 B5 (8D2) 2.8AHA10.1996-11.2000
AUDIA4 B5 (8D2) 2.8ALG10.1996-11.2000
AUDIA4 B5 (8D2) 2.8AMX10.1996-11.2000
AUDIA4 B5 (8D2) 2.8APR10.1996-11.2000
AUDIA4 B5 (8D2) 2.8AQD10.1996-11.2000
AUDIA4 B5 (8D2) 2.8ATQ10.1996-11.2000
AUDIA4 B5 (8D2) 2.8 quattroACK10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroAHA10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroALG10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroAMX10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroAPR10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroAQD10.1996-08.2001
AUDIA4 B5 (8D2) 2.8 quattroATQ10.1996-08.2001
AUDIA4 B5 Avant (8D5) 1.6ADP11.1994-09.2001
AUDIA4 B5 Avant (8D5) 1.6AHL11.1994-09.2001
AUDIA4 B5 Avant (8D5) 1.6ANA11.1994-09.2001
AUDIA4 B5 Avant (8D5) 1.6ARM11.1994-09.2001
AUDIA4 B5 Avant (8D5) 1.6ALZ07.2000-09.2001
AUDIA4 B5 Avant (8D5) 1.8ADR02.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8APT02.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8ARG02.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8AVV02.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8AFY07.1995-09.2001
AUDIA4 B5 Avant (8D5) 1.8 quattroADR01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 quattroAPT01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 quattroARG01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 quattroAFY07.1995-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TAEB03.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TANB03.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TAPU03.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TARK03.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TAWT03.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 TAJL12.1997-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroAEB01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroANB01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroAPU01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroARK01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroATW01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroAWT01.1996-09.2001
AUDIA4 B5 Avant (8D5) 1.8 T quattroAJL12.1997-09.2001
AUDIA4 B5 Avant (8D5) 2.8ATX03.1999-09.2000
AUDIA4 B5 Avant (8D5) RS4 quattroASJ05.2000-09.2001
AUDIA4 B5 Avant (8D5) RS4 quattroAZR05.2000-09.2001
AUDIA4 B6 (8E2) 1.6ALZ11.2000-12.2004
AUDIA4 B6 (8E2) 1.8 TAVJ11.2000-07.2002
AUDIA4 B6 (8E2) 1.9 TDIAVF11.2000-12.2004
AUDIA4 B6 (8E2) 1.9 TDIAWX11.2000-12.2004
AUDIA4 B6 (8E2) 2.0ALT11.2000-12.2004
AUDIA4 B6 (8E2) 2.0 FSIAWA07.2002-12.2004
AUDIA4 B6 (8E2) 2.4BDV09.2001-12.2004
AUDIA4 B6 (8E2) 2.5 TDIAYM08.2001-07.2002
AUDIA4 B6 (8E2) 3.0ASN11.2000-12.2004
AUDIA4 B6 (8E2) 3.0AVK11.2000-12.2004
AUDIA4 B6 (8E2) 3.0BBJ04.2001-12.2004
AUDIA4 B6 Avant (8E5) 1.8 TAVJ09.2001-07.2002
AUDIA4 B6 Avant (8E5) 1.9 TDIAVF09.2001-12.2004
AUDIA4 B6 Avant (8E5) 1.9 TDIAWX09.2001-12.2004
AUDIA4 B6 Avant (8E5) 1.9 TDIAVB11.2001-12.2004
AUDIA4 B6 Avant (8E5) 2.0ALT09.2001-12.2004
AUDIA4 B6 Avant (8E5) 2.0 FSIAWA07.2002-12.2004
AUDIA4 B6 Avant (8E5) 2.4BDV09.2001-12.2004
AUDIA4 B6 Avant (8E5) 2.5 TDIAYM09.2001-07.2002
AUDIA4 B6 Avant (8E5) 3.0ASN09.2001-12.2004
AUDIA4 B6 Avant (8E5) 3.0BBJ04.2001-12.2004
AUDIA4 B6 Convertible (8H7) 2.0ALT09.2004-12.2005
AUDIA6 C4 (4A2) 1.8ADR12.1995-10.1997
AUDIA6 C4 (4A2) 1.8 quattroADR12.1995-10.1997
AUDIA6 C4 Avant (4A5) 1.8ADR12.1995-12.1997
AUDIA6 C4 Avant (4A5) 1.8 quattroADR12.1995-12.1997
AUDIA6 C5 (4B2, 4B4) 1.8AJP07.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8AQE07.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8ARH07.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8AFY05.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TAEB01.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TANB01.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TAPU01.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TARK01.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TAWT01.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 TAJL12.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroAEB02.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroANB02.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroAPU02.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroARK02.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroAWT02.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 1.8 T quattroAJL12.1997-01.2005
AUDIA6 C5 (4B2, 4B4) 2.0ALT08.2001-01.2005
AUDIA6 C5 (4B2, 4B4) 4.2 quattroARS11.1998-01.2005
AUDIA6 C5 (4B2, 4B4) 4.2 quattroART11.1998-01.2005
AUDIA6 C5 (4B2, 4B4) 4.2 quattroASG11.1998-01.2005
AUDIA6 C5 (4B2, 4B4) 4.2 quattroAWN11.1998-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8AJP12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8AQE12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8ARH12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8AFY02.1998-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TAEB12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TANB12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TAPU12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TARK12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TAWT12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 TAJL04.1999-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroAEB12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroANB12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroAPU12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroARK12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroAWT12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 1.8 T quattroAJL12.1997-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 2.0ALT08.2001-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 4.2 quattroARS11.1998-01.2005
AUDIA6 C5 Avant (4B5, 4B6) 4.2 quattroASG11.1998-01.2005
AUDIA8 D3 (4E2, 4E8) 3.0BBJ07.2003-05.2006
SKODASUPERB I (3U4) 2.0AZM12.2001-03.2008
SKODASUPERB II (3T4) 1.8 TSICDAB03.2009-05.2015
SKODASUPERB II (3T4) 1.8 TSIBZB03.2008-05.2015
SKODASUPERB II (3T4) 1.8 TSICDAA03.2008-05.2015
SKODASUPERB II (3T4) 1.8 TSI 4x4CDAB03.2009-05.2015
SKODASUPERB II (3T4) 1.8 TSI 4x4CDAA11.2008-05.2015
SKODASUPERB II (3T4) 2.0 TFSICCZA05.2010-05.2015
SKODASUPERB II Estate (3T5) 1.8 TSICDAB10.2009-05.2015
SKODASUPERB II Estate (3T5) 1.8 TSICDAA10.2009-05.2015
SKODASUPERB II Estate (3T5) 1.8 TSI 4x4CDAB10.2009-05.2015
SKODASUPERB II Estate (3T5) 1.8 TSI 4x4CDAA10.2009-05.2015
SKODASUPERB II Estate (3T5) 2.0 TFSICCZA05.2010-05.2015
VWPASSAT B5 (3B2) 1.6ADP10.1996-11.2000
VWPASSAT B5 (3B2) 1.6AHL10.1996-11.2000
VWPASSAT B5 (3B2) 1.6ANA10.1996-11.2000
VWPASSAT B5 (3B2) 1.6ARM10.1996-11.2000
VWPASSAT B5 (3B2) 1.8ADR10.1996-11.2000
VWPASSAT B5 (3B2) 1.8APT10.1996-11.2000
VWPASSAT B5 (3B2) 1.8ARG10.1996-11.2000
VWPASSAT B5 (3B2) 1.8AFY01.1997-11.2000
VWPASSAT B5 (3B2) 1.8 Syncro/4motionADR12.1996-08.2000
VWPASSAT B5 (3B2) 1.8 Syncro/4motionAPT12.1996-08.2000
VWPASSAT B5 (3B2) 1.8 Syncro/4motionARG12.1996-08.2000
VWPASSAT B5 (3B2) 1.8 TAEB10.1996-11.2000
VWPASSAT B5 (3B2) 1.8 TANB10.1996-11.2000
VWPASSAT B5 (3B2) 1.8 TAPU10.1996-11.2000
VWPASSAT B5 (3B2) 1.8 TATW10.1996-11.2000
VWPASSAT B5 (3B2) 1.8 TAUG10.1996-11.2000
VWPASSAT B5 (3B2) 2.8 V6ATX09.1999-11.2000
VWPASSAT B5 (3B2) 2.8 V6BBG09.1999-11.2000
VWPASSAT B5 Variant (3B5) 1.6ADP06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.6AHL06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.6ANA06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.6ARM06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8ADR06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8APT06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8ARG06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8AFY06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 Syncro/4motionADR06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 Syncro/4motionAPT06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 Syncro/4motionARG06.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 TAEB05.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 TANB05.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 TAPU05.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 TATW05.1997-11.2000
VWPASSAT B5 Variant (3B5) 1.8 TAUG05.1997-11.2000
VWPASSAT B5 Variant (3B5) 2.0ASU04.2000-11.2000
VWPASSAT B5 Variant (3B5) 2.0AUZ04.2000-11.2000
VWPASSAT B5 Variant (3B5) 2.0 4motionASU04.2000-11.2000
VWPASSAT B5 Variant (3B5) 2.0 4motionAUZ04.2000-11.2000
VWPASSAT B5 Variant (3B5) 2.8 V6ATX09.1999-11.2000
VWPASSAT B5.5 (3B3) 1.6ALZ11.2000-05.2005
VWPASSAT B5.5 (3B3) 1.8 TAWM02.2001-11.2005
VWPASSAT B5.5 (3B3) 1.8 T 20VAWT11.2000-05.2005
VWPASSAT B5.5 (3B3) 2.0AZM11.2000-05.2005
VWPASSAT B5.5 (3B3) 2.0ALT11.2001-05.2005
VWPASSAT B5.5 (3B3) 2.0 4motionAZM11.2000-05.2005
VWPASSAT B5.5 Variant (3B6) 1.6ALZ11.2000-05.2005
VWPASSAT B5.5 Variant (3B6) 1.8 TAWM05.2002-08.2005
VWPASSAT B5.5 Variant (3B6) 1.8 T 20VAWT11.2000-05.2005
VWPASSAT B5.5 Variant (3B6) 2.0AZM11.2000-05.2005
VWPASSAT B5.5 Variant (3B6) 2.0ALT11.2001-05.2005
VWPASSAT B5.5 Variant (3B6) 2.0 4motionAZM11.2000-05.2005
VWSCIROCCO III (137, 138) 2.0 TFSICAWB05.2008-11.2009


Contact

  • AS AUTOSTARTER PARTS SRL - WEBShop

Suport

  • E-mail: office@as-autostarter.ro
    Phone: +40.259.420420/+40.259.420421/+40.259.420422 / 0.728.141395 / 0.728.141394
    Fax: +40.259.420420
    Skype:

Menu


Menu

Copyright AS AUTOSTARTER PARTS SRL 2023 © All rights reserved
