A3341S
Code: A3341S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: 37300-2B610
STANDARD LINE

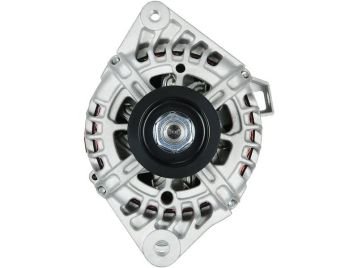

Brand new AS-PL Alternator
Size a: 34.00 mm
Size b: 15.00 mm
Size c: 50.00 mm
Amp.: 110 A
D.1: 10.50
D.2: M8x1.25
D.3: M10x1.25
Pulley: AP
L.1: 173.50 mm
Plug: PL_3307
G: 6
O.d.1: 58.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||
| UD15015A | As-pl | ||||
| CAL32160AS | Casco | ||||
| CAL32160GS | Casco | ||||
| 209533 | Era | ||||
| 210308 | Era | ||||
| 37300-2B610 | Hyundai / Kia | ||||
| |||||
| ALV6564 | Krauf | ||||
| STX110189 | Stardax | ||||
| STX110189R | Stardax | ||||
| 2616564 | Valeo | ||||
| |||||
| 11642N | Wai / Transpo | ||||
Usage
| Brand | Model | Type | Year | Note |
| HYUNDAI | ACCENT IV Saloon (RB) 1.6 | G4FC | 11.2010- | |
| HYUNDAI | ACCENT IV Saloon (RB) 1.6 | G4FC | 11.2010-12.2017 | |
| HYUNDAI | i20 I (PB, PBT) 1.4 | G4FA | 09.2008-12.2015 | |
| HYUNDAI | i30 (FD) 1.4 | G4FA | 10.2007-11.2011 | |
| HYUNDAI | i30 (FD) 1.4 | G4FA | 10.2007-11.2011 | |
| HYUNDAI | i30 (FD) 1.4 LPG | G4FA | 01.2009-11.2011 | |
| HYUNDAI | i30 (FD) 1.6 | G4FC | 10.2007-11.2011 | |
| HYUNDAI | i30 (FD) 1.6 | G4FC | 10.2007-11.2011 | |
| HYUNDAI | i30 (FD) 1.6 | G4FC | 02.2008-11.2011 | |
| HYUNDAI | i30 (GD) 1.4 | G4FA | 12.2011-12.2015 | |
| HYUNDAI | i30 (GD) 1.4 LPG | G4FA | 01.2013-12.2014 | |
| HYUNDAI | i30 (GD) 1.6 | G4FC | 01.2012-12.2016 | |
| HYUNDAI | i30 (GD) 1.6 | G4FG | 01.2012-12.2016 | |
| HYUNDAI | i30 (GD) 1.6 | G4FC | 12.2011-12.2015 | |
| HYUNDAI | i30 (GD) 1.6 GDI | G4FD | 12.2011-12.2016 | |
| HYUNDAI | i30 Coupe 1.4 | G4FA | 05.2013-12.2014 | |
| HYUNDAI | i30 Coupe 1.6 GDI | G4FD | 05.2013- | |
| HYUNDAI | i30 Estate (FD) 1.4 | G4FA | 10.2007-06.2012 | |
| HYUNDAI | i30 Estate (FD) 1.4 | G4FA | 11.2009-06.2012 | |
| HYUNDAI | i30 Estate (FD) 1.4 LPG | G4FA | 11.2009-06.2012 | |
| HYUNDAI | i30 Estate (FD) 1.6 | G4FC | 02.2008-06.2012 | |
| HYUNDAI | i30 Estate (FD) 1.6 | G4FC | 02.2008-06.2012 | |
| HYUNDAI | i30 Estate (FD) 1.6 | G4FC | 02.2008-06.2012 | |
| HYUNDAI | i30 Estate (GD) 1.4 | G4FA | 06.2012-12.2015 | |
| HYUNDAI | i30 Estate (GD) 1.4 | G4LC | 01.2014-05.2017 | |
| HYUNDAI | i30 Estate (GD) 1.6 | G4FC | 06.2012- | |
| HYUNDAI | i30 Estate (GD) 1.6 | G4FG | 06.2012- | |
| HYUNDAI | i30 Estate (GD) 1.6 | G4FD | 06.2012-12.2015 | |
| HYUNDAI | i30 Estate (GD) 1.6 GDI | G4FD | 06.2012- | |
| HYUNDAI | i30 Hatchback Van (GDE) 1.6 GDI | G4FD | 05.2015- | |
| HYUNDAI | i30 Kombi Van (GDE, GD) 1.6 GDI | G4FD | 05.2015- | |
| HYUNDAI | i40 I (VF) 1.6 GDI | G4FD | 03.2012-05.2019 | |
| HYUNDAI | i40 I CW (VF) 1.6 GDI | G4FD | 07.2011-05.2019 | |
| HYUNDAI | ix20 (JC) 1.4 | G4FA | 11.2010-07.2019 | |
| HYUNDAI | ix20 (JC) 1.4 | G4FA | 11.2010-07.2019 | |
| HYUNDAI | ix20 (JC) 1.4 LPG | G4FA | 11.2010-07.2019 | |
| HYUNDAI | ix20 (JC) 1.6 | G4FC | 11.2010-07.2019 | |
| HYUNDAI | ix20 (JC) 1.6 LPG | G4FC | 11.2010-07.2019 | |
| HYUNDAI | ix35 (LM, EL, ELH) 1.6 | G4FD | 11.2010-12.2015 | |
| HYUNDAI | ix35 Van GDi | G4FD | 05.2015-12.2015 | |
| HYUNDAI | VELOSTER (FS) 1.6 MPI | G4FC | 04.2011-12.2017 | |
| HYUNDAI | VELOSTER (FS) 1.6 MPI | G4FG | 04.2011-12.2017 | |
| HYUNDAI | VELOSTER (FS) 1.6 T-GDI | G4FJ | 10.2012-12.2017 | |
| KIA | CARENS IV 1.6 GDi | G4FD | 03.2013-08.2016 | |
| KIA | CEED (JD) 1.4 CVVT | G4FA | 05.2012-07.2018 | |
| KIA | CEED (JD) 1.4 CVVT | G4FA | 05.2012-07.2018 | |
| KIA | CEED (JD) 1.6 GDI | G4FD | 05.2012-07.2018 | |
| KIA | CEED (JD) 1.6 GT | G4FJ | 06.2013-07.2018 | |
| KIA | CEED Combi Van (JD) 1.4 CVVT | G4FA | 04.2015-07.2018 | |
| KIA | CEED Combi Van (JD) 1.6 GDi | G4FD | 04.2015-07.2018 | |
| KIA | CEED Hatchback (ED) 1.4 | G4FA | 12.2006-12.2012 | |
| KIA | CEED Hatchback (ED) 1.4 | G4FA | 12.2006-12.2012 | |
| KIA | CEED Hatchback (ED) 1.4 CVVT | G4FA | 08.2009-12.2012 | |
| KIA | CEED Hatchback (ED) 1.4 LPG | G4FA | 01.2009-12.2010 | |
| KIA | CEED Hatchback (ED) 1.6 | G4FC | 09.2007-12.2012 | |
| KIA | CEED Hatchback (ED) 1.6 | G4FC | 12.2006-12.2012 | |
| KIA | CEED Hatchback (ED) 1.6 | G4FC | 02.2008-12.2012 | |
| KIA | CEED Hatchback (ED) 1.6 CVVT | G4FC | 10.2010-12.2012 | |
| KIA | CEED Hatchback (ED) 1.6 LPG | G4FC | 06.2007-12.2011 | |
| KIA | CEED Sportswagon (JD) 1.4 CVVT | G4FA | 09.2012-07.2015 | |
| KIA | CEED Sportswagon (JD) 1.6 GDI | G4FD | 09.2012-07.2018 | |
| KIA | CEED SW (ED) 1.4 | G4FA | 10.2010-12.2012 | |
| KIA | CEED SW (ED) 1.4 | G4FA | 09.2007-12.2012 | |
| KIA | CEED SW (ED) 1.4 CVVT | G4FA | 07.2009-12.2012 | |
| KIA | CEED SW (ED) 1.4 LPG | G4FA | 01.2009-12.2010 | |
| KIA | CEED SW (ED) 1.6 | G4FC | 09.2007-11.2012 | |
| KIA | CEED SW (ED) 1.6 | G4FC | 09.2007-12.2012 | |
| KIA | CEED SW (ED) 1.6 | G4FC | 09.2007-12.2012 | |
| KIA | CEED SW (ED) 1.6 CVVT | G4FC | 06.2009-12.2012 | |
| KIA | PRO CEED (ED) 1.4 | G4FA | 02.2008-09.2012 | |
| KIA | PRO CEED (ED) 1.4 | G4FA | 02.2008-09.2012 | |
| KIA | PRO CEED (ED) 1.4 CVVT | G4FA | 06.2010-09.2012 | |
| KIA | PRO CEED (ED) 1.6 | G4FC | 02.2008-09.2012 | |
| KIA | PRO CEED (ED) 1.6 | G4FC | 02.2008-09.2012 | |
| KIA | PRO CEED (ED) 1.6 CVVT | G4FC | 10.2010-02.2013 | |
| KIA | PRO CEED (JD) 1.4 CVVT | G4FA | 03.2013-07.2015 | |
| KIA | PRO CEED (JD) 1.4 CVVT | G4FA | 07.2013-07.2018 | |
| KIA | PRO CEED (JD) 1.6 GDI | G4FD | 03.2013-07.2018 | |
| KIA | PRO CEED (JD) 1.6 GT | G4FJ | 06.2013-07.2018 | |
| KIA | RIO II Saloon (JB) 1.6 16V | G4ED | 03.2005-12.2011 | |
| KIA | RIO III (UB) 1.4 CVVT | G4FA | 09.2011-12.2017 | |
| KIA | RIO III (UB) 1.6 CVVT | G4FC | 06.2012-12.2017 | |
| KIA | RIO III Hatchback Van (UB) 1.4 CVVT | G4FA | 04.2015- | |
| KIA | RIO III Saloon (UB) 1.4 CVVT | G4FA | 10.2011-12.2017 | |
| KIA | RIO III Saloon (UB) 1.6 CVVT | G4FC | 06.2012-12.2017 | |
| KIA | SOUL I (AM) 1.6 GDI | G4FD | 06.2011-12.2014 | |
| KIA | SOUL II (PS) 1.6 CVVT | G4FG | 02.2014-12.2018 | |
| KIA | SOUL II (PS) 1.6 GDI | G4FD | 02.2014-12.2018 | |
| KIA | SPORTAGE III (SL) 1.6 GDI | G4FD | 06.2010-12.2015 | |
| KIA | VENGA (YN) 1.4 CVVT | G4FA | 02.2010-03.2019 | |
| KIA | VENGA (YN) 1.4 LPG | G4FA | 02.2010-03.2019 | |
| KIA | VENGA (YN) 1.6 CVVT | G4FC | 02.2010-03.2019 |
