  2. A3344S

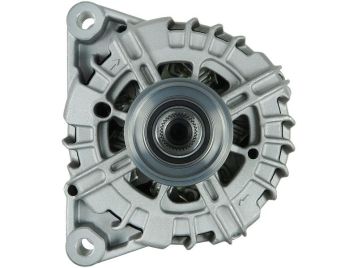

A3344S


Code: A3344S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: TG15C103
STANDARD LINE
Brand new AS-PL Alternator


Size a: 42.50 mm
Size b: 21.00 mm
Size c: 46.00 mm
Amp.: 150 A
D.1: 10.50
D.2: 10.50
D.3: M10x1.5
D.4: M10x1.5
Pulley: AFP
L.1: 189.00 mm
Plug: PL_2305
G: 6
O.d.1: 54.00 mm
Voltage: 12 v
Com id: 25


Reference number

CodeManufacturer
28-5825CTAinde
ANM32747Andel
ANM32747XAndel
A3344S As-pl
UD13563AAs-pl
L51050Atl Autotechnik
AVA462Autoteam
AVA462AAutoteam
G107794BTS Turbo
G107795BTS Turbo
CAL15462ASCasco
CAL15462GSCasco
4728Cevam
011633Da Silva
57245Eai
ALT00544Electrolog
210420Era
210420AEra
1680418680Eurorepar
192988Febi Bilstein
1762869Ford
8V2-110300-BB Ford
9G9N-10300-CAFord
9G9NCAFord
RM6G9N-10300-XCFord
20015462AVItab Automotive
AL-109JMJapanparts
553279RIKuhner
553279RIVKuhner
LEA0833Le Part
4825024Nk
595.561.150.004Psh
595.561.150.500Psh
20179264BNReal
20179264OEReal
011-003-000952RRemante
RNLTG15C103Rnl
2015462.0Sando
2015462.1Sando
A12BH0301ASSidat
AL02850Tmi
TG15C103 Valeo
TG15C152 Valeo
24053NWai / Transpo
20-0036Airstal
WAL00621Walker


Usage

BrandModelTypeYearNote
FORDEcoSport 1.5 TDCiUGJM05.2015-
FORDEcoSport 1.5 TDCiXUJH05.2015-
FORDFIESTA VI (CB1, CCN) 1.4 TDCiF6JD07.2010-09.2012
FORDFIESTA VI (CB1, CCN) 1.4 TDCiKVJA07.2010-09.2012
FORDFIESTA VI (CB1, CCN) 1.4 TDCiF6JB08.2008-09.2012
FORDFIESTA VI (CB1, CCN) 1.4 TDCiF6JD08.2008-09.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiHHJC06.2008-12.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiHHJD06.2008-12.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiHHJE06.2008-12.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiHHJF06.2008-12.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiUBJA06.2008-12.2012
FORDFIESTA VI (CB1, CCN) 1.6 TDCiT3JA02.2010-12.2015
FORDFIESTA VI (CB1, CCN) 1.6 TDCiTZJA02.2010-12.2015
FORDFIESTA VI (CB1, CCN) 1.6 TDCiTZJB02.2010-12.2015
FORDFIESTA VI (CB1, CCN) 1.6 TDCi06.2008-12.2012
FORDFIESTA VI Van 1.4 TDCiF6JD07.2010-04.2017
FORDFIESTA VI Van 1.4 TDCiKVJA07.2010-04.2017
FORDFIESTA VI Van 1.4 TDCiF6JB01.2009-04.2017
FORDFIESTA VI Van 1.4 TDCiF6JD01.2009-04.2017
FORDFIESTA VI Van 1.6 TDCiT3JA02.2010-05.2015
FORDFIESTA VI Van 1.6 TDCiTZJA02.2010-05.2015
FORDFIESTA VI Van 1.6 TDCiTZJB02.2010-05.2015
FORDFIESTA VI Van 1.6 TDCiHHJC01.2009-04.2017
FORDFIESTA VI Van 1.6 TDCiHHJD01.2009-04.2017
FORDFIESTA VI Van 1.6 TDCiHHJE01.2009-04.2017
FORDFOCUS III Hatchback Van 2.0 TDCiUFDB01.2011-06.2014
FORDGALAXY MK II VAN (WA6) TDCiT1WA03.2013-06.2015
FORDGALAXY MK II VAN (WA6) TDCiT1WB03.2013-06.2015
FORDKUGA II VAN 1.5 TDCiXWMB01.2019-12.2019
FORDKUGA II VAN 1.5 TDCiXWMC01.2019-12.2019
FORDMONDEO IV Van 1.6 TDCiT1BC03.2013-09.2014
FORDTOURNEO COURIER B460 MPV 1.5 EcoBlueXVCE04.2018-12.2023
FORDTOURNEO COURIER B460 MPV 1.5 EcoBlueXVCF04.2018-12.2023
FORDTOURNEO COURIER B460 MPV 1.5 EcoBlueXXCA04.2018-12.2023
FORDTOURNEO COURIER B460 MPV 1.5 EcoBlueXXCB04.2018-12.2023
FORDTOURNEO COURIER B460 MPV 1.5 EcoBlueXXCC04.2018-12.2023
FORDTRANSIT CONNECT V408 Box Body/MPV 1.5 TDCiXXGA03.2016-
FORDTRANSIT COURIER B460 MPV 1.5 EcoBlueXVCE04.2018-12.2023
FORDTRANSIT COURIER B460 MPV 1.5 EcoBlueXVCF04.2018-12.2023
FORDTRANSIT COURIER B460 MPV 1.5 EcoBlueXXCA04.2018-12.2023
FORDTRANSIT COURIER B460 MPV 1.5 EcoBlueXXCB04.2018-12.2023
FORDTRANSIT COURIER B460 MPV 1.5 EcoBlueXXCC04.2018-12.2023
MAZDA2 (DE_, DH_) 1.4 MZR-CDY40401.2008-06.2015
MAZDA2 (DE_, DH_) 1.6 MZ-CDY40610.2008-06.2015
MAZDA2 (DE_, DH_) 1.6 MZ-CDY64610.2008-06.2015
MAZDA2 (DE_, DH_) 1.6 MZ-CDY65506.2011-06.2015
MAZDA2 (DE_, DH_) 1.6 MZ-CDY66106.2011-06.2015
VOLVOV70 III (135) 1.6 DD4164T07.2009-12.2011
