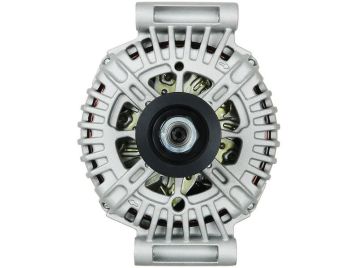

A3360S
Code: A3360S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: TG15C182
STANDARD LINE
Brand new AS-PL Alternator
Size a: 31.00 mm
Size c: 56.00 mm
Amp.: 150 A
D.1: 9.50
D.2: 9.50
D.3: 8.50
D.4: 8.50
E.1: 70.00 mm
E.2: 70.00 mm
Pulley: AP
L.1: 183.00 mm
Plug: PL_2306
G: 6
O.d.1: 49.50 mm
Voltage: 12 v
Com id: 25
Reference number
| Code | Manufacturer | |||||||||||||||||||||||||||||||||||||||||||
| UD17172A | As-pl | |||||||||||||||||||||||||||||||||||||||||||
| AEK3307 | Autoelectro | |||||||||||||||||||||||||||||||||||||||||||
| 115988 | Cargo | |||||||||||||||||||||||||||||||||||||||||||
| F032115988 | Cargo | |||||||||||||||||||||||||||||||||||||||||||
| CAL15466AS | Casco | |||||||||||||||||||||||||||||||||||||||||||
| CAL15466GS | Casco | |||||||||||||||||||||||||||||||||||||||||||
| 4833 | Cevam | |||||||||||||||||||||||||||||||||||||||||||
| DA1913 | DELCO | |||||||||||||||||||||||||||||||||||||||||||
| DRA0803 | DELCO | |||||||||||||||||||||||||||||||||||||||||||
| 260510-6790 | Denso | |||||||||||||||||||||||||||||||||||||||||||
| DAN1544 | Denso | |||||||||||||||||||||||||||||||||||||||||||
| ALT00207 | Electrolog | |||||||||||||||||||||||||||||||||||||||||||
| 28-5919 | Elstock | |||||||||||||||||||||||||||||||||||||||||||
| 209234 | Era | |||||||||||||||||||||||||||||||||||||||||||
| 209234A | Era | |||||||||||||||||||||||||||||||||||||||||||
| 12090557 | Eurotec | |||||||||||||||||||||||||||||||||||||||||||
| 9090799 | Friesen | |||||||||||||||||||||||||||||||||||||||||||
| 8EL012240-221 | Hella | |||||||||||||||||||||||||||||||||||||||||||
| 32002002 | Herth+buss | |||||||||||||||||||||||||||||||||||||||||||
| ALV5182 | Krauf | |||||||||||||||||||||||||||||||||||||||||||
| 554207RIV | Kuhner | |||||||||||||||||||||||||||||||||||||||||||
| LRA03307 | Lucas | |||||||||||||||||||||||||||||||||||||||||||
| LRA3307 | Lucas | |||||||||||||||||||||||||||||||||||||||||||
| 55151240 | Meat & Doria | |||||||||||||||||||||||||||||||||||||||||||
| 0009060401 | Mercedes | |||||||||||||||||||||||||||||||||||||||||||
| 000906040180 | Mercedes | |||||||||||||||||||||||||||||||||||||||||||
| A0009060401 | Mercedes | |||||||||||||||||||||||||||||||||||||||||||
| A000906040180 | Mercedes | |||||||||||||||||||||||||||||||||||||||||||
| 89215592 | Powermax | |||||||||||||||||||||||||||||||||||||||||||
| 9215592 | Powermax | |||||||||||||||||||||||||||||||||||||||||||
| 20179664BN | Real | |||||||||||||||||||||||||||||||||||||||||||
| 20179664OE | Real | |||||||||||||||||||||||||||||||||||||||||||
| ALT2321 | Rollco | |||||||||||||||||||||||||||||||||||||||||||
| 2015466.0 | Sando | |||||||||||||||||||||||||||||||||||||||||||
| 2015466.1 | Sando | |||||||||||||||||||||||||||||||||||||||||||
| A12VA0963AS | Sidat | |||||||||||||||||||||||||||||||||||||||||||
| STX101751 | Stardax | |||||||||||||||||||||||||||||||||||||||||||
| 2612243 | Valeo | |||||||||||||||||||||||||||||||||||||||||||
| 2612243A | Valeo | |||||||||||||||||||||||||||||||||||||||||||
| 439746 | Valeo | |||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
| 440336 | Valeo | |||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
| TG15C182 | Valeo | |||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
| 20561N | WAI | |||||||||||||||||||||||||||||||||||||||||||
| 555.909.150.000 | WAI | |||||||||||||||||||||||||||||||||||||||||||
| 555.909.150.004 | WAI | |||||||||||||||||||||||||||||||||||||||||||
| 555.909.150.500 | WAI | |||||||||||||||||||||||||||||||||||||||||||
| A133.745 | WAI | |||||||||||||||||||||||||||||||||||||||||||
| A147.174 | WAI | |||||||||||||||||||||||||||||||||||||||||||
| VAL439746 | Woodauto | |||||||||||||||||||||||||||||||||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| Mercedes-benz | C-CLASS (W204) C 180 CDI (204.000) | OM651.913 | 04.2010-03.2014 | |
| Mercedes-benz | C-CLASS (W204) C 200 CDI (204.001) | OM651.913 | 11.2009-03.2014 | |
| Mercedes-benz | C-CLASS (W204) C 220 CDI (204.002) | OM651.911 | 12.2008-01.2014 | |
| Mercedes-benz | C-CLASS (W204) C 220 CDI (204.002) | OM651.911 | 10.2008-01.2014 | |
| Mercedes-benz | C-CLASS (W204) C 250 CDI (204.003) | OM651.911 | 08.2008-01.2014 | |
| Mercedes-benz | C-CLASS Coupe (C204) C 220 CDI (204.302) | OM651.911 | 06.2011- | |
| Mercedes-benz | C-CLASS Coupe (C204) C 220 CDI (204.302) | OM651.911 | 06.2011- | |
| Mercedes-benz | C-CLASS Coupe (C204) C 250 CDI (204.303) | OM651.911 | 06.2011- | |
| Mercedes-benz | C-CLASS T-Model (S204) C 180 CDI (204.200) | OM651.913 | 04.2010-08.2014 | |
| Mercedes-benz | C-CLASS T-Model (S204) C 200 CDI (204.201) | OM651.913 | 08.2010-08.2014 | |
| Mercedes-benz | C-CLASS T-Model (S204) C 220 CDI (204.202) | OM651.911 | 12.2008-08.2014 | |
| Mercedes-benz | C-CLASS T-Model (S204) C 220 CDI (204.202) | OM651.911 | 12.2008-08.2014 | |
| Mercedes-benz | C-CLASS T-Model (S204) C 250 CDI (204.203) | OM651.911 | 01.2009-08.2014 | |
| Mercedes-benz | E-CLASS (W212) E 200 CDI / BlueTEC (212.005, 212.0 | OM651.925 | 01.2009-12.2015 | |
| Mercedes-benz | E-CLASS (W212) E 220 CDI / BlueTEC (212.001, 212.0 | OM651.924 | 01.2009-12.2016 | |
| Mercedes-benz | E-CLASS Convertible (A207) E 220 BlueTEC (207.401) | OM651.911 | 05.2014-12.2016 | |
| Mercedes-benz | E-CLASS Convertible (A207) E 220 CDI (207.402) | OM651.911 | 02.2010-12.2016 | |
| Mercedes-benz | E-CLASS Convertible (A207) E 220 CDI / BlueTEC / d | OM651.911 | 01.2010-12.2016 | |
| Mercedes-benz | E-CLASS Convertible (A207) E 250 CDI / BlueTEC / d | OM651.911 | 01.2010-12.2016 | |
| Mercedes-benz | E-CLASS Coupe (C207) E 220 CDI (207.302) | OM651.911 | 02.2010-12.2014 | |
| Mercedes-benz | E-CLASS Coupe (C207) E 220 CDI / d (207.302, 207.3 | OM651.911 | 01.2010-12.2016 | |
| Mercedes-benz | E-CLASS Coupe (C207) E 250 CDI / BlueTEC / d (207. | OM651.911 | 01.2009-12.2016 | |
| Mercedes-benz | E-CLASS T-Model (S212) E 200 CDI / BlueTEC (212.20 | OM651.925 | 11.2009-12.2016 | |
| Mercedes-benz | E-CLASS T-Model (S212) E 220 CDI (212.202) | OM651.924 | 08.2009-08.2014 | |
| Mercedes-benz | E-CLASS T-Model (S212) E 220 CDI / BlueTEC (212.20 | OM651.924 | 11.2009-12.2016 | |
| Mercedes-benz | E-CLASS T-Model (S212) E 250 CDI / BlueTEC (212.20 | OM651.924 | 11.2009-12.2016 | |
| Mercedes-benz | MARCO POLO Camper (W447) 200 CDI (447.703) | OM622.851 | 06.2020- | |
| Mercedes-benz | MARCO POLO Camper (W447) 200 CDI (447.703, 447.813 | OM651.950 | 03.2015- | |
| Mercedes-benz | MARCO POLO Camper (W447) 200 CDI 4-matic (447.703, | OM651.950 | 03.2015- | |
| Mercedes-benz | MARCO POLO Camper (W447) 220 CDI (447.703, 447.813 | OM651.950 | 03.2015- | |
| Mercedes-benz | MARCO POLO Camper (W447) 220 CDI 4-matic (447.703, | OM651.950 | 03.2015- | |
| Mercedes-benz | MARCO POLO Camper (W447) 250 CDI (447.703, 447.813 | OM651.950 | 03.2015- | |
| Mercedes-benz | MARCO POLO Camper (W447) 250 CDI 4-matic (447.703, | OM651.950 | 03.2015- | |
| Mercedes-benz | SPRINTER 3,5-t Platform/Chassis (B907, B910) 311 C | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Platform/Chassis (B907, B910) 314 C | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Platform/Chassis (B907, B910) 314 C | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Platform/Chassis (B907, B910) 316 C | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Platform/Chassis (B907, B910) 316 C | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Tourer Bus (B907) 311 CDI (907.731, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Tourer Bus (B907) 314 CDI (907.731, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Tourer Bus (B907) 314 CDI All-wheel | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Tourer Bus (B907) 316 CDI (907.731, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Tourer Bus (B907) 316 CDI All-wheel | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Van (B907, B910) 311 CDI RWD (907.6 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Van (B907, B910) 314 CDI All-wheel | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Van (B907, B910) 314 CDI RWD (907.6 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Van (B907, B910) 316 CDI All-wheel | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 3,5-t Van (B907, B910) 316 CDI RWD (907.6 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Platform/Chassis (B910, B907) 211 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Platform/Chassis (B910, B907) 214 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Platform/Chassis (B910, B907) 216 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Tourer Bus (B907) 211 CDI (907.721, 9 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Tourer Bus (B907) 214 CDi (907.721, 9 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 3-t Tourer Bus (B907) 216 CDi (907.721, 9 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Platform/Chassis (B907, B910) 411 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Platform/Chassis (B907, B910) 414 CDI | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Platform/Chassis (B907, B910) 414 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Platform/Chassis (B907, B910) 416 CDI | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Platform/Chassis (B907, B910) 416 CDI | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Tourer Bus (B907) 411 CDI (907.741, 9 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Tourer Bus (B907) 414 CDI (907.741, 9 | OM651.958 | 09.2019-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Van (B907, B910) 411 CDI RWD (907.643 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Van (B907, B910) 414 CDI All-wheel Dr | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Van (B907, B910) 414 CDI RWD (907.643 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Van (B907, B910) 416 CDI All-wheel Dr | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 4-t Van (B907, B910) 416 CDI RWD (907.643 | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Platform/Chassis (B907) 511 CDI (907. | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Platform/Chassis (B907) 514 CDI (907. | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Platform/Chassis (B907) 516 CDI (907. | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Platform/Chassis (B907) 516 CDI All-w | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Van (B907) 511 CDI (907.653, 907.655, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Van (B907) 514 CDI (907.653, 907.655, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Van (B907) 516 CDI (907.653, 907.655, | OM651.958 | 02.2018-12.2021 | |
| Mercedes-benz | SPRINTER 5-t Van (B907) 516 CDI All-wheel Drive (9 | OM651.958 | 01.2019-12.2021 | |
| Mercedes-benz | V-CLASS (W447) V 200 CDI / d (447.811, 447.813, 44 | OM651.950 | 03.2014- | |
| Mercedes-benz | V-CLASS (W447) V 200 CDI / d 4-matic (447.811, 447 | OM651.950 | 04.2015- | |
| Mercedes-benz | V-CLASS (W447) V 220 CDI / d (447.811, 447.813, 44 | OM651.950 | 03.2014- | |
| Mercedes-benz | V-CLASS (W447) V 220 CDI / d 4-matic (447.811, 447 | OM651.950 | 03.2015- | |
| Mercedes-benz | V-CLASS (W447) V 250 BlueTEC / d (447.811, 447.813 | OM651.950 | 03.2014- | |
| Mercedes-benz | V-CLASS (W447) V 250 BlueTEC / d 4-matic (447.811, | OM651.950 | 12.2014- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 114 CDI (447.701, | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 114 CDI 4-matic ( | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 116 CDI (447.701, | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 116 CDI 4-matic ( | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 119 BlueTEC (447. | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Mixto (Double Cabin) (W447) 119 BlueTEC 4-mat | OM651.950 | 12.2014- | |
| Mercedes-benz | VITO Tourer (W447) 114 CDI (447.701, 447.703, 447. | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 114 CDI / 114 BlueTEC (447.701, | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Tourer (W447) 114 CDI / 114 BlueTEC 4-matic ( | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Tourer (W447) 114 CDI 4-matic (447.701, 447.7 | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 116 CDI (447.701, 447.703, 447. | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 116 CDI / 116 BlueTEC (447.701, | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Tourer (W447) 116 CDI / 116 BlueTEC 4-matic ( | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Tourer (W447) 116 CDI 4-matic (447.701, 447.7 | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 119 CDI (447.701, 447.703, 447. | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 119 CDI / 119 BlueTEC (447.701, | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Tourer (W447) 119 CDI / 119 BlueTEC 4-matic ( | OM651.950 | 12.2014- | |
| Mercedes-benz | VITO Tourer (W447) 119 CDI 4-matic (447.701, 447.7 | OM654.920 | 03.2019- | |
| Mercedes-benz | VITO Tourer (W447) 124 CDI (447.701, 447.703, 447. | OM654.920 | 04.2020-12.2020 | |
| Mercedes-benz | VITO Tourer (W447) 124 CDI 4-matic (447.701, 447.7 | OM654.920 | 04.2020-12.2020 | |
| Mercedes-benz | VITO Van (W447) 114 CDI (447.601, 447.603, 447.605 | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Van (W447) 114 CDI (447.601, 447.603, 447.605 | OM654.920 | 04.2020- | |
| Mercedes-benz | VITO Van (W447) 114 CDI 4x4 (447.601, 447.603, 447 | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Van (W447) 114 CDI 4x4 (447.601, 447.603, 447 | OM654.920 | 04.2020- | |
| Mercedes-benz | VITO Van (W447) 116 CDI (447.601, 447.603, 447.605 | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Van (W447) 116 CDI (447.601, 447.603, 447.605 | OM654.920 | 04.2020- | |
| Mercedes-benz | VITO Van (W447) 116 CDI 4x4 (447.601, 447.603, 447 | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Van (W447) 116 CDI 4x4 (447.601, 447.603, 447 | OM654.920 | 04.2020- | |
| Mercedes-benz | VITO Van (W447) 119 CDI (447.601, 447.603, 447.605 | OM654.920 | 04.2020- | |
| Mercedes-benz | VITO Van (W447) 119 CDI / BlueTEC (447.601, 447.60 | OM651.950 | 10.2014- | |
| Mercedes-benz | VITO Van (W447) 119 CDI / BlueTEC 4x4 (447.601, 44 | OM651.950 | 07.2015- | |
| Mercedes-benz | VITO Van (W447) 119 CDI 4x4 (447.601, 447.603, 447 | OM654.920 | 04.2020- |
