A3457S
Code: A3457S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: FG23S033
STANDARD LINE

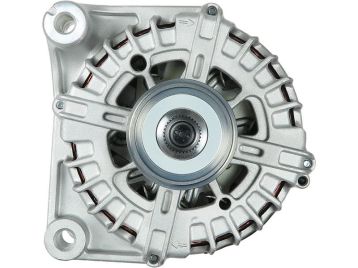

Brand new AS-PL Alternator
Size a: 57.00 mm
Size b: 28.00 mm
Size c: 75.00 mm
Amp.: 220 A
D.1: 10.50
D.2: 10.50
D.3: M10x1.5
Pulley: AFP
L.1: 190.00 mm
Plug: PL_2306
G: 6
O.d.1: 54.00 mm
Voltage: 12 v
Com id: 201
Reference number
| Code | Manufacturer | ||||||||||||||||||||||
| ALTE478 | 3EFFE | ||||||||||||||||||||||
| UD17234A | As-pl | ||||||||||||||||||||||
| 12317823345 | Bmw | ||||||||||||||||||||||
| 12317823347 | Bmw | ||||||||||||||||||||||
| 12318579419 | Bmw | ||||||||||||||||||||||
| CAL15402GS | Casco | ||||||||||||||||||||||
| 4256 | Cevam | ||||||||||||||||||||||
| DRA0678 | DELCO | ||||||||||||||||||||||
| S-9652 | Dixie | ||||||||||||||||||||||
| ALT00064 | Electrolog | ||||||||||||||||||||||
| 28-5983 | Elstock | ||||||||||||||||||||||
| 209207 | Era | ||||||||||||||||||||||
| 553953RIV | Kuhner | ||||||||||||||||||||||
| LRA03371 | Lucas | ||||||||||||||||||||||
| LRA3371 | Lucas | ||||||||||||||||||||||
| 55151176 | Meat & Doria | ||||||||||||||||||||||
| 89215390 | Powermax | ||||||||||||||||||||||
| 215.570.220 | Psh | ||||||||||||||||||||||
| 215.570.220.004 | Psh | ||||||||||||||||||||||
| 215.570.220.460 | Psh | ||||||||||||||||||||||
| A131.773 | Psh | ||||||||||||||||||||||
| A146.221 | Psh | ||||||||||||||||||||||
| 20179204OE | Real | ||||||||||||||||||||||
| ALT2377CP | Rollco | ||||||||||||||||||||||
| 2015402.1 | Sando | ||||||||||||||||||||||
| A12VA0788AS | Sidat | ||||||||||||||||||||||
| 439788 | Valeo | ||||||||||||||||||||||
| |||||||||||||||||||||||
| 440419 | Valeo | ||||||||||||||||||||||
| FG23S033 | Valeo | ||||||||||||||||||||||
| |||||||||||||||||||||||
| VAL439788 | Woodauto | ||||||||||||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| BMW | 1 (F20) 114 d | N47D16A | 11.2012-06.2015 | |
| BMW | 1 (F20) 116 d | N47D16A | 03.2012-02.2015 | |
| BMW | 1 (F20) 116 d | N47D20C | 07.2011-02.2015 | |
| BMW | 1 (F20) 118 d | B47D20A | 07.2011-06.2019 | |
| BMW | 1 (F20) 118 d | N47D20C | 07.2011-06.2019 | |
| BMW | 1 (F20) 118 d | N47D20C | 07.2011-02.2015 | |
| BMW | 1 (F20) 118 d xDrive | N47D20C | 07.2013-02.2015 | |
| BMW | 1 (F20) 120 d | B47D20A | 07.2011-06.2019 | |
| BMW | 1 (F20) 120 d | N47D20C | 07.2011-06.2019 | |
| BMW | 1 (F20) 120 d | N47D20C | 07.2011-02.2015 | |
| BMW | 1 (F20) 120 d | N47D20C | 07.2011-02.2015 | |
| BMW | 1 (F20) 120 d xDrive | N47D20C | 11.2012-02.2015 | |
| BMW | 1 (F20) 120 d xDrive | N47D20C | 11.2012-02.2015 | |
| BMW | 1 (F20) 125 d | B47D20B | 03.2012-06.2019 | |
| BMW | 1 (F20) 125 d | N47D20D | 03.2012-06.2019 | |
| BMW | 1 (F20) 125 d | N47D20D | 03.2012-02.2015 | |
| BMW | 1 (F21) 114 d | N47D16A | 07.2012-05.2019 | |
| BMW | 1 (F21) 116 d | N47D16A | 12.2011-02.2015 | |
| BMW | 1 (F21) 116 d | N47D20C | 07.2012-02.2015 | |
| BMW | 1 (F21) 118 d | N47D20C | 12.2011-06.2019 | |
| BMW | 1 (F21) 118 d | N47D20C | 12.2011-02.2015 | |
| BMW | 1 (F21) 118 d xDrive | N47D20C | 05.2013-02.2015 | |
| BMW | 1 (F21) 120 d | N47D20C | 07.2012-06.2019 | |
| BMW | 1 (F21) 120 d | N47D20C | 07.2012-02.2015 | |
| BMW | 1 (F21) 120 d | N47D20C | 01.2012-02.2015 | |
| BMW | 1 (F21) 120 d xDrive | N47D20C | 02.2012-02.2015 | |
| BMW | 1 (F21) 120 d xDrive | N47D20C | 01.2012-02.2015 | |
| BMW | 1 (F21) 125 d | N47D20D | 12.2011-05.2019 | |
| BMW | 1 (F21) 125 d | N47D20D | 12.2011-02.2015 | |
| BMW | 2 Convertible (F23) 218 d | B47D20A | 07.2015-09.2020 | |
| BMW | 2 Convertible (F23) 218 d | B47D20A | 07.2015-09.2020 | |
| BMW | 2 Convertible (F23) 220 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Convertible (F23) 220 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Convertible (F23) 220 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Convertible (F23) 225 d | B47D20B | 07.2015-05.2019 | |
| BMW | 2 Coupe (F22, F87) 218 d | N47D20C | 03.2014-06.2015 | |
| BMW | 2 Coupe (F22, F87) 218 d | B47D20A | 07.2015-09.2020 | |
| BMW | 2 Coupe (F22, F87) 218 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 218 d | N47D20C | 03.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d | N47D20C | 10.2013-06.2017 | |
| BMW | 2 Coupe (F22, F87) 220 d | N47D20C | 10.2012-11.2014 | |
| BMW | 2 Coupe (F22, F87) 220 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d | B47D20A | 11.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d | N47D20C | 11.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d | B47D20A | 03.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d xDrive | B47D20A | 06.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d xDrive | B47D20A | 03.2015-09.2020 | |
| BMW | 2 Coupe (F22, F87) 220 d xDrive | B47D20A | 06.2014-09.2020 | |
| BMW | 2 Coupe (F22, F87) 225 d | B47D20B | 07.2015-05.2019 | |
| BMW | 3 (F30, F80) 316 d | B47D20A | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 316 d | N47D20C | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 318 d | N47D20C | 03.2012-06.2015 | |
| BMW | 3 (F30, F80) 318 d | B47D20A | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 318 d | N47D20C | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 318 d xDrive | N47D20C | 07.2013-06.2015 | |
| BMW | 3 (F30, F80) 320 d | N47D20C | 11.2011-03.2016 | |
| BMW | 3 (F30, F80) 320 d | B47D20A | 11.2011-10.2018 | |
| BMW | 3 (F30, F80) 320 d | N47D20C | 11.2011-10.2018 | |
| BMW | 3 (F30, F80) 320 d | N47D20C | 11.2011-03.2016 | |
| BMW | 3 (F30, F80) 320 d xDrive | B47D20A | 08.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 d xDrive | N47D20C | 08.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 d xDrive | N47D20C | 08.2012-06.2015 | |
| BMW | 3 (F30, F80) 320 d xDrive | N47D20C | 08.2012-06.2015 | |
| BMW | 3 (F30, F80) 325 d | N47D20D | 03.2013-02.2016 | |
| BMW | 3 (F30, F80) 325 d | N47D20D | 03.2013-02.2016 | |
| BMW | 3 Gran Turismo (F34) 318 d | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 318 d | B47D20A | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 318 d | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d | B47D20A | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d xDrive | N47D20C | 07.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d xDrive | N47D20C | 07.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d xDrive | B47D20A | 07.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 320 d xDrive | N47D20C | 07.2013-06.2015 | |
| BMW | 3 Gran Turismo (F34) 325 d | N47D20D | 07.2013-06.2016 | |
| BMW | 3 Gran Turismo (F34) 325 d | N47D20D | 07.2013-06.2016 | |
| BMW | 3 Gran Turismo (F34) 335 i | N55B30A | 03.2013-06.2016 | |
| BMW | 3 Gran Turismo (F34) 335 i xDrive | N55B30A | 07.2013-06.2016 | |
| BMW | 3 Touring (F31) 316 d | B47D20A | 11.2012-06.2019 | |
| BMW | 3 Touring (F31) 316 d | N47D20C | 11.2012-06.2019 | |
| BMW | 3 Touring (F31) 318 d | N47D20C | 11.2012-06.2015 | |
| BMW | 3 Touring (F31) 318 d | B47D20A | 11.2012-06.2019 | |
| BMW | 3 Touring (F31) 318 d | N47D20C | 11.2012-06.2019 | |
| BMW | 3 Touring (F31) 318 d xDrive | N47D20C | 07.2013-06.2015 | |
| BMW | 3 Touring (F31) 320 d | N47D20C | 07.2012-02.2016 | |
| BMW | 3 Touring (F31) 320 d | B47D20A | 07.2012-06.2019 | |
| BMW | 3 Touring (F31) 320 d | N47D20C | 07.2012-06.2019 | |
| BMW | 3 Touring (F31) 320 d | N47D20C | 07.2012-02.2016 | |
| BMW | 3 Touring (F31) 320 d xDrive | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Touring (F31) 320 d xDrive | N47D20C | 03.2013-06.2015 | |
| BMW | 3 Touring (F31) 320 d xDrive | B47D20A | 03.2013-06.2019 | |
| BMW | 3 Touring (F31) 320 d xDrive | N47D20C | 03.2013-06.2019 | |
| BMW | 3 Touring (F31) 325 d | N47D20D | 03.2013-02.2016 | |
| BMW | 3 Touring (F31) 325 d | N47D20D | 03.2013-02.2016 | |
| BMW | 4 Convertible (F33, F83) 420 d | N47D20C | 10.2013-06.2015 | |
| BMW | 4 Convertible (F33, F83) 420 d | N47D20C | 10.2013-06.2015 | |
| BMW | 4 Convertible (F33, F83) 420 d | B47D20A | 11.2013-07.2020 | |
| BMW | 4 Convertible (F33, F83) 420 d | N47D20C | 11.2013-07.2020 | |
| BMW | 4 Convertible (F33, F83) 425 d | N47D20D | 07.2014-02.2016 | |
| BMW | 4 Coupe (F32, F82) 420 d | N47D20C | 07.2013-02.2015 | |
| BMW | 4 Coupe (F32, F82) 420 d | B47D20A | 07.2013-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 d | N47D20C | 07.2013-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 d | N47D20C | 07.2013-03.2015 | |
| BMW | 4 Coupe (F32, F82) 420 d xDrive | N47D20C | 11.2013-02.2015 | |
| BMW | 4 Coupe (F32, F82) 420 d xDrive | B47D20A | 11.2013-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 d xDrive | N47D20C | 11.2013-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 d xDrive | N47D20C | 11.2013-03.2015 | |
| BMW | 4 Coupe (F32, F82) 425 d | N47D20D | 03.2014-02.2016 | |
| BMW | 4 Coupe (F32, F82) 425 d | N47D20D | 03.2014-02.2016 | |
| BMW | 4 Gran Coupe (F36) 418 d | N47D20C | 03.2014-06.2015 | |
| BMW | 4 Gran Coupe (F36) 418 d | B47D20A | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 418 d | N47D20C | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 d | N47D20C | 03.2014-02.2015 | |
| BMW | 4 Gran Coupe (F36) 420 d | B47D20A | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 d | N47D20C | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 d | N47D20C | 03.2014-02.2015 | |
| BMW | 4 Gran Coupe (F36) 420 d xDrive | N47D20C | 03.2014-02.2015 | |
| BMW | 4 Gran Coupe (F36) 420 d xDrive | B47D20A | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 d xDrive | N47D20C | 03.2014-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 d xDrive | N47D20C | 03.2014-02.2015 | |
| BMW | X5 (F15, F85) M 50 d | N57D30C | 12.2013-07.2018 | |
| BMW | X5 (F15, F85) sDrive 25 d | N47D20D | 12.2013-07.2015 | |
| BMW | X5 (F15, F85) sDrive 25 d | B47D20B | 12.2013-07.2018 | |
| BMW | X5 (F15, F85) sDrive 25 d | N47D20D | 12.2013-07.2018 | |
| BMW | X5 (F15, F85) xDrive 25 d | N47D20D | 12.2013-07.2015 | |
| BMW | X5 (F15, F85) xDrive 25 d | N47D20D | 12.2013-07.2015 | |
| BMW | X5 (F15, F85) xDrive 25 d | N57D30A | 04.2014-07.2018 | |
| BMW | X5 (F15, F85) xDrive 30 d | N57D30A | 08.2013-07.2018 | |
| BMW | X5 (F15, F85) xDrive 30 d | N57D30A | 08.2013-07.2018 | |
| BMW | X5 (F15, F85) xDrive 30 d | N57D30A | 12.2013-07.2018 | |
| BMW | X5 (F15, F85) xDrive 30 d | N57D30A | 08.2013-07.2018 | |
| BMW | X5 (F15, F85) xDrive 40 d | N57D30B | 12.2013-07.2018 | |
| BMW | X6 (F16, F86) M 50 d | N57D30C | 08.2014-07.2019 | |
| BMW | X6 (F16, F86) xDrive 30 d | N57D30A | 08.2014-07.2019 | |
| BMW | X6 (F16, F86) xDrive 30 d | N57D30A | 08.2014-07.2019 | |
| BMW | X6 (F16, F86) xDrive 30 d | N57D30A | 08.2014-07.2019 | |
| BMW | X6 (F16, F86) xDrive 30 d | N57D30A | 12.2014-07.2019 | |
| BMW | X6 (F16, F86) xDrive 40 d | N57D30B | 12.2014-07.2019 |
