A3652S
Code: A3652S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: TG12G279
STANDARD LINE

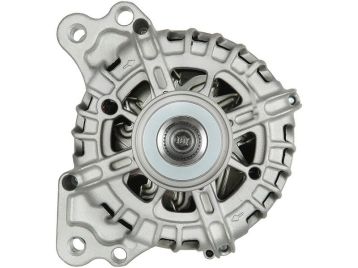

Brand new AS-PL Alternator
Size a: 29.00 mm
Size b: 14.00 mm
Size c: 60.50 mm
Amp.: 110 A
D.1: 8.50
D.2: 8.50
D.3: M8x1.25
D.4: M8x1.25
Pulley: AFP
L.1: 183.00 mm
Plug: PL_2306
G: 6
O.d.1: 49.50 mm
Voltage: 12 v
Com id: 17
Reference number
| Code | Manufacturer | |
| UD19569A | As-pl | |
| TG12C279 | Valeo | |
| TG12G279 | Valeo | |
| 04E903023A | Vw |
Usage
| Brand | Model | Type | Year | Note |
| AUDI | A1 (8X1, 8XK) 1.2 TFSI | CBZA | 05.2010-04.2015 | |
| AUDI | A1 Sportback (8XA, 8XF) 1.2 TFSI | CBZA | 01.2012-04.2015 | |
| AUDI | A3 (8P1) 1.2 TSI | CBZB | 04.2010-08.2012 | |
| AUDI | A3 Convertible (8P7) 1.2 TFSI | CBZB | 03.2010-05.2013 | |
| AUDI | A3 Sportback (8PA) 1.2 TSI | CBZB | 04.2010-03.2013 | |
| SEAT | ALTEA (5P1) 1.2 TSI | CBZB | 04.2010-07.2015 | |
| SEAT | ALTEA XL (5P5, 5P8) 1.2 TSI | CBZB | 04.2010-07.2015 | |
| SEAT | IBIZA IV (6J5, 6P1) 1.2 TSI | CBZA | 08.2012-05.2015 | |
| SEAT | IBIZA IV (6J5, 6P1) 1.2 TSI | CBZB | 09.2010-03.2012 | |
| SEAT | IBIZA IV SC (6J1, 6P5) 1.2 TSI | CBZA | 08.2012-05.2015 | |
| SEAT | IBIZA IV SC (6J1, 6P5) 1.2 TSI | CBZB | 09.2010-05.2015 | |
| SEAT | IBIZA IV ST (6J8, 6P8) 1.2 TSI | CBZA | 09.2012-05.2015 | |
| SEAT | LEON (1P1) 1.2 TSI | CBZB | 02.2010-12.2012 | |
| SEAT | TOLEDO IV (KG3) 1.2 TSI | CBZA | 07.2012-06.2015 | |
| SEAT | TOLEDO IV (KG3) 1.2 TSI | CBZB | 07.2012-06.2015 | |
| SKODA | FABIA II (542) 1.2 TSI | CBZA | 03.2010-12.2014 | |
| SKODA | FABIA II (542) 1.2 TSI | CBZB | 03.2010-12.2014 | |
| SKODA | FABIA II Combi (545) 1.2 TSI | CBZA | 03.2010-12.2014 | |
| SKODA | FABIA II Combi (545) 1.2 TSI | CBZB | 03.2010-12.2014 | |
| SKODA | OCTAVIA II (1Z3) 1.2 TSI | CBZB | 02.2010-06.2013 | |
| SKODA | RAPID (NH3, NK3, NK6) 1.2 TSI | CBZA | 07.2012-05.2015 | |
| SKODA | RAPID (NH3, NK3, NK6) 1.2 TSI | CBZB | 07.2012-05.2015 | |
| SKODA | ROOMSTER (5J7) 1.2 TSI | CBZA | 03.2010-05.2015 | |
| SKODA | ROOMSTER (5J7) 1.2 TSI | CBZB | 03.2010-05.2015 | |
| SKODA | ROOMSTER Praktik (5J) 1.2 TSI | CBZA | 03.2010-05.2015 | |
| SKODA | YETI (5L) 1.2 TSI | CBZB | 09.2009-05.2015 | |
| VW | BEETLE (5C1, 5C2) 1.2 TSI | CBZB | 07.2011-07.2019 | |
| VW | CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TS | CBZA | 09.2010-05.2015 | |
| VW | CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TS | CBZB | 09.2010-05.2015 | |
| VW | CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.2 TSI | CBZA | 09.2010-05.2015 | |
| VW | CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.2 TSI | CBZB | 09.2010-05.2015 | |
| VW | GOLF PLUS V (5M1, 521) 1.2 TSI | CBZA | 05.2010-12.2013 | |
| VW | GOLF PLUS V (5M1, 521) 1.2 TSI | CBZB | 11.2009-12.2013 | |
| VW | GOLF PLUS Van (521) 1.2 TSi | CBZB | 11.2009-08.2014 | |
| VW | GOLF VAN VI Variant (AJ5) 1.2 TSi | CBZB | 09.2009-05.2014 | |
| VW | GOLF VI (5K1) 1.2 TSI | CBZA | 05.2010-11.2012 | |
| VW | GOLF VI (5K1) 1.2 TSI | CBZB | 11.2008-11.2012 | |
| VW | GOLF VI Convertible (517) 1.2 TSI | CBZB | 03.2011-05.2016 | |
| VW | GOLF VI Van (5K1) 1.2 TSi | CBZA | 05.2010-11.2012 | |
| VW | GOLF VI Van (5K1) 1.2 TSi BlueMotion | CBZB | 05.2009-11.2012 | |
| VW | GOLF VI Variant (AJ5) 1.2 TSI | CBZA | 07.2010-07.2013 | |
| VW | GOLF VI Variant (AJ5) 1.2 TSI | CBZB | 07.2009-07.2013 | |
| VW | JETTA IV (162, 163, AV3, AV2) 1.2 TSI | CBZB | 10.2010-12.2017 | |
| VW | POLO V (6R1, 6C1) 1.2 TSI | CBZB | 11.2009-05.2022 | |
| VW | POLO V (6R1, 6C1) 1.2 TSI | CBZC | 05.2011-05.2014 | |
| VW | POLO Van (6R) 1.2 TSi | CBZC | 05.2011-05.2014 | |
| VW | TOURAN (1T3) 1.2 TSI | CBZB | 05.2010-05.2015 | |
| VW | TOURAN VAN (1T3) 1.2 TSI | CBZB | 05.2010-05.2015 |
