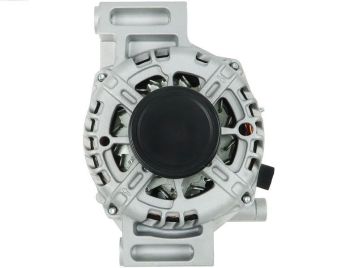

A3684S
Code: A3684S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: FG12T142
STANDARD LINE
Brand new AS-PL Alternator
Size a: 37.00 mm
Size c: 35.00 mm
Amp.: 115 A
D.1: 9.50
D.2: 9.50
D.3: 10.50
E.1: 65.00 mm
E.2: 65.00 mm
Pulley: AFP
L.1: 173.00 mm
Plug: PL_2306
G: 6
O.d.1: 52.00 mm
Voltage: 12 v
Com id: 184
Reference number
| Code | Manufacturer | |
| UD101072A | As-pl | |
| ALV3934 | Krauf | |
| 27060-F2010 | Toyota | |
| A2714493 | Valeo | |
| FG12T142 | Valeo | |
| 90-22-5779 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| LEXUS | ES (_Z10_, _A10_, _H10_) 250 (AXZA10) | A25A-FKS | 10.2018- | |
| TOYOTA | COROLLA CROSS (ZVG1_, ZSG1_, MXGH1_, MXGA1_) 2.0 V | M20A-FXS | 08.2022- | |
| TOYOTA | COROLLA CROSS (ZVG1_, ZSG1_, MXGH1_, MXGA1_) 2.0 V | M20A-FXS | 08.2022- | |
| TOYOTA | COROLLA Estate (_E21_) 2.0 Hybrid (MZEH12) | M20A-FXS | 05.2021- | |
| TOYOTA | COROLLA Estate (_E21_) 2.0 Hybrid (MZEH12) | M20A-FXS | 02.2019- | |
| TOYOTA | COROLLA Estate (_E21_) 2.0 Hybrid (MZEH19) | M20A-FXS | 01.2023- | |
| TOYOTA | COROLLA Hatchback (_E21_, _EA1_, _EH1_) 2.0 Hybrid | M20A-FXS | 05.2021- | |
| TOYOTA | COROLLA Hatchback (_E21_, _EA1_, _EH1_) 2.0 Hybrid | M20A-FXS | 02.2019- | |
| TOYOTA | COROLLA Hatchback (_E21_, _EA1_, _EH1_) 2.0 Hybrid | M20A-FXS | 01.2023- | |
| TOYOTA | RAV 4 V (_A5_, _H5_) 2.5 VVTi AWD (AXAA54) | A25A-FKS | 12.2018- |
