  2. A3695S



A3695S


Code: A3695S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: EG15T020
STANDARD LINE

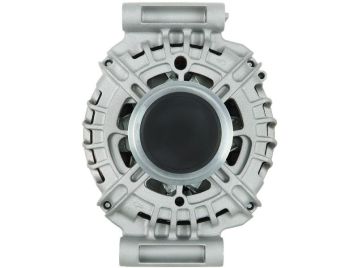

Brand new AS-PL Alternator


Size a: 31.00 mm
Size c: 56.00 mm
Amp.: 150 A
D.1: 10.00
D.2: 10.00
D.3: 10.00
D.4: 10.00
E.1: 70.00 mm
E.2: 70.00 mm
Pulley: AFP
L.1: 201.00 mm
Plug: PL_2306
G: 6
O.d.1: 56.00 mm
Voltage: 12 v
Com id: 105


Reference number

CodeManufacturer
UD30067AAs-pl
AEG1533Autoelectro
0125716009 Bosch
0125716010 Bosch
CAL15A91GSCasco
40921Cevam
DRA1996DELCO
28-8745Elstock
556200RIVKuhner
LRA04636Lucas
LRA4636Lucas
205.580.150.505Psh
2017919AOEReal
2015A91.1Sando
EG15T020 Valeo
EG15T026 Valeo
06K903023BVw
06K903023DVw
06K903023DXVw
06K903023GVw
06K903023GXVw
UNIT BOM 208-2078Wai / Transpo
90-22-5768Wilson


Usage

BrandModelTypeYearNote
AUDIA3 (8V1, 8VK) 2.0 TFSICZPB05.2016-12.2017
AUDIA3 (8V1, 8VK) 2.0 TFSI quattroCZPB05.2016-12.2017
AUDIA3 (8V1, 8VK) S3 quattroCJXF05.2014-08.2016
AUDIA3 (8V1, 8VK) S3 quattroCJXG06.2016-12.2017
AUDIA3 (8V1, 8VK) S3 quattroDJHA06.2016-12.2017
AUDIA3 (8V1, 8VK) S3 quattroCJXD07.2016-12.2017
AUDIA3 (8V1, 8VK) S3 quattroDJHB07.2016-12.2017
AUDIA3 Convertible (8V7, 8VE) 2.0 TFSICZPB05.2016-10.2020
AUDIA3 Convertible (8V7, 8VE) 2.0 TFSI quattroCNTC05.2014-10.2020
AUDIA3 Convertible (8V7, 8VE) S3 quattroCJXC04.2014-10.2020
AUDIA3 Convertible (8V7, 8VE) S3 quattroDNUE04.2014-10.2020
AUDIA3 Convertible (8V7, 8VE) S3 quattroDJHA07.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSICHHB11.2015-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSICNTC11.2015-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSICZPB05.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSIDKZA05.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSI quattroCZPB05.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) 2.0 TFSI quattroDKZA05.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) S3 quattroCJXC10.2013-10.2020
AUDIA3 Limousine (8VS, 8VM) S3 quattroDNUE10.2013-10.2020
AUDIA3 Limousine (8VS, 8VM) S3 quattroCJXG06.2016-10.2020
AUDIA3 Limousine (8VS, 8VM) S3 quattroDJHA06.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) 2.0 TFSICZPB05.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) 2.0 TFSIDKZA05.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) 2.0 TFSI quattroCZPB05.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) 2.0 TFSI quattroDKZA05.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroCJXC11.2012-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroDNUE11.2012-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroCJXF05.2014-08.2016
AUDIA3 Sportback (8VA, 8VF) S3 quattroCJXG06.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroDJHA06.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroCJXD07.2016-10.2020
AUDIA3 Sportback (8VA, 8VF) S3 quattroDJHB07.2016-10.2020
AUDITT (FV3, FVP) 2.0 TTS quattroDNUF08.2018-
AUDITT (FV3, FVP) 40 TFSIDKZB07.2018-
AUDITT (FV3, FVP) 40 TFSIDNNB07.2018-
AUDITT (FV3, FVP) 45 TFSIDKTB07.2018-
AUDITT (FV3, FVP) 45 TFSIDNPA07.2018-
AUDITT (FV3, FVP) 45 TFSI quattroDKTB07.2018-
AUDITT (FV3, FVP) 45 TFSI quattroDNPA07.2018-
AUDITT (FV3, FVP) TTS TFSI quattroDNFD01.2021-
AUDITT Roadster (FV9, FVR) 2.0 TTS quattroDNUF08.2018-
AUDITT Roadster (FV9, FVR) 40 TFSIDKZB07.2018-
AUDITT Roadster (FV9, FVR) 40 TFSIDNNB07.2018-
AUDITT Roadster (FV9, FVR) 45 TFSIDKTB07.2018-
AUDITT Roadster (FV9, FVR) 45 TFSIDNPA07.2018-
AUDITT Roadster (FV9, FVR) 45 TFSI quattroDKTB07.2018-
AUDITT Roadster (FV9, FVR) 45 TFSI quattroDNPA07.2018-
AUDITT Roadster (FV9, FVR) TTS TFSI quattroDNFD11.2020-
VWGOLF ALLTRACK VII Variant (BA5, BV5) 1.8 TSI 4motiCJSB12.2014-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICHHB04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICNTC04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICXCB04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICXDA04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICHHA04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTICXDB04.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTIDKTB03.2017-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTIDLBA03.2017-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI ClubsportCJXE02.2016-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Clubsport SCJXG09.2016-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI TCRCJXH11.2018-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI TCRDNUC11.2018-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionCJXB11.2013-03.2017
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionCJXC11.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionDNUE11.2013-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionCJXG12.2016-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionDJHA12.2016-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionCJXD12.2016-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionDJHB12.2016-08.2020
VWGOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motionDNUC12.2016-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionCJXC03.2015-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionDNUE03.2015-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionCJXB03.2015-03.2017
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionCJXG12.2016-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionDJHA12.2016-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionCJXD12.2016-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionDJHB12.2016-08.2020
VWGOLF VII Variant (BA5, BV5) 2.0 R 4motionDNUC12.2016-08.2020
VWJETTA IV (162, 163, AV3, AV2) 1.8 TSICPKA07.2014-12.2017
VWJETTA IV (162, 163, AV3, AV2) 1.8 TSICPRA07.2014-12.2017
