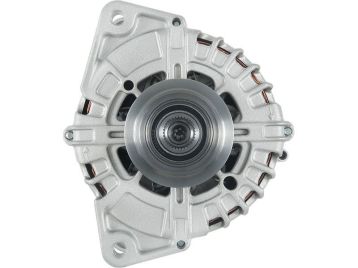

A3860S
Code: A3860S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: CG25S044
STANDARD LINE
Brand new AS-PL Alternator
Size a: 28.00 mm
Size b: 14.00 mm
Size c: 60.00 mm
Amp.: 250 A
D.1: 8.50
D.2: 8.50
D.3: M8x1.25
D.4: M8x1.25
Pulley: AFP
L.1: 182.00 mm
Plug: PL_2306
G: 4
O.d.1: 64.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||
| UD103797A | As-pl | ||||
| G103562 | BTS Turbo | ||||
| CAL15A34AS | Casco | ||||
| CAL15A34GS | Casco | ||||
| 40918 | Cevam | ||||
| 2253362502 | Dri | ||||
| 58240 | Eai | ||||
| ALT00945 | Electrolog | ||||
| 28-8738 | Elstock | ||||
| 9091711 | Friesen | ||||
| 20015A34OV | Itab Automotive | ||||
| ALV3984 | Krauf | ||||
| 556758RIV | Kuhner | ||||
| LRA04629 | Lucas | ||||
| LRA4629 | Lucas | ||||
| 0009061805 | Mercedes | ||||
| A0009061805 | Mercedes | ||||
| 89214422 | Powermax | ||||
| 555.970.250.000 | Psh | ||||
| 555.970.250.440 | Psh | ||||
| 555.970.250.500 | Psh | ||||
| 2017943ABN | Real | ||||
| 2017943AOE | Real | ||||
| 2015A34.0 | Sando | ||||
| 2015A34.1 | Sando | ||||
| ALT17A340A | SIOM | ||||
| ME8171 | Snra | ||||
| STX102309R | Stardax | ||||
| 240ST58 | Startcar | ||||
| AL04625 | Tmi | ||||
| 443236 | Valeo | ||||
| CG25S044 | Valeo | ||||
| |||||
| 22000N | Wai / Transpo | ||||
| WG2471804 | Wilmink Group | ||||
| WAL03929 | Walker | ||||
Usage
| Brand | Model | Type | Year | Note |
| Mercedes-benz | G-CLASS (W463) G 500 (463.222, 463.236, 463.237, 4 | M273.963 | 05.2008-08.2015 | |
| Mercedes-benz | G-CLASS (W463) G 500 (463.222, 463.236, 463.237, 4 | M273.969 | 05.2008-08.2015 | |
| Mercedes-benz | G-CLASS (W463) G 500 (463.260, 463.261) | M176.980 | 01.2018- | |
| Mercedes-benz | S-CLASS (W222, V222, X222) S 560 (222.083, 222.183 | M176.980 | 07.2017-07.2020 | |
| Mercedes-benz | S-CLASS (W222, V222, X222) S 560 4-matic (222.086, | M176.980 | 05.2017-07.2020 | |
| Mercedes-benz | S-CLASS (W222, V222, X222) S 560 Maybach (222.983) | M176.980 | 07.2017-07.2020 | |
| Mercedes-benz | S-CLASS (W222, V222, X222) S 560 Maybach 4-matic ( | M176.980 | 07.2017-07.2020 | |
| Mercedes-benz | S-CLASS Convertible (A217) S 560 (217.483) | M176.980 | 10.2017-07.2020 | |
| Mercedes-benz | S-CLASS Coupe (C217) S 560 (217.383) | M176.980 | 10.2017-07.2020 | |
| Mercedes-benz | S-CLASS Coupe (C217) S 560 4-matic (217.386) | M176.980 | 10.2017-07.2020 |
