A5303
Code: A5303
Category: Alternators
Manufacturer: MITSUBISHI
Supplier: As-pl
STANDARD LINE

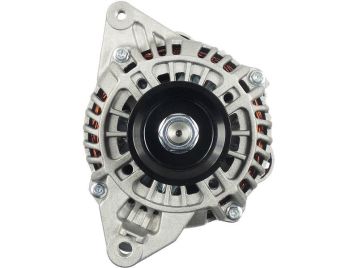

Brand new AS-PL Alternator
Size a: 25.50 mm
Size b: 17.00 mm
Size c: 49.50 mm
Amp.: 105 A
D.1: M8x1.25
D.2: 10.50
D.3: 10.50
Pulley: AP
L.1: 173.00 mm
Plug: PL_2004
G: 6
O.d.1: 65.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||
| UD11222A | As-pl | ||||
| 12618 | DELCO | ||||
| A-8689 | Dixie | ||||
| A003TB6491 | MITSUBISHI | ||||
| A3TB6491 | MITSUBISHI | ||||
| MN176476 | MITSUBISHI | ||||
| |||||
| 11057R | Wai / Transpo | ||||
| 90-27-3338 | Wilson | ||||
Usage
| Brand | Model | Type | Year | Note |
| MITSUBISHI | DIAMANTE II Saloon (F4_A, F3_A) 3.5 4WD (KJ8F) | 6G74(SOHC24V) | 04.1996-06.2003 | |
| MITSUBISHI | MAGNA Estate (TE) 2.4 | 4G64(16V) | 04.1996-06.1997 | |
| MITSUBISHI | MAGNA Estate (TE) 3.0 i | 6G72(SOHC24V) | 04.1996-06.1997 | |
| MITSUBISHI | MAGNA Estate (TH) 3.5 | 6G74(SOHC24V) | 03.1999-08.2000 | |
| MITSUBISHI | MAGNA Estate (TJ) 3.5 i Sports VR-X | 6G74(SOHC24V) | 08.2000-05.2003 | |
| MITSUBISHI | MAGNA Saloon (TE) 2.4 | 4G64(16V) | 04.1996-06.1997 | |
| MITSUBISHI | MAGNA Saloon (TE) 3.0 i | 6G72(SOHC24V) | 04.1996-06.1997 | |
| MITSUBISHI | MAGNA Saloon (TH) 3.5 i | 6G74(SOHC24V) | 03.1999-08.2000 | |
| MITSUBISHI | MAGNA Saloon (TJ) 3.0 | 6G72(SOHC24V) | 08.2000-05.2003 | |
| MITSUBISHI | MAGNA Saloon (TJ) 3.0 i | 6G72(SOHC24V) | 08.2000-05.2003 | |
| MITSUBISHI | MAGNA Saloon (TJ) 3.5 i Series II Ralliart | 6G74(SOHC24V) | 08.2002-05.2003 | |
| MITSUBISHI | MAGNA Saloon (TJ) 3.5 Series II Sports VR-X | 6G74(SOHC24V) | 08.2002-05.2003 | |
| MITSUBISHI | VERADA Estate (KE) 3.5 i | 6G74(SOHC24V) | 10.1996-06.1997 | |
| MITSUBISHI | VERADA Saloon (KE) 3.5 i | 6G74(SOHC24V) | 10.1996-10.1997 |
