A5407S
Code: A5407S
Category: Alternators
Manufacturer: MITSUBISHI
Supplier: As-pl
: A2TG0891
STANDARD LINE

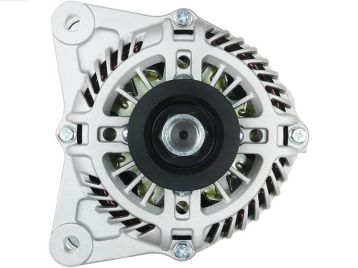

Brand new AS-PL Alternator
Size a: 34.00 mm
Size b: 14.00 mm
Size c: 58.50 mm
Amp.: 90 A
D.1: 8.50
D.2: 8.50
D.3: M8x1.25
D.4: M8x1.25
Pulley: AP
L.1: 176.00 mm
Plug: PL_3320
G: 7
O.d.1: 55.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| UD18939A | As-pl | |||||||
| 101N10106 | DELCO | |||||||
| DR101N10106 | DELCO | |||||||
| 209320 | Era | |||||||
| LR190772 | Hitachi | |||||||
| ||||||||
| ALH9772 | Krauf | |||||||
| A002TG0891 | MITSUBISHI | |||||||
| ||||||||
| A002TG0891ZC | MITSUBISHI | |||||||
| A002TG0891ZJ | MITSUBISHI | |||||||
| A2TG0891 | MITSUBISHI | |||||||
| ||||||||
| A2TG0891ZC | MITSUBISHI | |||||||
| A2TG0891ZJ | MITSUBISHI | |||||||
| 23100-1HK1A | Nissan | |||||||
| 23100-CJ41A | Nissan | |||||||
| 23100-JX30A | Nissan | |||||||
Usage
| Brand | Model | Type | Year | Note |
| NISSAN | MICRA III (K12) 1.5 160 SR (YK12) | HR15DE | 05.2005-06.2010 | |
| NISSAN | MICRA IV (K13K, K13KK) 1.5 | HR15DE | 12.2011-09.2015 | |
| NISSAN | MICRA IV (K13K, K13KK) 1.5 | HR15DE | 01.2011-09.2015 | |
| NISSAN | MICRA IV (K13K, K13KK) 1.5 | HR15DE | 11.2010-09.2015 | |
| NISSAN | MICRA IV (K13K, K13KK) 1.5 NISMO S | HR15DE | 06.2013- | |
| NISSAN | TIIDA Hatchback (C11) 1.5 (C11) | HR15DE | 05.2004-08.2012 | |
| NISSAN | TIIDA Hatchback (C11) 1.5 4x4 (NC11) | HR15DE | 05.2004-02.2007 | |
| NISSAN | TIIDA Saloon (SC11) 1.5 (SC11) | HR15DE | 10.2004-10.2012 | |
| NISSAN | TIIDA Saloon (SC11) 1.5 4WD (SNC11) | HR15DE | 03.2007-06.2013 | |
| NISSAN | VERSA I 1.6 | HR16DE | 09.2008-06.2013 | |
| NISSAN | VERSA II (N17_) 1.6 | HR16DE | 08.2011- |
