A5523S
Code: A5523S
Category: Alternators
Manufacturer: MITSUBISHI
Supplier: As-pl
: A2TZ0081ZD
STANDARD LINE

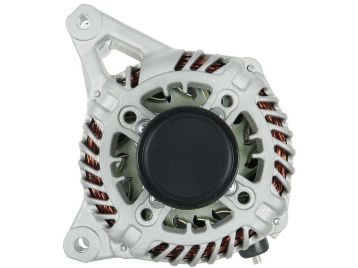

Brand new AS-PL Alternator
Size a: 47.00 mm
Size b: 21.00 mm
Size c: 40.50 mm
Amp.: 150 A
D.1: 9.00
D.2: 9.00
D.3: M8x1.25
D.4: M8x1.25
Pulley: AFP
L.1: 186.00 mm
Plug: PL_2305
G: 6
O.d.1: 52.00 mm
Voltage: 12 v
Com id: 13
Reference number
| Code | Manufacturer | |||||||
| UD101040A | As-pl | |||||||
| ALT5670 | Electrolog | |||||||
| JX6T-10300-HB | Ford | |||||||
| ALM4073 | Krauf | |||||||
| 556322RIM | Kuhner | |||||||
| A002TZ0081 | MITSUBISHI | |||||||
| A002TZ0081ZD | MITSUBISHI | |||||||
| ||||||||
| A2TZ0081 | MITSUBISHI | |||||||
| A2TZ0081ZD | MITSUBISHI | |||||||
| ||||||||
| AM-3119 | Auto Magneto | |||||||
Usage
| Brand | Model | Type | Year | Note |
| HONDA | JAZZ IV (GK_) 1.5 | L15B1 | 01.2015- |
