A6715S
Code: A6715S
Category: Alternators
Manufacturer: Denso
Supplier: As-pl
: 104211-3590
STANDARD LINE
Brand new AS-PL Alternator

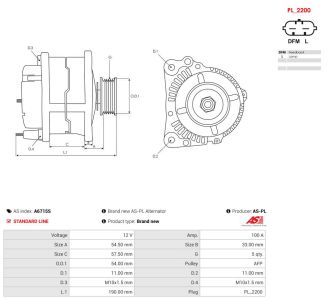

Size a: 54.50 mm
Size b: 33.00 mm
Size c: 57.50 mm
Amp.: 100 A
D.1: 11.00
D.2: 11.00
D.3: M10x1.5
D.4: M10x1.5
Pulley: AFP
L.1: 190.00 mm
Plug: PL_2200
G: 5
O.d.1: 54.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| ALTJ066 | 3EFFE | |||||||
| PRAJ066 | 3EFFE | |||||||
| CGB-87687 | Ainde | |||||||
| ANM98812 | Andel | |||||||
| UD104313A | As-pl | |||||||
| L52490 | Atl Autotechnik | |||||||
| ADN478 | Autoteam | |||||||
| G101841 | BTS Turbo | |||||||
| G103671 | BTS Turbo | |||||||
| 116696 | Cargo | |||||||
| F032116696 | Cargo | |||||||
| BREF032116696 | Carwood Group | |||||||
| CAL40478AS | Casco | |||||||
| CAL40478GS | Casco | |||||||
| 9016 | Cevam | |||||||
| 011629 | Da Silva | |||||||
| DRA1812 | DELCO | |||||||
| 021080-2340 | Denso | |||||||
| 104211-3590 | Denso | |||||||
| ||||||||
| DAN1322 | Denso | |||||||
| 2283101002 | Dri | |||||||
| 57662 | Eai | |||||||
| ALT60038 | Electrolog | |||||||
| 28-7687 | Elstock | |||||||
| 209114 | Era | |||||||
| 12090845 | Eurotec | |||||||
| 115381 | Farcom | |||||||
| 9090990 | Friesen | |||||||
| 8EL015659-231 | Hella | |||||||
| 3111086 | Henkel Parts | |||||||
| 32004002 | Herth+buss | |||||||
| 20040478OV | Itab Automotive | |||||||
| ALN3590 | Krauf | |||||||
| 554734RI | Kuhner | |||||||
| 554734RID | Kuhner | |||||||
| 442661 | Logistik | |||||||
| LRA04078 | Lucas | |||||||
| LRA4078 | Lucas | |||||||
| 063731508010 | Magneti Marelli | |||||||
| 943315081010 | Magneti Marelli | |||||||
| 4852013 | Nk | |||||||
| 1202373 | Opel | |||||||
| 1202472 | Opel | |||||||
| 13520812 | Opel | |||||||
| 13585664 | Opel | |||||||
| 13585664B | Opel | |||||||
| 95519907 | Opel | |||||||
| 89216674 | Powermax | |||||||
| 20132874BN | Real | |||||||
| 20132874OE | Real | |||||||
| ALT2516CP | Rollco | |||||||
| 2040478.0 | Sando | |||||||
| 2040478.1 | Sando | |||||||
| ALT424780 | SIOM | |||||||
| ALT424780A | SIOM | |||||||
| OP8140 | Snra | |||||||
| STX110385 | Stardax | |||||||
| 662ST75 | Startcar | |||||||
| AL03620 | Tmi | |||||||
| 831024022 | Triscan | |||||||
| 440504 | Valeo | |||||||
| 135.526.100.050 | WAI | |||||||
| 135.526.100.260 | WAI | |||||||
| 135.526.100.340 | WAI | |||||||
| 135.526.100.440 | WAI | |||||||
| 135.526.100.460 | WAI | |||||||
| 21218N | WAI | |||||||
| A129.719 | WAI | |||||||
| A147.049 | WAI | |||||||
| WG1916821 | Wilmink Group | |||||||
| DENDAN1322 | Woodauto | |||||||
| 20-3068 | Airstal | |||||||
| WAL00872 | Walker | |||||||
Usage
| Brand | Model | Type | Year | Note |
| OPEL | CORSA E (X15) 1.2 (08, 68) | B12XEL | 09.2014- | |
| OPEL | CORSA E (X15) 1.2 (08, 68) | D12XEL | 09.2014- | |
| OPEL | CORSA E (X15) 1.4 (08, 68) | B14XEL | 09.2014- | |
| OPEL | CORSA E (X15) 1.4 (08, 68) | D14XEL | 09.2014- | |
| OPEL | CORSA E (X15) 1.4 (08, 68) | B14XEJ | 09.2014- | |
| OPEL | CORSA E (X15) 1.4 (08, 68) | D14XEJ | 09.2014- | |
| OPEL | CORSA E (X15) 1.4 LPG (08, 68) | B14XEL | 03.2015- | |
| OPEL | CORSA E (X15) 1.4 LPG (08, 68) | B14XEL | 11.2015- | |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | B14NEJ | 09.2014-06.2019 | |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | D14NEJ | 09.2014-06.2019 | |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | B14NEH | 03.2015- | |
| OPEL | CORSA E (X15) 1.4 Turbo (08, 68) | D14NEH | 03.2015- | |
| OPEL | CORSA E Hatchback Van (X15) 1.2 (08) | B12XEL | 01.2015- | |
| OPEL | CORSA E Hatchback Van (X15) 1.4 (08) | B14XEL | 09.2014- | |
| OPEL | CORSA E Hatchback Van (X15) 1.4 (08) | B14XEJ | 09.2014- | |
| TOYOTA | AURIS (_E15_) 2.0 D-4D (ADE150_, ADE150R) | 1AD-FTV | 10.2006-09.2012 | |
| TOYOTA | AURIS (_E15_) 2.2 D (ADE157_, ADE151_, ADE151R, AD | 2AD-FHV | 11.2006-09.2012 | |
| TOYOTA | AVENSIS (_T25_) 2.0 D-4D (ADT250_, ADT250R) | 1AD-FTV | 03.2006-11.2008 | |
| TOYOTA | AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2AD-FTV | 10.2005-11.2008 | |
| TOYOTA | AVENSIS (_T25_) 2.2 D-CAT (ADT251_, ADT251R) | 2AD-FHV | 07.2005-11.2008 | |
| TOYOTA | AVENSIS Estate (_T25_) 2.0 D-4D (ADT250_, ADT250R) | 1AD-FTV | 03.2006-11.2008 | |
| TOYOTA | AVENSIS Estate (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2AD-FTV | 10.2005-11.2008 | |
| TOYOTA | AVENSIS Estate (_T25_) 2.2 D-CAT (ADT251_, ADT251R | 2AD-FHV | 07.2005-11.2008 | |
| TOYOTA | AVENSIS Estate (_T27_) 2.0 D-4D (ADT270_, ADT270R) | 1AD-FTV | 11.2011-10.2018 | |
| TOYOTA | AVENSIS Estate (_T27_) 2.0 D-4D (ADT270_, ADT270R) | 1AD-FTV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Estate (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FHV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Estate (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FTV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Estate (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FHV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Saloon (_T25_) 2.0 D-4D (ADT250_, ADT250R) | 1AD-FTV | 03.2006-10.2008 | |
| TOYOTA | AVENSIS Saloon (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2AD-FTV | 10.2005-11.2008 | |
| TOYOTA | AVENSIS Saloon (_T25_) 2.2 D-CAT (ADT251_, ADT251R | 2AD-FHV | 07.2005-11.2008 | |
| TOYOTA | AVENSIS Saloon (_T27_) 2.0 D-4D (ADT270_, ADT270R) | 1AD-FTV | 11.2011-10.2018 | |
| TOYOTA | AVENSIS Saloon (_T27_) 2.0 D-4D (ADT270_, ADT270R) | 1AD-FTV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Saloon (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FHV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Saloon (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FTV | 11.2008-10.2018 | |
| TOYOTA | AVENSIS Saloon (_T27_) 2.2 D-4D (ADT271_, ADT271R) | 2AD-FHV | 11.2008-10.2018 | |
| TOYOTA | COROLLA Saloon (_E15_) 2.0 D-4D (ADE150) | 1AD-FTV | 11.2006-07.2014 | |
| TOYOTA | COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_ | 2AD-FHV | 10.2005-03.2009 | |
| TOYOTA | COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_ | 2AD-FTV | 10.2005-03.2009 | |
| TOYOTA | VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) | 1AD-FTV | 04.2009-08.2018 | |
| TOYOTA | VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) | 1AD-FTV | 11.2012-08.2018 | |
| TOYOTA | VERSO (_R2_) 2.2 D-4D (AUR21) | 2AD-FHV | 04.2009-08.2018 | |
| TOYOTA | VERSO (_R2_) 2.2 D-4D (AUR21_, AUR21R) | 2AD-FHV | 04.2009-08.2018 | |
| TOYOTA | VERSO (_R2_) 2.2 D-CAT (AUR21_, AUR21R) | 2AD-FHV | 04.2009-08.2018 | |
| TOYOTA | VERSO VAN (_R2_) D4d (AUR20) | 1AD-FTV | 11.2012-08.2018 | |
| TOYOTA | VERSO VAN (_R2_) D4d (AUR21) | 2AD-FHV | 04.2009-08.2018 |
