A6800S
Code: A6800S
Category: Alternators
Manufacturer: Denso
Supplier: As-pl
: 104211-9100
STANDARD LINE

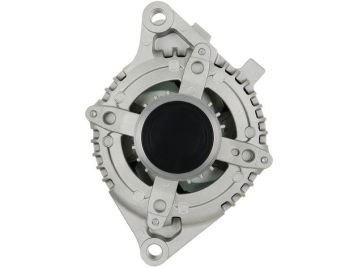

Brand new AS-PL Alternator
Size a: 35.00 mm
Size b: 20.00 mm
Size c: 60.00 mm
Amp.: 150 A
D.1: 11.00
D.2: 11.00
D.3: M10x1.25
D.4: M8x1.25
Pulley: AFP
L.1: 187.00 mm
Plug: PL_2306
G: 7
O.d.1: 52.50 mm
Voltage: 12 v
Com id: 25
Reference number
| Code | Manufacturer | |||||||
| UD102097A | As-pl | |||||||
| 104211-9100 | Denso | |||||||
| ||||||||
| ALN4258 | Krauf | |||||||
| 27060-0P400 | Toyota | |||||||
Usage
| Brand | Model | Type | Year | Note |
| TOYOTA | GRANVIA (_H3_) 3.5 | 7GR-FKS | 01.2019- | |
| TOYOTA | HIACE VI Bus (__H3__) 3.5 VVTi (GRH322, GRH303) | 7GR-FKS | 03.2019- | |
| TOYOTA | HIACE VI Van (__H3__) 3.5 VVTi (GRH300, GRH320) | 7GR-FKS | 05.2019- | |
| TOYOTA | LAND CRUISER PRADO (_J15_) 3.5 (GRJ152_) | 7GR-FKS | 09.2015- |
