A6824S
Code: A6824S
Category: Alternators
Manufacturer: Denso
Supplier: As-pl
: 104211-4140
STANDARD LINE

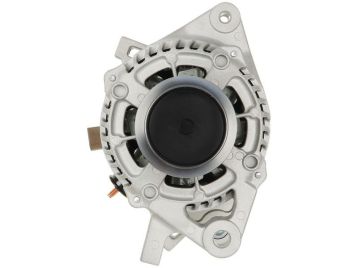

Brand new AS-PL Alternator

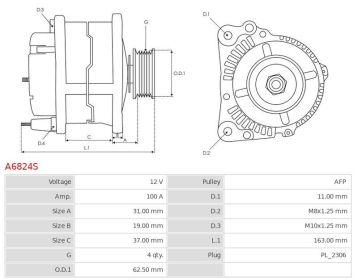

Size a: 31.00 mm
Size b: 19.00 mm
Size c: 37.00 mm
Amp.: 100 A
D.1: 11.00
D.2: M8x1.25
D.3: M10x1.25
Pulley: AFP
L.1: 163.00 mm
Plug: PL_2306
G: 4
O.d.1: 62.50 mm
Voltage: 12 v
Com id: 9
Reference number
| Code | Manufacturer | |
| UD102072A | As-pl | |
| 021080-2680 | Denso | |
| 104211-4140 | Denso | |
| 104211-4141 | Denso | |
| DAN1491 | Denso | |
| 3353731002 | Dri | |
| 28-8637 | Elstock | |
| 556750RID | Kuhner | |
| LRA04528 | Lucas | |
| LRA4528 | Lucas | |
| 89216932 | Powermax | |
| 195.359.100.050 | Psh | |
| 195.359.100.260 | Psh | |
| A148.249 | Psh | |
| AL04410 | Tmi | |
| 27060-0Y380 | Toyota | |
| WG2339153 | Wilmink Group |
Usage
| Brand | Model | Type | Year | Note |
| TOYOTA | YARIS (_P13_) 1.5 (NSP131_) | 2NR-FKE | 03.2017-06.2020 | |
| TOYOTA | YARIS Hatchback Van (_P13_) 1.5 VVTi (NSP131) | 2NR-FKE | 03.2017-06.2020 |
