A9649S
Code: A9649S
Category: Alternators
Manufacturer: Prestolite
Supplier: As-pl
: AVI147D3001
STANDARD LINE

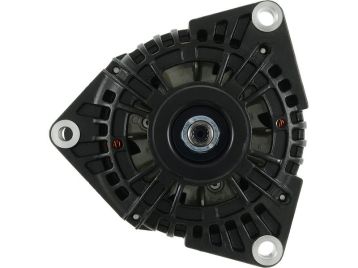

Brand new AS-PL Alternator
Size a: 107.00 mm
Size b: 80.00 mm
Amp.: 120 A
D.1: 12.00
D.2: 10.50
D.3: 12.00
Pulley: AP
L.1: 216.50 mm
Plug: PL_9105
G: 10
O.d.1: 54.00 mm
Voltage: 24 v
Reference number
| Code | Manufacturer | ||||
| UD104347A | As-pl | ||||
| ALP3326 | Krauf | ||||
| AVI147D3001 | Prestolite | ||||
| AVI147D3007 | Prestolite | ||||
| |||||
| AVI147D3023 | Prestolite | ||||
| 370101514 | Yutong | ||||
| 370102077 | Yutong | ||||
Usage
| Brand | Model | Type | Year | Note |
| Yutong | 6118 6118 | ISC300-20 | 10.2004-12.2005 | |
| Yutong | 6122 8.4 | YC6L330-31 | 01.2016- | |
| Yutong | 6122 8.4 | YC6L330-30 | 01.2006-12.2015 | |
| Yutong | 6122 9.8 | YC6M375-30 | 01.2016- | |
| Yutong | 6122 9.8 | YC6ML375-30 | 01.2016-12.2021 |
