AR9014
Code: AR9014
Category: Alternator rotors
Manufacturer: Magneton
Supplier: As-pl
STANDARD LINE

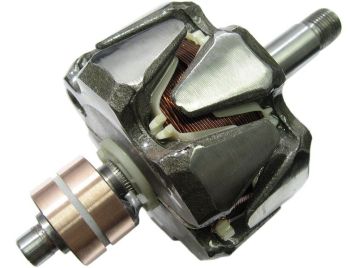

Brand new AS-PL Alternator rotor
D.: M16x1.5 mm
Amp.: 65 A
Slip ring: ASL9005
L.1: 155.10 mm
L.2: 53.70 mm
O.d.1: 88.40 mm
O.d.2: 17.00 mm
Poles: 12
Bearing: No
Thread: Prawy
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD41189AR | As-pl | |
| 234586 | Cargo | |
| 2867-0110 | Dixie | |
| ROTX010 | Electrolog | |
| 0138211 | Magneton | |
| MGN0138211 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | A9038 | alternators | ||
| MAGNETON | 9515170 | alternators | ||
| MAGNETON | 9515241 | alternators | ||
| MAGNETON | 9515461 | alternators | ||
| MAGNETON | 9515471 | alternators | ||
| MAGNETON | 9515501 | alternators | ||
| MAGNETON | 9515511 | alternators | ||
| MAGNETON | 9515521 | alternators | ||
| MAGNETON | 9515530 | alternators | ||
| MAGNETON | 9515765 | alternators |
