  5. AR9050S



AR9050S


Code: AR9050S

Category: Alternator rotors

Manufacturer: Universal

Supplier: As-pl

STANDARD LINE

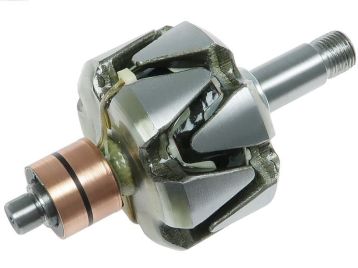

Brand new AS-PL Alternator rotor



D.: M16x1.5 mm

Amp.: 30 A

Slip ring: ASL9006

L.1: 139.00 mm

L.2: 42.50 mm

O.d.1: 73.50 mm

O.d.2: 17.00 mm

Poles: 12

Bearing: No

Thread: Prawy

Voltage: 12 v



Reference number

CodeManufacturer
UD49226ARAs-pl


Usage

BrandModelTypeYearNote
As-plA9086alternators
