AS2011
Code: AS2011
Category: Alternator stators
Manufacturer: Hitachi
Supplier: As-pl
STANDARD LINE

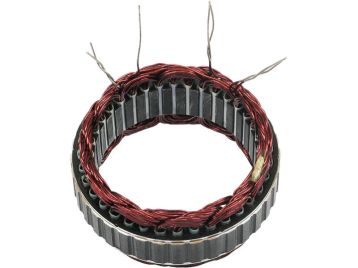

Brand new AS-PL Alternator stator
Amp.: 90 A
H.1: 59.00 mm
H.2: 22.20 mm
H.3: 28.20 mm
I.d.1: 98.60 mm
Leads: 4
O.d.1: 128.50 mm
O.d.2: 126.00 mm
O.d.3: 116.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD01036AS | As-pl | |
| UD01039AS | As-pl | |
| UD01100AS | As-pl | |
| 230864 | Cargo | |
| F032230864 | Cargo | |
| CSR20034AS | Casco | |
| STA3125 | Electrolog | |
| L190G-5200 | Hitachi | |
| 23102-65F00 | Nissan | |
| S/3063 | Orme | |
| 1115688 | Powermax | |
| SSR20034 | Sando | |
| 27-8108 | Wai / Transpo | |
| WST87863 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | A2023 | alternators | ||
| As-pl | A2023(P) | alternators | ||
| As-pl | A2037 | alternators | ||
| As-pl | A2089S | alternators | ||
| HITACHI | LR1100709 | alternators | ||
| HITACHI | LR1100714 | alternators | ||
| HITACHI | LR1100715 | alternators | ||
| HITACHI | LR1100720B | alternators | ||
| HITACHI | LR1100720C | alternators | ||
| HITACHI | LR180-513 | alternators | ||
| HITACHI | LR185701 | alternators | ||
| HITACHI | LR185701B | alternators | ||
| HITACHI | LR185701C | alternators | ||
| HITACHI | LR185701E | alternators | ||
| HITACHI | LR185701H | alternators | ||
| HITACHI | LR185702 | alternators | ||
| HITACHI | LR190715E | alternators | ||
| HITACHI | LR190716B | alternators | ||
| HITACHI | LR190717C | alternators | ||
| HITACHI | LR190718B | alternators | ||
| HITACHI | LR190719B | alternators | ||
| HITACHI | LR190720B | alternators | ||
| HITACHI | LR190721 | alternators | ||
| HITACHI | LR190722B | alternators | ||
| HITACHI | LR190724 | alternators | ||
| HITACHI | LR190725B | alternators | ||
| HITACHI | LR190725E | alternators | ||
| HITACHI | LR190725F | alternators | ||
| HITACHI | LR190727C | alternators | ||
| HITACHI | LR190728 | alternators | ||
| HITACHI | LR190728B | alternators | ||
| HITACHI | LR190728E | alternators | ||
| HITACHI | LR190729 | alternators | ||
| HITACHI | LR190729B | alternators | ||
| HITACHI | LR190732 | alternators | ||
| HITACHI | LR190732B | alternators | ||
| HITACHI | LR190732C | alternators | ||
| HITACHI | LR190733 | alternators | ||
| HITACHI | LR190733B | alternators | ||
| HITACHI | LR190733C | alternators | ||
| HITACHI | LR190737 | alternators | ||
| HITACHI | LR190737B | alternators | ||
| HITACHI | LR190737E | alternators | ||
| HITACHI | LR190737F | alternators | ||
| HITACHI | LR190744 | alternators | ||
| HITACHI | LR190745 | alternators | ||
| HITACHI | LR190747 | alternators | ||
| HITACHI | LR190750 | alternators | ||
| HITACHI | LR190752 | alternators | ||
| HITACHI | LR190752B | alternators | ||
| HITACHI | LR190753 | alternators | ||
| HITACHI | LR190754 | alternators | ||
| NISSAN | 231000P006 | alternators | ||
| NISSAN | 231000P507 | alternators | ||
| NISSAN | 231000P602 | alternators | ||
| NISSAN | 231000W000 | alternators | ||
| NISSAN | 231000W001 | alternators | ||
| NISSAN | 2310032J04 | alternators | ||
| NISSAN | 231003C400 | alternators | ||
| NISSAN | 2310043N01 | alternators | ||
| NISSAN | 231005V100 | alternators | ||
| NISSAN | 231006C000 | alternators | ||
| NISSAN | 231006C900 | alternators | ||
| NISSAN | 2310070T07 | alternators | ||
| NISSAN | 2310086L01 | alternators | ||
| NISSAN | 23100Y705 | alternators | ||
| SUBARU | 23700AA212 | alternators |
