  5. AS4004



AS4004


Code: AS4004

Category: Alternator stators

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

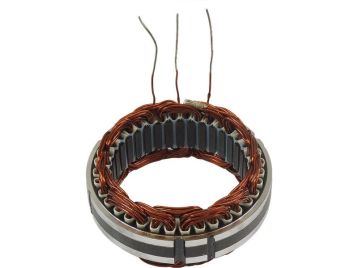

Brand new AS-PL Alternator stator



Amp.: 55 A

H.1: 53.30 mm

H.2: 10.30 mm

H.3: 24.40 mm

I.d.1: 89.80 mm

Leads: 3

O.d.1: 125.00 mm

O.d.2: 118.00 mm

O.d.3: 110.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
131648Cargo
CSR30007ASCasco
STA4068Electrolog
9939969Fiat
083605011010Lucas
83601541Magneti Marelli
83605011Magneti Marelli
83619941Magneti Marelli
83624631Magneti Marelli
S/205Orme
S/210Orme
SSR30007Sando
WST8716Woodauto


Usage

BrandModelTypeYearNote
As-plA4047alternators
As-plA4059alternators
As-plA4063alternators
As-plA4122Salternators
As-plMC00822alternators
EFEL10910alternators
EFEL13870alternators
EFEL14940alternators
ELMOT3160200alternators
LUCAS063321178010alternators
MAGNETI MARELLI063321042010alternators
MAGNETI MARELLI63220125alternators
MAGNETI MARELLI63305404alternators
MAGNETI MARELLI63305506alternators
MAGNETI MARELLI63305526alternators
MAGNETI MARELLI63305606alternators
MAGNETI MARELLI63305722alternators
MAGNETI MARELLI63305800alternators
MAGNETI MARELLI63307400alternators
MAGNETI MARELLI63307402alternators
MAGNETI MARELLI63307405alternators
MAGNETI MARELLI63307406alternators
MAGNETI MARELLI63307407alternators
MAGNETI MARELLI63307430alternators
MAGNETI MARELLI63307503alternators
MAGNETI MARELLI63307506alternators
MAGNETI MARELLI63307526alternators
MAGNETI MARELLI63320003alternators
MAGNETI MARELLI63320004alternators
MAGNETI MARELLI63320007alternators
MAGNETI MARELLI63320008alternators
MAGNETI MARELLI63320010alternators
MAGNETI MARELLI63320012alternators
MAGNETI MARELLI63320021alternators
MAGNETI MARELLI63320023alternators
MAGNETI MARELLI63320024alternators
MAGNETI MARELLI63320027alternators
MAGNETI MARELLI63320028alternators
MAGNETI MARELLI63320029alternators
MAGNETI MARELLI63320030alternators
MAGNETI MARELLI63320031alternators
MAGNETI MARELLI63320034alternators
MAGNETI MARELLI63320039alternators
MAGNETI MARELLI63320047alternators
MAGNETI MARELLI63320049alternators
MAGNETI MARELLI63320050alternators
MAGNETI MARELLI63320053alternators
MAGNETI MARELLI63320056alternators
MAGNETI MARELLI63320073alternators
MAGNETI MARELLI63320091alternators
MAGNETI MARELLI63320094alternators
MAGNETI MARELLI63320100alternators
MAGNETI MARELLI63320101alternators
MAGNETI MARELLI63320112alternators
MAGNETI MARELLI63320125alternators
MAGNETI MARELLI63320127alternators
MAGNETI MARELLI63320128alternators
MAGNETI MARELLI63320130alternators
MAGNETI MARELLI63320131alternators
MAGNETI MARELLI63321002alternators
MAGNETI MARELLI63321003alternators
MAGNETI MARELLI63321005alternators
MAGNETI MARELLI63321008alternators
MAGNETI MARELLI63321009alternators
MAGNETI MARELLI63321010alternators
MAGNETI MARELLI63321011alternators
MAGNETI MARELLI63321013alternators
MAGNETI MARELLI63321015alternators
MAGNETI MARELLI63321016alternators
MAGNETI MARELLI63321028alternators
MAGNETI MARELLI63321029alternators
MAGNETI MARELLI63321035alternators
MAGNETI MARELLI63321040alternators
MAGNETI MARELLI63321041alternators
MAGNETI MARELLI63321042alternators
MAGNETI MARELLI63321044alternators
MAGNETI MARELLI63321057alternators
MAGNETI MARELLI63321058alternators
MAGNETI MARELLI63321059alternators
MAGNETI MARELLI63321060alternators
MAGNETI MARELLI63321061alternators
MAGNETI MARELLI63321067alternators
MAGNETI MARELLI63321071alternators
MAGNETI MARELLI63321078alternators
MAGNETI MARELLI63321079alternators
MAGNETI MARELLI63321080alternators
MAGNETI MARELLI63321081alternators
MAGNETI MARELLI63321095alternators
MAGNETI MARELLI63321097alternators
MAGNETI MARELLI63321100alternators
MAGNETI MARELLI63321103alternators
MAGNETI MARELLI63321107alternators
MAGNETI MARELLI63321109alternators
MAGNETI MARELLI63321112alternators
MAGNETI MARELLI63321120alternators
MAGNETI MARELLI63321126alternators
MAGNETI MARELLI63321137alternators
MAGNETI MARELLI63321138alternators
MAGNETI MARELLI63321154alternators
MAGNETI MARELLI63321155alternators
MAGNETI MARELLI63321159alternators
MAGNETI MARELLI63321160alternators
MAGNETI MARELLI63321165alternators
MAGNETI MARELLI63321169alternators
MAGNETI MARELLI63321172alternators
MAGNETI MARELLI63321178alternators
MAGNETI MARELLI63321180alternators
MAGNETI MARELLI63321191alternators
MAGNETI MARELLI63321197alternators
MAGNETI MARELLI63321198alternators
MAGNETI MARELLI63321409alternators
MAGNETI MARELLI63321410alternators
MAGNETI MARELLI63321428alternators
MAGNETI MARELLI63321460alternators
MAGNETI MARELLI63321477alternators
MAGNETI MARELLI63321480alternators
MAGNETI MARELLI63321493alternators
MAGNETI MARELLI63321715alternators
MAGNETI MARELLI63321782alternators
MAGNETI MARELLI63341454alternators
MAGNETI MARELLI63395575alternators
MAKO063320023000alternators
MAKO063320024000alternators
MAKO063321044000alternators
MAKO063321112020alternators
MAKO063321137000alternators
MAKO063321154000alternators
MAKO063321155000alternators
MAKO063321452000alternators
MAKO063392532000alternators
MAKO063395551000alternators
MAKO063395559000alternators
MAKO063395562000alternators
MAKO063395564000alternators
MAKO063395567000alternators
MAKO063395569000alternators
MAKO063395574000alternators
MAKO063395575000alternators
MAKO063395577000alternators
MAKO063395578000alternators
MAKO063395581000alternators
MAKO063395582000alternators
MAKO063395583000alternators
MAKO063395584000alternators
MAKO063395585000alternators
MAKO063395586000alternators
