AS5017


Code: AS5017
Category: Alternator stators
Manufacturer: MITSUBISHI
Supplier: As-pl
STANDARD LINE

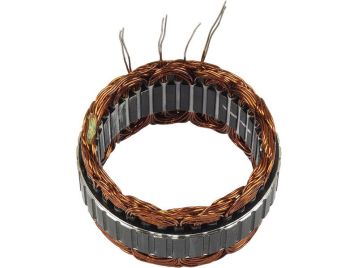

Brand new AS-PL Alternator stator


Amp.: 90 A
H.1: 71.80 mm
H.2: 26.30 mm
H.3: 31.30 mm
I.d.1: 113.50 mm
Leads: 4
O.d.1: 143.40 mm
O.d.2: 139.90 mm
O.d.3: 133.10 mm
Voltage: 24 v


Reference number

CodeManufacturer
238947Cargo
CSR35602ASCasco
CSR35603ASCasco
CQ1120797Cq
STA5015Electrolog
S/3112Ghibaudi
AFM0591Krauf
81120039Powermax
050.000.215.130Psh
20837206BNReal
20837306BNReal
SSR35602.0Sando
SSR35603.0Sando


Usage

BrandModelTypeYearNote
As-plA5045alternators
As-plA5046alternators
As-plA5379Salternators
MITSUBISHIA4TA0592alternators
MITSUBISHIA4TR5091alternators
MITSUBISHIA4TR5091ZTalternators
