S0220


Code: S0220

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001417007

STANDARD LINE

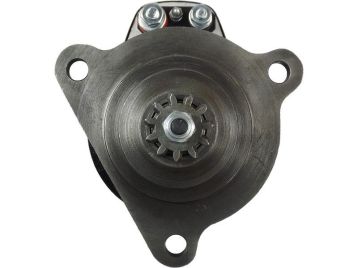

Brand new AS-PL Starter motor



Size a: 92.00 mm

Size b: 48.00 mm

C.1: 13.50 mm

C.2: 13.50 mm

C.3: 13.50 mm

L.1: 406.00 mm

No./teeth: 11

No./teeth (fits into): 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 127.00 mm

O.3: 127.00 mm

Power: 6.60 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
STRS0583EFFE
STRS6863EFFE
CGB-11645Ainde
S0220 As-pl
AES7146Autoelectro
IM361 Avf
IM645 Avf
0001410098 Bosch
0001410115 Bosch
0001411005 Bosch
0001411021 Bosch
0001417007 Bosch
0001417045 Bosch
0986012480Bosch
0986018790Bosch
110212 Cargo
CRO46001ASCasco
CSR60001ASCasco
CST10603ASCasco
CST10603ESCasco
CST10603RSCasco
CST10633ASCasco
CST10633ESCasco
CST10640ASCasco
CST10640ESCasco
8690Cevam
1516692RDaf
DRS2480DELCO
33546Eai
33601Eai
33602Eai
12800Efel
STR10139Electrolog
STR1655Electrolog
45-0150Elstock
45-0313Elstock
45-0381Elstock
220234Era
220235Era
220324Era
8812480Friesen
CS121Hc Parts
8EA725974-001Hella
4782801Iveco
10121Kuhner
254320Kuhner
254566Kuhner
22.0121Lauber
28.0121Lauber
LRS00746Lucas
LRS746Lucas
81467045Monark
860510GBPrestolite
860514Prestolite
860514GBPrestolite
860515GBPrestolite
860517Prestolite
860517GBPrestolite
911.202.113Psh
20401046BNReal
20401046ELReal
20401306BNReal
20401306ELReal
20401336BNReal
20401336ELReal
6010603Sando
6010633Sando
6010640Sando
SRO46001Sando
SSR60001Sando
170743Scania
277451Scania
309220 Scania
309470Scania
349578 Scania
349581Scania
349587Scania
571423Scania
571460Scania
571461Scania
S24BH0042A2Sidat
MAV1214SIOM
MAV126180SIOM
MAV126400SIOM
MAV2260SIOM
438047Valeo
455535Valeo
6244321Volvo
STR22056Woodauto


Usage

BrandModelTypeYearNote
IVECO113 E/360 11.0[DSC11.13]01.1990-05.2000
IVECO113 E/360 11.0[DSC11.18]01.1990-05.2000
IVECO113 E/360 11.0[DSC11.23]01.1990-05.2000
IVECO113 H/360 11.0[DSC11.13]05.1988-05.2000
IVECO113 H/360 11.0[DSC11.18]01.1990-05.2000
IVECO113 H/360 11.0[DSC11.23]01.1990-05.2000
IVECO113 M/360 11.0[DSC11.13]05.1988-05.2000
IVECO113 M/360 11.0[DSC11.18]01.1990-05.2000
IVECO113 M/360 11.0[DSC11.23]01.1990-05.2000
IVECO113 M/400 11.0[DTC11.01]01.1992-05.1997
IVECO113 M/400 11.0[DTC11.02]01.1994-05.1997
IVECO114 C/340 11.0[DC11.01]03.1993-09.2004
IVECO114 C/340 11.0[DC11.03]02.1996-09.2004
IVECO114 C/340 11.0[DSC11.79]05.1996-05.1999
IVECO114 C/380 10.6[DC11.02]03.1996-02.2002
IVECO114 G/340 10.6[DC11.01]03.1996-09.2004
IVECO114 G/340 10.6[DC11.03]03.1998-09.2004
IVECO114 G/340 11.0[DC11.01]03.1996-02.2002
IVECO114 G/340 11.0[DSC11.79]05.1996-05.1999
IVECO114 G/380 10.6[DC11.02]03.1996-02.2002
IVECOP/PA 330-30 13.8[8210.22X.069]10.1987-12.1995
IVECOP/PA 330-30 13.8[8210.22X.069]10.1987-12.1995
IVECOP/PA 330-30 13.8[8210.22X.235]06.1984-12.1992
IVECOP/PA 330-30 13.8[8210.22X.235]06.1984-12.1992
IVECOP/PA 330-30 13.8[8210.22X.523]06.1984-12.1992
IVECOP/PA 330-30 13.8[8210.22X.523]06.1984-12.1992
IVECOP/PA 330-30 13.8[8210.22X.575]10.1987-12.1995
IVECOP/PA 330-30 13.8[8210.22X.575]10.1987-12.1995
SCANIA113 E/360 11.0[DSC11.13]01.1990-05.2000
SCANIA113 E/360 11.0[DSC11.18]01.1990-05.2000
SCANIA113 E/360 11.0[DSC11.23]01.1990-05.2000
SCANIA113 H/360 11.0[DSC11.13]05.1988-05.2000
SCANIA113 H/360 11.0[DSC11.18]01.1990-05.2000
SCANIA113 H/360 11.0[DSC11.23]01.1990-05.2000
SCANIA113 M/360 11.0[DSC11.13]05.1988-05.2000
SCANIA113 M/360 11.0[DSC11.18]01.1990-05.2000
SCANIA113 M/360 11.0[DSC11.23]01.1990-05.2000
SCANIA113 M/400 11.0[DTC11.01]01.1992-05.1997
SCANIA113 M/400 11.0[DTC11.02]01.1994-05.1997
SCANIA114 C/340 11.0[DC11.01]03.1993-09.2004
SCANIA114 C/340 11.0[DC11.03]02.1996-09.2004
SCANIA114 C/340 11.0[DSC11.79]05.1996-05.1999
SCANIA114 C/380 10.6[DC11.02]03.1996-02.2002
SCANIA114 G/340 10.6[DC11.01]03.1996-09.2004
SCANIA114 G/340 10.6[DC11.03]03.1998-09.2004
SCANIA114 G/340 11.0[DC11.01]03.1996-02.2002
SCANIA114 G/340 11.0[DSC11.79]05.1996-05.1999
SCANIA114 G/380 10.6[DC11.02]03.1996-02.2002
SCANIA114 L/340 10.6[DC11.01]03.1996-02.2002
SCANIA114 L/340 10.6[DC11.02]03.1996-02.2002
SCANIA114 L/340 10.6[DC11.03]05.1996-09.2004
SCANIA114 L/340 11.0[DSC11.79]05.1996-05.1999
SCANIA114 L/380 10.6[DC11.02]03.1996-02.2002
SCANIA124 C/360 11.7[DSC12.02]09.1996-02.2002
SCANIA124 C/400 11.7[DSC12.01]09.1996-01.2000
SCANIA124 C/420 11.7[DSC12.05]09.1995-02.2002
SCANIA124 G/360 11.7[DSC12.02]05.1996-02.2002
SCANIA124 G/400 11.7[DSC12.01]05.1996-01.2000
SCANIA124 L/360 11.7[DSC12.02]09.1996-02.2002
SCANIA124 L/400 11.7[DSC12.01]09.1996-01.2000
SCANIA124 L/420 11.7[DSC12.05]09.1997-02.2002
SCANIA124 L/440 11.7[DT12.08]09.2000-09.2004
SCANIA124 L/470 11.7[DT12.02]01.2001-09.2004
SCANIA143 E/420 14.2[DSC14.08]01.1991-12.1996
SCANIA143 E/450 14.2[DSC14.03]01.1990-12.1996
SCANIA143 E/450 14.2[DSC14.10]01.1990-12.1996
SCANIA143 E/500 14.2[DSC14.09]01.1991-12.1996
SCANIA143 E/500 14.2[DSC14.16]12.1994-12.1996
SCANIA143 H/400 14.2[DSC14.06]05.1988-12.1996
SCANIA143 H/420 14.2[DSC14.08]01.1991-12.1996
SCANIA143 H/450 14.2[DSC14.03]05.1988-12.1996
SCANIA143 H/450 14.2[DSC14.06]05.1988-12.1996
SCANIA143 H/450 14.2[DSC14.10]01.1990-12.1996
SCANIA143 H/470 14.2[DSC14.04]03.1988-12.1996
SCANIA143 H/500 14.2[DSC14.09]01.1991-12.1996
SCANIA143 H/500 14.2[DSC14.16]12.1994-12.1996
SCANIA143 M/420 14.2[DSC14.08]01.1991-12.1996
SCANIA143 M/450 14.2[DSC14.03]05.1988-12.1996
SCANIA143 M/450 14.2[DSC14.10]01.1990-12.1996
SCANIA143 M/470 14.2[DSC14.04]03.1988-12.1996
SCANIA143 M/500 14.2[DSC14.09]01.1991-12.1996
SCANIA143 M/500 14.2[DSC14.16]12.1994-12.1996
SCANIA144 C/460 14.2[DSC14.15]04.1996-08.2001
SCANIA144 C/530 14.2[DSC14.13]04.1996-08.2001
SCANIA144 G/460 14.2[DSC14.15]04.1996-08.2001
SCANIA144 G/530 14.2[DSC14.13]04.1996-08.2001
SCANIA144 L/460 14.2[DSC14.15]11.1995-08.2001
SCANIA144 L/530 14.2[DSC14.13]11.1995-08.2001
SCANIA230 9.0[DC9.01]09.2004-
SCANIA260 9.0[DC9.02]09.2004-
SCANIA300 9.0[DC9.03]09.2004-
SCANIA93 H/220 8.5[DSC9.10]12.1991-08.1997
SCANIA93 H/250 8.5[DS9.05]03.1988-01.1991
SCANIA93 H/250 8.5[DSC9.07]12.1991-08.1997
SCANIA93 H/280 8.5[DSC9.02]12.1991-12.1996
SCANIA93 H/280 8.5[DSC9.08]12.1991-08.1997
SCANIA93 M/210 8.5[DS9.08]03.1988-01.1993
SCANIA93 M/220 8.5[DSC9.10]12.1991-08.1997
SCANIA93 M/230 8.5[DS9.06]03.1988-01.1993
SCANIA93 M/250 8.5[DS9.05]03.1988-01.1991
SCANIA93 M/250 8.5[DSC9.07]12.1991-08.1997
SCANIA93 M/280 8.5[DSC9.02]03.1988-12.1996
SCANIA93 M/280 8.5[DSC9.08]01.1990-08.1997
SCANIA94 /D260 9.0[DC9.02]02.2000-09.2004
SCANIA94 C/260 9.0[DSC9.12]12.1996-10.2001
SCANIA94 C/300 9.0[DC9.03]02.2000-09.2004
SCANIA94 C/310 9.0[DSC9.13]08.1996-08.2002
SCANIA94 C/310 9.0[DSC9.15]08.1996-08.2002
SCANIA94 D/220 9.0[DSC9.11]08.1996-08.2002
SCANIA94 D/230 9.0[DC9.01]08.1999-09.2004
SCANIA94 D/230 9.0[DC9.04]08.1999-09.2004
SCANIA94 D/260 9.0[DC9.02]02.2000-09.2004
SCANIA94 D/260 9.0[DSC9.12]08.1996-10.2001
SCANIA94 D/300 9.0[DC9.03]02.2000-09.2004
SCANIA94 D/310 9.0[DSC9.13]12.1996-08.2002
SCANIA94 D/310 9.0[DSC9.15]12.1996-08.2002
SCANIA94 G/220 9.0[DSC9.11]08.1996-08.2002
SCANIA94 G/260 9.0[DSC9.12]08.1996-10.2001
SCANIA94 G/310 9.0[DSC9.13]08.1996-08.2002
SCANIA94 G/310 9.0[DSC9.15]08.1996-08.2002
SCANIA94 L/310 9.0[DSC9.13]08.1996-08.2002
SCANIA94 L/310 9.0[DSC9.15]08.1996-08.2002
SCANIAR 142 E 14.2[DS14.06]05.1980-03.1988
SCANIAR 142 H 14.2[DS14.06]05.1980-03.1988
SCANIAR 142 H 14.2[DSC14.01]05.1980-03.1988
SCANIAR 142 H 14.2[DSC14.02]05.1980-03.1988
SCANIAR 142 M 14.2[DS14.06]05.1980-03.1988
