S0230SR


Code: S0230SR
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

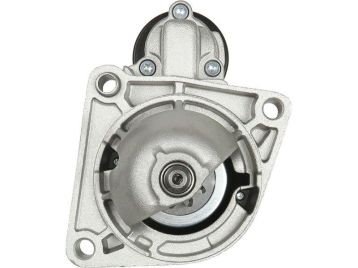

Remanufactured AS-PL Starter motor


Size a: 81.50 mm
Size b: 9.50 mm
C.1: 9.00 mm
C.2: 9.00 mm
C.3: 9.00 mm
L.1: 237.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 83.00 mm
O.2: 116.00 mm
O.3: 83.00 mm
Power: 2.20 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
PRSL0083EFFE
PRSS2073EFFE
STRL0083EFFE
STRS2073EFFE
CGB-23314Ainde
0001109030 Bosch
0001109045 Bosch
0001109253 Bosch
0001109268 Bosch
0001109269 Bosch
0001109270 Bosch
0001109336 Bosch
0001109337 Bosch
0001109438 Bosch
0001115021 Bosch
0001115025 Bosch
0986018900Bosch
CST10294ASCasco
CST10294GSCasco
CST10294OSCasco
CST10422GSCasco
CST30125OSCasco
CST30125RSCasco
3680 Cevam
DRS3315DELCO
DS4425DELCO
EAA-121576Eaa
11808Eai
STR1945Electrolog
STR1946Electrolog
25-3002Elstock
220175Era
220720Era
46430784 Fiat
46451895Fiat
46463250Fiat
46473784 Fiat
46748351Fiat
46800159Fiat
51832953Fiat
55195029Fiat
60814911 Fiat
60816083Fiat
71722349Fiat
71723345Fiat
71746669Fiat
71782384Fiat
71782386Fiat
71789267Fiat
71792037Fiat
71794169Fiat
GS109270-AGparts
GS109270B-RGparts
CS1335Hc Parts
8EA012527-851Hella
8EA738240-001Hella
42018900Herth+buss
11.130.997 Iskra / Letrika
AZE2111 Iskra / Letrika
IS0997 Iskra / Letrika
STB1335Krauf
101335Kuhner
101335BKuhner
101335MKuhner
LRT00199Lucas
LRT199Lucas
063521092680Magneti Marelli
943213351010Magneti Marelli
944280189000Magneti Marelli
MSN2085Magneti Marelli
MSRC1335Magneti Marelli
72736001Mahle
MS373Mahle
93951832953Pininfarina
93955195029Pininfarina
88212443Powermax
500.532.093.010Psh
500.532.093.280Psh
20401224OEReal
20401492BNReal
20401492OEReal
20401492REReal
20404521RCReal
20404521REReal
311500Rhiag
STM1035Rollco
6010294.0Sando
6010294.1Sando
6010294.4Sando
6010422.1Sando
6030125.2Sando
6030125.4Sando
S12BH0020A2Sidat
S12BH0789A2Sidat
MAV122940SIOM
STX200011Stardax
STX200011RStardax
STX200037Stardax
STX200037RStardax
STX200200Stardax
STX200200RStardax
STX200294Stardax
31100-79J00 Suzuki
3110079J00000Suzuki
31100H79J00Suzuki
31100H79J00-000Suzuki
31100T79J00Suzuki
201162Valeo
458550Valeo
32669NWai / Transpo
BOS0001109336Woodauto
STR52046Woodauto


Usage

BrandModelTypeYearNote
ALFA ROMEO147 1.9 JTD 16V[192A5.000]11.2002-03.2010
ALFA ROMEO147 1.9 JTD 16V[192B1.000]10.2004-03.2010
ALFA ROMEO147 1.9 JTD 16V[937A4.000]09.2003-09.2004
ALFA ROMEO147 1.9 JTDM 16V[937A5.000]09.2004-03.2010
ALFA ROMEO156 1.9 JTD[192B1.000]11.2002-11.2004
ALFA ROMEO156 1.9 JTD[937A4.000]11.2003-09.2005
ALFA ROMEO156 1.9 JTD[937A4.000]11.2003-05.2006
ALFA ROMEO156 1.9 JTD[937A5.000]03.2005-05.2006
ALFA ROMEO156 1.9 JTD 16V[192A5.000]11.2002-09.2005
ALFA ROMEO156 1.9 JTD 16V[192A5.000]11.2002-05.2006
ALFA ROMEO156 1.9 JTD 16V Q4[937A5.000]07.2004-05.2006
ALFA ROMEO156 2.4 JTD[841C000]03.2002-09.2005
ALFA ROMEO156 2.4 JTD[841C000]03.2002-05.2006
ALFA ROMEO156 2.4 JTD[841G.000]10.2003-09.2005
ALFA ROMEO156 2.4 JTD[841G.000]10.2003-05.2006
ALFA ROMEO156 2.4 JTD[841M.000]06.2003-09.2005
ALFA ROMEO156 2.4 JTD[841M.000]06.2003-05.2006
ALFA ROMEO156 2.4 JTD[841N.000]06.2003-09.2005
ALFA ROMEO156 2.4 JTD[841N.000]06.2003-05.2006
ALFA ROMEO159 2.4 JTDM[939A3.000]09.2005-11.2011
ALFA ROMEO159 2.4 JTDM[939A3.000]03.2006-11.2011
ALFA ROMEO159 2.4 JTDM[939A9.000]05.2007-12.2012
ALFA ROMEO159 2.4 JTDM[939A9.000]07.2007-11.2011
ALFA ROMEO159 2.4 JTDM Q4[939A9.000]05.2007-11.2011
ALFA ROMEO166 2.4 JTD[839A6.000]10.2000-06.2007
ALFA ROMEO166 2.4 JTD[841C000]04.2002-06.2007
ALFA ROMEO166 2.4 JTD[841G.000]10.2003-06.2007
ALFA ROMEO166 2.4 JTD[841H.000]10.2003-06.2007
ALFA ROMEO166 2.4 JTD[841M.000]10.2003-06.2007
ALFA ROMEO166 2.4 JTD[841M.000]07.2005-06.2007
ALFA ROMEO166 2.4 JTD[841M.000]07.2006-06.2007
ALFA ROMEO166 2.4 JTD[841N.000]10.2003-06.2007
ALFA ROMEO166 2.4 JTD[936B.000]07.2005-06.2007
ALFA ROMEOBrera 2.4 JTDM 20V[939A3.000]01.2006-03.2011
ALFA ROMEOBrera 2.4 JTDM 20V[939A9.000]05.2007-03.2011
ALFA ROMEOGT 1.9 JTD[937A5.000]11.2003-09.2010
ALFA ROMEOMito 1.6 JTDM[198A2.000]08.2008-
ALFA ROMEOMito 1.6 JTDM[955A3.000]08.2008-
ALFA ROMEOMito 1.6 JTDM[955A4.000]08.2008-
ALFA ROMEOSpider 2.4 JTDM[939A3.000]03.2006-03.2011
ALFA ROMEOSpider 2.4 JTDM[939A3.000]03.2008-03.2011
FIATBravo 1.6 D Multijet[198A3.000]09.2007-12.2014
FIATBravo 1.6 D Multijet[844A3.000]09.2007-12.2014
FIATBravo 1.9 D Multijet[192A1.000]11.2006-12.2009
FIATBravo 1.9 D Multijet[192A8.000]04.2007-12.2014
FIATBravo 1.9 D Multijet[192B4.000]11.2006-12.2009
FIATBravo 1.9 D Multijet[192B5.000]04.2007-12.2008
FIATBravo 1.9 D Multijet[937A5.000]04.2007-12.2014
FIATCroma 1.9 D Multijet[939A2.000]06.2005-12.2011
FIATCroma 1.9 D Multijet[939A8.000]12.2005-
FIATMarea 2.4 JTD 130[185A6.000]04.1999-05.2002
FIATMarea 2.4 JTD 130[839A5.000]04.1999-05.2002
FIATSedici1.9 D Multijet[D19AA]06.2006-10.2011
FIATSedici1.9 D Multijet 4x4[D19AA]06.2006-10.2011
FIATStilo 1.9 JTD[192A1.000]10.2001-11.2006
FIATStilo 1.9 JTD[192A1.000]01.2003-08.2008
FIATStilo 1.9 JTD[192A5.000]01.2004-11.2006
FIATStilo 1.9 JTD[192A5.000]01.2004-08.2008
FIATStilo 1.9 JTD[192B1.000]04.2004-11.2006
FIATStilo 1.9 JTD[192B1.000]04.2004-08.2008
FIATStilo 1.9 JTD[937A4.000]09.2003-11.2006
FIATStilo 1.9 JTD[937A4.000]09.2003-08.2008
FIATStilo 1.9 JTD[937A7.000]10.2001-11.2006
FIATStilo 1.9 JTD[937A7.000]01.2003-08.2008
LANCIADelta 2.0 D Multijet[198A5.000]09.2008-08.2014
LANCIADelta 2.0 D Multijet[198A8.000]09.2008-08.2014
LANCIALybra 2.4 20V[192A2.000]10.2001-10.2005
LANCIALybra 2.4 JTD[839A5.000]07.1999-02.2001
LANCIALybra 2.4 JTD[839A5.000]10.1999-09.2000
LANCIALybra 2.4 JTD[839A6.000]09.2000-05.2002
LANCIALybra 2.4 JTD[839A6.000]09.2000-10.2005
LANCIALybra 2.4 JTD[841C.000]05.2002-10.2005
LANCIALybra 2.4 JTD[AR32501]07.1999-02.2001
LANCIALybra 2.4 JTD[AR32501]10.1999-09.2000
LANCIAThesis 2.4 D Multijet[841P.000]04.2006-07.2009
LANCIAThesis 2.4 JTD[841C.000]07.2002-07.2009
LANCIAThesis 2.4 JTD[841G.000]05.2003-07.2009
LANCIAThesis 2.4 JTD[841M.000]09.2003-07.2009
LANCIAThesis 2.4 JTD[841N.000]09.2003-07.2009
SUZUKISX4 1.9 DDiS[D19AA]06.2006-
SUZUKISX4 1.9 DDiS 4X4[D19AA]06.2006-
