S0422


Code: S0422
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001218141
STANDARD LINE

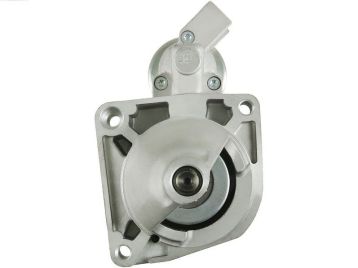

Brand new AS-PL Starter motor


Size a: 82.00 mm
Size b: 29.00 mm
C.1: M10x1.5 mm
C.2: M10x1.5 mm
C.3: M10x1.5 mm
L.1: 272.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 3
No./mount. holes with thread: 3
O.1: 120.00 mm
O.2: 85.00 mm
O.3: 85.00 mm
Power: 2.20 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRL1493EFFE
ANM18150XAndel
S0422 As-pl
UD102786SAs-pl
AES7143Autoelectro
0001218141 Bosch
0001218741 Bosch
0986015930Bosch
STA0219RBovez
111421Cargo
F032111421Cargo
CST10334GSCasco
CST30117RSCasco
3800 Cevam
DRS5930DELCO
11643Eai
STR10166Electrolog
STR1994Electrolog
25-1192Elstock
220183Era
46231644Fiat
71721282Fiat
71721296Fiat
7589005Fiat
7589151Fiat
75891510Fiat
7726946Fiat
77679430Fiat
8015930Friesen
GS218741-AGparts
CS554Hc Parts
42015930Herth+buss
10554Kuhner
22.0554Lauber
330706Logistik
LRS00743Lucas
LRS743Lucas
63222034 Magneti Marelli
63222138 Magneti Marelli
5010165Meat & Doria
5802000Peugeot
35258970 Prestolite
35260920 Prestolite
20401433OEReal
20404711RCReal
RNL1593Rnl
6010334Sando
6030117Sando
S12BH0083A2Sidat
MAV123340SIOM
MAV2150SIOM
SS170Sovereign
STX200527Stardax
30743RWai / Transpo
UNIT BOM 120-5055Wai / Transpo
STR52004Woodauto


Usage

BrandModelTypeYearNote
ALFA ROMEOAR 6 Bus (280_) 1.9 D (280)160D10004.1985-12.1989
ALFA ROMEOAR 6 Van (280_) 1.9 D (280)160D10004.1985-12.1989
FIATDUCATO Bus (230_) 1.9 D Combinato230A2.00006.1995-04.2002
FIATDUCATO Bus (230_) 1.9 TD Combinato230A4.00008.1994-04.2002
FIATDUCATO Bus (230_) 1.9 TD Panorama/Combinato230A3.00003.1994-04.2002
FIATDUCATO Panorama (280_) 1.9 D149B1.00002.1987-08.1990
FIATDUCATO Panorama (280_) 1.9 TD280A1.00003.1989-08.1990
FIATDUCATO Panorama (290_) 1.9 D149B1.00007.1990-03.1994
FIATDUCATO Panorama (290_) 1.9 TD280A1.00007.1990-03.1994
FIATDUCATO Platform/Chassis (230_) 1.9 D230A2.00003.1994-04.2002
FIATDUCATO Platform/Chassis (230_) 1.9 TD230A3.00003.1994-04.2002
FIATDUCATO Platform/Chassis (230_) 1.9 TD CAT230A4.00008.1994-04.2002
FIATDUCATO Platform/Chassis (280_) 1.9 D149B1.00001.1988-08.1990
FIATDUCATO Platform/Chassis (280_) 1.9 TD280A1.00003.1989-08.1990
FIATDUCATO Platform/Chassis (290_) 1.9 D149B1.00006.1990-05.1994
FIATDUCATO Platform/Chassis (290_) 1.9 TD280A1.00003.1989-03.1994
FIATDUCATO Van (230_) 1.9 D230A2.00003.1994-04.2002
FIATDUCATO Van (230_) 1.9 TD230A3.00003.1994-04.2002
FIATDUCATO Van (230_) 1.9 TD CAT230A4.00008.1994-04.2002
FIATDUCATO Van (280_) 1.9 D149B1.00001.1988-08.1990
FIATDUCATO Van (280_) 1.9 TD280A1.00003.1989-08.1990
FIATDUCATO Van (290_) 1.9 D149B1.00007.1990-03.1994
FIATDUCATO Van (290_) 1.9 TD280A1.00003.1989-03.1994
FIATTALENTO Bus (290_) 1.9 D (290UEHK)149B1.00003.1989-03.1994
FIATTALENTO Platform/Chassis (290_) 1.9 D (290UAK, 290149B1.00003.1989-03.1994
FIATTALENTO Van (290_) 1.9 D (290UK)149B1.00003.1989-03.1994
CitroËnC25 Bus (280_, 290_) 1.9 TDM70504.1992-02.1994
CitroËnC25 Platform/Chassis (280_, 290_) 1.9 DTM70510.1991-01.1994
