S0856S


Code: S0856S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001413004
STANDARD LINE

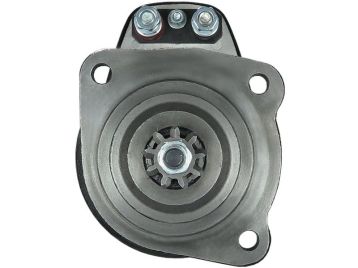

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 47.50 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 385.00 mm
No./teeth: 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 90.00 mm
O.3: 127.00 mm
Power: 3.60 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
PRSS9503EFFE
STRS9503EFFE
CGB-11409Ainde
UD16935SAs-pl
05710906Bomag
05710993Bomag
0001401023 Bosch
0001401060 Bosch
0001413004 Bosch
0001418009 Bosch
110538Cargo
F032110538Cargo
CST10175ASCasco
CST10175ESCasco
19024005 DELCO
33655Eai
STR10048Electrolog
25-1270Elstock
22804Era
CS1030Hc Parts
11.139.525 Iskra / Letrika
1304445Khd
STB0108Krauf
101030Kuhner
101030PKuhner
10956LKuhner
331949Logistik
LRS01204Lucas
LRS1204Lucas
MS704Mahle
51262017008Man
51262019008Man
88262016002Man
88212405Powermax
810.101.093.010Psh
810.101.093.016Psh
810.101.093.311Psh
810.101.093.390Psh
S135.477Psh
20401571BNReal
20401571ELReal
182-30362Robert's
6010175.0Sando
6010175.3Sando
111217Schmitz Cargobull
233991Volvo
240500Volvo
240501Volvo
837924Volvo
842775Volvo
843511Volvo
847306Volvo
881681Volvo
STR50345Woodauto


Usage

BrandModelTypeYearNote
VOLVO PENTAEngineAQD7001.1976-12.1982
VOLVO PENTAEngineMD42A01.1977-12.1979
VOLVO PENTAEngineMD70B01.1970-12.1979
VOLVO PENTAEngineTAMD7001.1976-12.1986
VOLVO PENTAEngineTHAMD7001.1976-12.1979
VOLVO PENTAEngineTMD7001.1977-12.1979
VOLVO PENTAEngine 5.5TD60B01.1978-12.1986
VOLVO PENTAEngine 5.5TAMD6001.1976-12.1987
VOLVO PENTAEngine 5.5TAMD60B10.1976-12.1983
