  1. Starters
    2. >
  2. S0865S



S0865S


Code: S0865S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001251005
STANDARD LINE

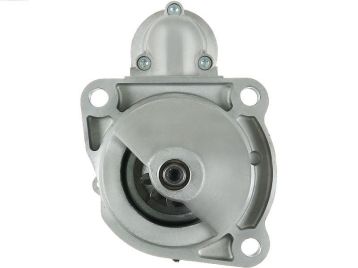

Brand new AS-PL Starter motor


Size a: 88.00 mm
Size b: 30.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 301.00 mm
No./teeth: 10
No./teeth (fits into): 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 128.00 mm
O.3: 90.00 mm
Power: 4.00 kW
Rotation: CW
Voltage: 24 v


Reference number

CodeManufacturer
PRSL2603EFFE
STRL2603EFFE
AC-CBS1536Acauto
CGB-21027Ainde
CGB-31026Ainde
10439527Alanko
ANM12247XAndel
S0865S As-pl
UD16918SAs-pl
SBO680Autoteam
SBO680AAutoteam
0001231026 Bosch
0001231027 Bosch
0001251005 Bosch
0001251006 Bosch
0001263019 Bosch
0001263020 Bosch
0986025530Bosch
1986S10038Bosch
114196Cargo
F032114196Cargo
CST10680ASCasco
CST10680GSCasco
2852405Case
2852478Case
504036695Case
84377568Case
8095Cevam
19084220DELCO
19084401DELCO
DRS0027DELCO
DS1137DELCO
260-23217Dixie
TS-6217Dixie
618037104Dri
STR10197Electrolog
STR1564Electrolog
STR1565Electrolog
STR79349Electrolog
45-4203Elstock
7.61021Elstock
220751Era
106263Farcom
500389863Fiat
504385577Fiat
5801577136Fiat
CS1536Hc Parts
3118964Henkel Parts
3118967Henkel Parts
H5110046GHoffer
11.132.094 Iskra / Letrika
AZF4295 Iskra / Letrika
IS1341 Iskra / Letrika
10010680AVItab Automotive
10010680OVItab Automotive
STB4196Krauf
254204Kuhner
254204BKuhner
254204MKuhner
254204SKuhner
331896Logistik
LRS02531Lucas
LRS2531Lucas
063522310260Magneti Marelli
063522630200Magneti Marelli
MSN2047Magneti Marelli
MSN2118Magneti Marelli
72735867Mahle
MS239 Mahle
5110046Meat & Doria
5110046GMeat & Doria
332054MMec Diesel
88213991Powermax
861084Prestolite
S5015LPrestolite
501.505.103.011Psh
501.505.103.012Psh
501.505.103.019Psh
501.505.103.090Psh
501.505.103.212Psh
501.505.103.213Psh
501.505.103.215Psh
501.505.103.280Psh
501.505.103.310Psh
501.505.103.340Psh
501.505.103.380Psh
S132.966Psh
S144.559Psh
20401086BNReal
20401086OEReal
011-001-000638RRemante
0001251005RRRnl
0001263019RRRnl
RNL231026Rnl
RNL231026PRnl
RNL231027Rnl
RNL263019Rnl
120-20195Robert's
STM1268Rollco
6010680.0Sando
6010680.1Sando
S24BH0049Sidat
S24BH0049A2Sidat
MAV126770SIOM
MAV126800SIOM
19400NWai / Transpo
19796NWai / Transpo
WG2044997Wilmink Group
WG2319802Wilmink Group
BOS0001251006Woodauto
MAHMS239Woodauto
PRE861084Woodauto
SEG0001251006Woodauto
STR50211Woodauto
STR50589Woodauto
STR60716Woodauto
WOOSTR50589Woodauto
WOOSTR60716Woodauto


Usage

BrandModelTypeYearNote
IrisbusCREALIS 18, 18 NEO01.2009-
IVECOEngineF4HE0685A-
NEW HOLLANDE175BF4GE9484D01.2007-
Case Ih621D 4.5 DF4GE0684F01.2002-
Case IhCX220BF4GE0684B01.2010-
