S0894S
Code: S0894S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: F000C60004
STANDARD LINE

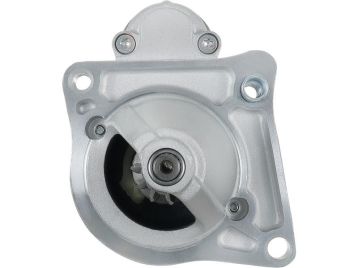

Brand new AS-PL Starter motor
Size a: 64.00 mm
Size b: 11.00 mm
C.1: M8x1.25 mm
C.2: 9.00 mm
C.3: M8x1.25 mm
L.1: 179.00 mm
No./teeth: 11
No./mount. holes: 3
No./mount. holes with thread: 2
O.1: 66.00 mm
O.2: 108.00 mm
O.3: 71.00 mm
Power: 1.00 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| UD103742S | As-pl | |||||||
| F000C60004 | Bosch | |||||||
| ||||||||
| F000CD09A3 | Bosch | |||||||
| ||||||||
| S103254 | BTS Turbo | |||||||
| BREF032F000C60004 | Carwood Group | |||||||
| CST10332GS | Casco | |||||||
| STR10343 | Electrolog | |||||||
| 46763530 | Fiat | |||||||
| 46796553 | Fiat | |||||||
| 51888975 | Fiat | |||||||
| 51997820 | Fiat | |||||||
| 55209989 | Fiat | |||||||
| 10010332OV | Itab Automotive | |||||||
| 500.594.113.010 | Psh | |||||||
| 500.594.113.280 | Psh | |||||||
| S132.689 | Psh | |||||||
| 20401233OE | Real | |||||||
| 6010332.1 | Sando | |||||||
| S12BH0018 | Sidat | |||||||
| MAV123320 | SIOM | |||||||
Usage
| Brand | Model | Type | Year | Note |
| FIAT | PALIO (178_, 171_, 371_) 1.0 | 178A1.000 | 04.1996-10.2003 | |
| FIAT | PALIO (178_, 171_, 371_) 1.0 | 178A3.011 | 04.1996-10.2003 | |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 ( | 178E2.000 | 06.1999-10.2002 | |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 ( | 178D6.011 | 03.2000-02.2003 | |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 ( | 188A5.000 | 03.2000-02.2003 | |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 ( | 178D6.011 | 09.2001-10.2004 | |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 ( | 188A5.000 | 09.2001-10.2004 | |
| FIAT | SIENA (178_, 172_, 372_) 1.3 | 188A5.000 | 09.2001-12.2009 | |
| FIAT | UNO (195_) 1.4 (1951630, 1951830) | 327A.011 | 05.2010- |
