S0896S
Code: S0896S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001170602
STANDARD LINE

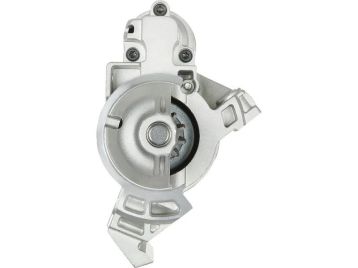

Brand new AS-PL Starter motor
Size b: 17.00 mm
C.1: 8.50 mm
C.2: 8.50 mm
C.3: 8.50 mm
L.1: 205.00 mm
No./teeth: 11
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 97.00 mm
O.2: 39.00 mm
O.3: 105.00 mm
Power: 1.70 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||||||||
| STRJ522 | 3EFFE | |||||||||||||
| 25-5242CT | Ainde | |||||||||||||
| UD17323S | As-pl | |||||||||||||
| SBO593 | Autoteam | |||||||||||||
| 12418621838 | Bmw | |||||||||||||
| 12418621839 | Bmw | |||||||||||||
| 12418621866 | Bmw | |||||||||||||
| 12418625995 | Bmw | |||||||||||||
| 8621839 | Bmw | |||||||||||||
| 8621866 | Bmw | |||||||||||||
| 0001170602 | Bosch | |||||||||||||
| ||||||||||||||
| 0001170603 | Bosch | |||||||||||||
| ||||||||||||||
| 0986025570 | Bosch | |||||||||||||
| 116416 | Cargo | |||||||||||||
| F032116416 | Cargo | |||||||||||||
| CST10593GS | Casco | |||||||||||||
| 3698 | Cevam | |||||||||||||
| DRS1113 | DELCO | |||||||||||||
| 315070112 | Dri | |||||||||||||
| STR10289 | Electrolog | |||||||||||||
| 25-5242 | Elstock | |||||||||||||
| 11090438 | Eurotec | |||||||||||||
| 109268 | Farcom | |||||||||||||
| 3115225 | Henkel Parts | |||||||||||||
| 42025577 | Herth+buss | |||||||||||||
| 10010593OV | Itab Automotive | |||||||||||||
| STB1749 | Krauf | |||||||||||||
| 256000 | Kuhner | |||||||||||||
| 256000B | Kuhner | |||||||||||||
| LRS04079 | Lucas | |||||||||||||
| LRS4079 | Lucas | |||||||||||||
| 5010889G | Meat & Doria | |||||||||||||
| 88215096 | Powermax | |||||||||||||
| IR1091 | Protech | |||||||||||||
| 210.561.113.215 | Psh | |||||||||||||
| 210.561.113.280 | Psh | |||||||||||||
| S144.204 | Psh | |||||||||||||
| QRS2579 | QUINTON HAZELL | |||||||||||||
| 20401395OE | Real | |||||||||||||
| STM1453 | Rollco | |||||||||||||
| 6010593.1 | Sando | |||||||||||||
| S12BH0847 | Sidat | |||||||||||||
| STX201380 | Stardax | |||||||||||||
| ST02197 | Tmi | |||||||||||||
| 16424N | Wai / Transpo | |||||||||||||
| 91-15-7370 | Wilson | |||||||||||||
| STR50835 | Woodauto | |||||||||||||
| WOOSTR50835 | Woodauto | |||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| BMW | 1 (F20) 114 d | B37D15A | 07.2015-06.2019 | |
| BMW | 1 (F20) 116 i | B38B15A | 03.2015-06.2019 | |
| BMW | 1 (F20) 118 i | B38B15A | 07.2015-06.2019 | |
| BMW | 1 (F20) 120 i | B48B20A | 07.2016-06.2019 | |
| BMW | 1 (F20) 125 i | B48B20B | 07.2016-06.2019 | |
| BMW | 1 (F21) 114 d | B37D15A | 06.2015-05.2019 | |
| BMW | 1 (F21) 116 i | B38B15A | 03.2015-06.2019 | |
| BMW | 1 (F21) 118 i | B38B15A | 03.2015-06.2019 | |
| BMW | 1 (F21) 120 i | B48B20A | 07.2016-06.2019 | |
| BMW | 1 (F21) 125 i | B48B20B | 10.2015-06.2019 | |
| BMW | 1 Van (F20) 118 i | B38B15A | 07.2015-06.2019 | |
| BMW | 1 Van (F20) 120 i | B48B20A | 07.2016-06.2019 | |
| BMW | 2 Convertible (F23) 218 i | B38B15A | 03.2015-06.2021 | |
| BMW | 2 Convertible (F23) 218 i | B48B20A | 11.2020-06.2021 | |
| BMW | 2 Convertible (F23) 220 i | B48B20A | 09.2015-06.2021 | |
| BMW | 2 Convertible (F23) 230 i | B46B20B | 07.2016-06.2021 | |
| BMW | 2 Convertible (F23) 230 i | B48B20B | 07.2016-06.2021 | |
| BMW | 2 Coupe (F22, F87) 218 i | B38B15A | 03.2015-06.2021 | |
| BMW | 2 Coupe (F22, F87) 220 i | N20B20A | 10.2013-06.2021 | |
| BMW | 2 Coupe (F22, F87) 220 i | N20B20B | 10.2013-06.2021 | |
| BMW | 2 Coupe (F22, F87) 220 i | B48B20A | 09.2015-06.2021 | |
| BMW | 2 Coupe (F22, F87) 230 i | B46B20B | 07.2016-06.2021 | |
| BMW | 2 Coupe (F22, F87) 230 i | B48B20B | 07.2016-06.2021 | |
| BMW | 3 (F30, F80) 318 i | B38B15A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 320 i | N20B20A | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 i | N20B20B | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 i | N20B20D | 03.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 i | B48B20A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 320 i xDrive | N20B20A | 07.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 i xDrive | N20B20B | 07.2012-10.2018 | |
| BMW | 3 (F30, F80) 320 i xDrive | B48B20A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 330 i | B46B20B | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 330 i | B48B20B | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 330 i xDrive | B46B20B | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 330 i xDrive | B48B20A | 07.2015-10.2018 | |
| BMW | 3 (F30, F80) 330 i xDrive | B48B20B | 07.2015-10.2018 | |
| BMW | 3 (G20, G80, G28) 320 i 1.6 | B48B16A | 03.2019- | |
| BMW | 3 Gran Turismo (F34) 320 i | N20B20A | 03.2013-06.2016 | |
| BMW | 3 Gran Turismo (F34) 320 i | N20B20B | 03.2013-06.2016 | |
| BMW | 3 Gran Turismo (F34) 320 i | B48B20A | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 320 i xDrive | B48B20A | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 330 i | B48B20B | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 330 i xDrive | B46B20B | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 330 i xDrive | B48B20B | 07.2016- | |
| BMW | 3 Gran Turismo (F34) 330 i xDrive | B48B20B | 07.2016- | |
| BMW | 3 Touring (F31) 318 i | B38B15A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 320 i | B48B20A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 320 i xDrive | B48B20A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 330 i | B48B20A | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 330 i xDrive | B46B20B | 07.2015-06.2019 | |
| BMW | 3 Touring (F31) 330 i xDrive | B48B20B | 07.2015-06.2019 | |
| BMW | 3 Touring Van (F31) 330 i | B48B20A | 07.2015-06.2019 | |
| BMW | 4 Convertible (F33, F83) 420 i | B48B20A | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 430 i | B46B20B | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 430 i | B48B20B | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 430 i xDrive | B46B20B | 03.2016-07.2020 | |
| BMW | 4 Convertible (F33, F83) 430 i xDrive | B48B20B | 03.2016-07.2020 | |
| BMW | 4 Coupe (F32, F82) 418 i | B38B15A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 i | B48B20A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 i | B48B20A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 i xDrive | B48B20A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 420 i xDrive | B48B20A | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 430 i | B46B20B | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 430 i | B48B20B | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 430 i xDrive | B46B20B | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 430 i xDrive | B48B20B | 03.2016-06.2020 | |
| BMW | 4 Coupe (F32, F82) 430 i xDrive | B48B20B | 03.2016-06.2020 | |
| BMW | 4 Coupe (G22, G82) 420 i 1.6 | B48B16A | 11.2020- | |
| BMW | 4 Gran Coupe (F36) 418 i | B38B15A | 07.2015-12.2020 | |
| BMW | 4 Gran Coupe (F36) 420 i | B48B20A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 420 i | B48B20A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 420 i xDrive | B48B20A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 420 i xDrive | B48B20A | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 430 i | B46B20B | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 430 i | B48B20B | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 430 i xDrive | B46B20B | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 430 i xDrive | B48B20B | 03.2016-05.2021 | |
| BMW | 4 Gran Coupe (F36) 430 i xDrive | B48B20B | 03.2016-05.2021 | |
| BMW | 5 (G30, F90) 520 i | B46B20B | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017- | |
| BMW | 5 (G30, F90) 520 i | B48B16A | 07.2017-06.2023 | |
| BMW | 5 (G30, F90) 520 i | B48B20A | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 520 i | B48B20B | 07.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 03.2017-06.2020 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B46B20B | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | B48B20A | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid | GC1 | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 03.2017-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B46B20B | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | B48B20A | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 e Plug-in-Hybrid xDrive | GC1 | 07.2020-06.2023 | |
| BMW | 5 (G30, F90) 530 i | B46B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i | B48B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i | B46B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i | B48B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2020 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 09.2016-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B46B20B | 05.2022-06.2023 | |
| BMW | 5 (G30, F90) 530 i xDrive | B48B20B | 05.2022-06.2023 | |
| BMW | 5 Touring (G31) 520 i | B48B20A | 07.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i | B48B20B | 03.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i | B48B20B | 05.2022- | |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 07.2017-06.2020 | |
| BMW | 5 Touring (G31) 530 i xDrive | B48B20B | 05.2022- | |
| BMW | 5 Touring Van (G31) 530 i | B48B20B | 03.2017- | |
| BMW | 5 Touring Van (G31) 530 i xDrive | B48B20B | 07.2017- | |
| BMW | 6 Gran Turismo (G32) 630 i | B48B20B | 07.2017-06.2020 | |
| BMW | 7 (G11, G12) 730 i, Li | B48B20B | 11.2015-02.2019 | |
| BMW | 7 (G11, G12) 740 e, Le | B48B20B | 07.2016-02.2019 | |
| BMW | 7 (G11, G12) 740 Le xDrive | B48B20B | 07.2016-02.2019 | |
| BMW | X3 (G01, F97, G08) sDrive 20 i | B48B20A | 12.2017- | |
| BMW | X3 (G01, F97, G08) sDrive 20 i 1.6 | B48B16A | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20A | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 20 i | B48B20B | 12.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B46B20B | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- | |
| BMW | X3 (G01, F97, G08) xDrive 30 i | B48B20B | 08.2017- | |
| BMW | X4 (G02, F98) xDrive 20 i | B48B20A | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 30 i | B46B20B | 04.2018- | |
| BMW | X4 (G02, F98) xDrive 30 i | B48B20B | 04.2018- |
