S0983S
Code: S0983S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001350012
STANDARD LINE

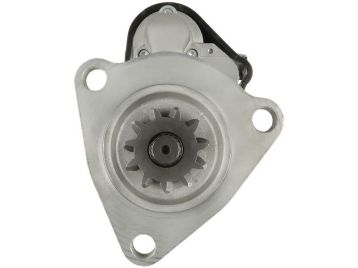

Brand new AS-PL Starter motor
Size a: 92.00 mm
Size b: 49.00 mm
C.1: 17.00 mm
C.2: 17.00 mm
C.3: 17.00 mm
L.1: 400.00 mm
No./teeth: 11
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 127.00 mm
O.3: 127.00 mm
Power: 10.00 kW
Rotation: CW
Voltage: 24 v
Reference number
| Code | Manufacturer | |
| UD30199S | As-pl | |
| 0001350012 | Bosch | |
| 0001350013 | Bosch | |
| 436-9106 | Caterpillar | |
| 436-9406 | Caterpillar | |
| 109460 | Farcom | |
| STB2977 | Krauf | |
| 256343B | Kuhner | |
| 641.562.113.010 | Psh | |
| S150.949 | Psh | |
| 120-35006 | Robert's | |
| BOS0001350013 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| CATERPILLAR | 140 | 01.1970-12.1974 | ||
| CATERPILLAR | 140-AWD | - | ||
| CATERPILLAR | 140GC | - | ||
| CATERPILLAR | 140GC-AWD | - | ||
| CATERPILLAR | 14M3 | - | ||
| CATERPILLAR | 16M3 | - | ||
| CATERPILLAR | 18M3 | - | ||
| CATERPILLAR | 336 | - | ||
| CATERPILLAR | 631K | - | ||
| CATERPILLAR | 631K-OEM | - | ||
| CATERPILLAR | 637K | - | ||
| CATERPILLAR | 824K | - | ||
| CATERPILLAR | 825K | - | ||
| CATERPILLAR | 826K | - | ||
| CATERPILLAR | Engine 12.5 | C13 | - | |
| CATERPILLAR | Engine 15.2 | C15 | - | |
| CATERPILLAR | Engine 18.1 | C18 | 07.2008- | |
| CATERPILLAR | Engine 7.0 | C7.1 | - | |
| CATERPILLAR | Engine 9.3 | C9.3B | - | |
| CATERPILLAR | PM820 | - | ||
| CATERPILLAR | PM822 | - | ||
| CATERPILLAR | R1700K | - | ||
| CATERPILLAR | R2900 | 01.1999-12.2007 | ||
| CATERPILLAR | R2900G | 01.2004-12.2008 |
