S1190S


Code: S1190S
Category: Starters
Manufacturer: DELCO
Supplier: As-pl
: 1107204
STANDARD LINE

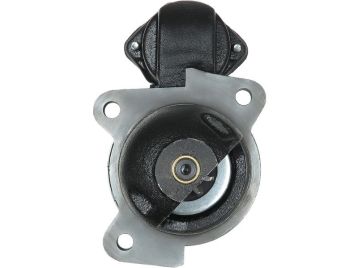

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 47.50 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
Oil sealed: Yes
L.1: 306.00 mm
No./teeth: 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 90.00 mm
O.3: 90.00 mm
Power: 1.40 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRS8563EFFE
UD102877SAs-pl
UD16524SAs-pl
110506Cargo
F032110506Cargo
10455327 DELCO
10461606 DELCO
1107204 DELCO
1107205 DELCO
1107295 DELCO
1108422 DELCO
1108423 DELCO
1109095 DELCO
12301289 DELCO
1998271 DELCO
323636 DELCO
201-10104Dixie
201-10121Dixie
TS-1161Dixie
STR2210Electrolog
119852AHyster
1335326Hyster
170238Hyster
282663Hyster
282666Hyster
3136103Hyster
335863Hyster
98595AHyster
STD1700Krauf
60839Kuhner
88212710Powermax
540.014.093Psh
140-10114Robert's
ALT121230SIOM
ALT6260SIOM
4337NWai / Transpo
4337RWai / Transpo
91-01-4025Wilson
STR80027Woodauto


Usage

BrandModelTypeYearNote
HYSTERC450F-24501.1966-12.1970
HYSTERC500F-24401.1967-12.1976
HYSTERC500F-24501.1963-12.1970
HYSTERC550F-24501.1967-12.1970
HYSTERC70C01.1963-12.1967
HYSTERC70CP01.1963-12.1967
HYSTERH 2001.1963-12.1977
HYSTERH 2501.1970-12.1976
HYSTERH 7001.1971-12.1977
HYSTERH10-150F 2.501.1963-12.1967
HYSTERH10-150F 4.101.1985-12.1986
HYSTERH100B01.1999-12.2006
HYSTERH100C01.1962-12.1970
HYSTERH110-150F01.1985-12.2001
HYSTERH120B01.1999-12.2006
HYSTERH120C01.1960-12.1970
HYSTERH150-275F01.1985-12.2001
HYSTERH160-110E 4.101.1985-12.1986
HYSTERH20E01.1963-12.1977
HYSTERH25E01.1970-12.1976
HYSTERH30-60H (D3)01.1971-12.1977
HYSTERH30H01.1980-12.1999
HYSTERH40-60JS 2.501.1985-12.2001
HYSTERH40H01.1968-12.1988
HYSTERH50H01.1967-12.1970
HYSTERH60F-16301.1970-12.1976
HYSTERH60B01.1960-12.1963
HYSTERH60C01.1960-12.1970
HYSTERH60CP01.1963-12.1970
HYSTERH60H01.1963-12.1970
HYSTERH70B01.1960-12.1962
HYSTERH70C01.1966-12.1970
HYSTERH70CP01.1962-12.1966
HYSTERH8001.1971-12.1978
HYSTERH80B01.1960-12.1962
HYSTERH80C01.1960-12.1970
HYSTERH80CP01.1963-12.1970
HYSTERKE01.1960-12.1962
HYSTERKEF-16301.1963-12.1969
HYSTERKEF-24501.1965-12.1985
HYSTERKE10001.1970-12.1976
HYSTERKE100F-24501.1965-12.1985
HYSTERP6001.1967-12.1980
HYSTERP60-80A01.1966-12.1970
HYSTERP60A01.1970-12.1976
HYSTERP8001.1970-12.1977
HYSTERS 7001.1971-12.1976
HYSTERS10001.1971-12.1976
HYSTERS10001.1963-12.1966
HYSTERS100A01.1971-12.1976
HYSTERS100A-P01.1961-12.1966
HYSTERS100B01.1961-12.1966
HYSTERS100PS01.1967-12.1970
HYSTERS12501.1970-12.1977
HYSTERS125-150A01.1970-12.1977
HYSTERS15001.1971-12.1977
HYSTERS3001.1985-12.2001
HYSTERS3001.1963-12.1970
HYSTERS30-50C01.1985-12.2001
HYSTERS30B01.1963-12.1970
HYSTERS4001.1985-12.2001
HYSTERS4001.1963-12.1970
HYSTERS40B01.1985-12.2001
HYSTERS40C01.1963-12.1970
HYSTERS5001.1963-12.1966
HYSTERS50B01.1963-12.1970
HYSTERS50C01.1965-12.1970
HYSTERS50F01.1985-12.2001
HYSTERS6001.1967-12.1976
HYSTERS60B01.1963-12.1984
HYSTERS60ES01.1985-12.2001
HYSTERS70B01.1971-12.1976
HYSTERS70B01.1963-12.1969
HYSTERS70PS01.1967-12.1970
HYSTERS8001.1996-12.2006
HYSTERS8001.1971-12.1976
HYSTERS80BS80B01.1967-12.1970
HYSTERS80B01.1971-12.1976
HYSTERS80PS01.1967-12.1970
HYSTERSB30B01.1960-12.1963
HYSTERSB30BP01.1960-12.1963
HYSTERSB40B01.1960-12.1963
HYSTERSSB50B01.1960-12.1963
HYSTERVarious ModelsF-24401.1961-12.1962
