S1192S


Code: S1192S

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

: 1107514

STANDARD LINE

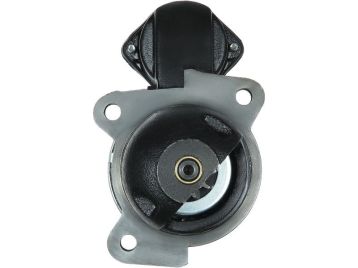

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 45.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

Oil sealed: No

L.1: 345.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 90.00 mm

O.3: 90.00 mm

Power: 2.80 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRF7893EFFE
CGB-1572Ainde
UD16552SAs-pl
6630180Bobcat
6651210Bobcat
6651258Bobcat
6651664Bobcat
110590Cargo
CST60108ASCasco
CST60108GSCasco
596493R92Case
347198Caterpillar
10465349 DELCO
10465401 DELCO
10496886DELCO
1107282 DELCO
1107514 DELCO
1107539 DELCO
1107872 DELCO
1108198 DELCO
1108648 DELCO
1109192 DELCO
1109253 DELCO
1109261 DELCO
1109539 DELCO
1113293 DELCO
12301354DELCO
1998335 DELCO
1998342 DELCO
1998359 DELCO
1998376 DELCO
1998379 DELCO
1998480 DELCO
201-27117Dixie
TS-1166Dixie
STR2024Electrolog
SG0192Ghibaudi
US843Hc Parts
RE105298John Deere
RE505744John Deere
RE508322John Deere
STD0843Krauf
STD9843Krauf
STI0843Krauf
STN0843Krauf
1903103M91Massey Ferguson
0-23000-1860Nikko
0-23000-1900Nikko
88213160Powermax
20409801BNReal
20409801OEReal
140-27104Robert's
6060108.0Sando
6060108.1Sando
6576NWai / Transpo
91-01-4264Wilson


Usage

BrandModelTypeYearNote
Allis Chalmers64901.1982-12.1983
BOBCAT1080C[4BT3.9]01.1985-12.1987
BOBCAT1213[4JPK]01.1986-12.1988
BOBCAT2000[4.154]01.1983-12.1987
BOBCAT2400[4.236]01.1988-12.1988
BOBCAT640[F2L511]01.1981-12.1988
BOBCAT641[F2L511]01.1981-12.1988
BOBCAT740[F2L511]01.1981-12.1988
BOBCAT741[F2L511]01.1981-12.1988
BOBCAT843[TK200]01.1986-12.1988
BOBCAT943[4.236]01.1985-12.1989
BOBCAT974[4.236]01.1977-12.1988
BOBCAT975[4276]01.1986-12.1988
CASE4000[D-239]01.1986-12.1992
CASE5000[D-239]01.1986-12.1992
CASE5500[D-239]01.1986-12.1992
CATERPILLARAH40[B-427]01.1967-12.1971
CATERPILLARAH40[TD-427]01.1967-12.1971
CATERPILLARAH45[B-427]01.1967-12.1971
CATERPILLARAH45[TD-427]01.1967-12.1971
CATERPILLARAH50[B-427]01.1967-12.1971
CATERPILLARAH50[TD-427]01.1967-12.1971
CATERPILLARAM32[B-427T]01.1967-12.1971
CATERPILLARAM32[B-427]01.1967-12.1971
CATERPILLARAM32[D427]01.1967-12.1971
CATERPILLARAM36[B-427T]01.1967-12.1971
CATERPILLARAM36[B-427]01.1967-12.1971
CATERPILLARAM36[D427]01.1967-12.1971
CATERPILLARAM40[B-427T]01.1967-12.1971
CATERPILLARAM40[B-427]01.1967-12.1971
CATERPILLARAM40[D427]01.1967-12.1971
CUMMINS4BT 3.9L
GerlingerAH-40[B-427]01.1965-12.1966
GerlingerAH-45[B-427]01.1965-12.1966
GerlingerAH-50[B-427]01.1965-12.1966
GerlingerAM-32[B-427]01.1963-12.1964
GerlingerAM-32[B-427]01.1965-12.1966
GerlingerAM-36[B-427]01.1963-12.1964
GerlingerAM-36[B-427]01.1965-12.1966
GerlingerAM-40[B-427]01.1963-12.1964
GerlingerAM-40[B-427]01.1965-12.1966
HYSTER360A01.1960-12.1962
HYSTER360AD01.1962-12.1967
HYSTER460AD01.1970-12.1977
HYSTER50001.1967-12.1970
HYSTERH400A01.1960-12.1961
HYSTERH400AD01.1960-12.1966
HYSTERM50001.1963-12.1968
HYSTERM500H[T-427]01.1962-12.1966
HYSTERM60001.1967-12.1970
HYSTERM600H[T-427]01.1971-12.1977
HYSTERRC-160[T-427]01.1959-12.1962
HYSTERUE-30P[T-427]01.1959-12.1962
International210[D206]01.1967-12.1970
International225[D206]01.1967-12.1970
International275[D-239]01.1975-12.1984
International275[D206]01.1967-12.1970
International275[D206]01.1975-12.1984
International275D[D206]01.1971-12.1971
International375[D-239]01.1975-12.1984
International375[D206]01.1967-12.1970
International375[D206]01.1975-12.1984
International4000[D-239]01.1975-12.1984
International4000[D206]01.1975-12.1984
International5000[D-239]01.1975-12.1984
International5000[D206]01.1975-12.1984
International5500[D-239]01.1975-12.1984
International5500[D206]01.1975-12.1984
MASSEY FERGUSON175[4.236]01.1964-12.1969
MASSEY FERGUSON175[4.236]01.1970-12.1973
MASSEY FERGUSON180[4.236]01.1964-12.1969
MASSEY FERGUSON180[4.236]01.1970-12.1972
MASSEY FERGUSON20[3.152]01.1973-12.1976
MASSEY FERGUSON20C[3.152]01.1976-12.1981
MASSEY FERGUSON20U[3.152]01.1976-12.1980
MASSEY FERGUSON235[3.152]01.1974-12.1974
MASSEY FERGUSON255[4.203]01.1974-12.1974
MASSEY FERGUSON255[4.236]01.1977-12.1982
MASSEY FERGUSON265[4.236]01.1974-12.1982
MASSEY FERGUSON275[4.248]01.1974-12.1974
MASSEY FERGUSON275[4.248]01.1977-12.1982
MASSEY FERGUSON30[4.203]01.1973-12.1976
MASSEY FERGUSON30B[3.152]01.1976-12.1981
MASSEY FERGUSON40[3.152]01.1973-12.1976
MASSEY FERGUSON40B[4.203]01.1976-12.1981
MASSEY FERGUSON40U[3.152]01.1976-12.1977
MASSEY FERGUSON45U[4.203]01.1976-12.1977
MASSEY FERGUSON50[4.203]01.1973-12.1974
MASSEY FERGUSON50C[4.236]01.1982-12.1982
MASSEY FERGUSON50E[4.248]01.1988-12.1992
MASSEY FERGUSON60[4.248]01.1978-12.1978
MASSEY FERGUSON60[4.248]01.1979-12.1982
MASSEY FERGUSON60B[4.236]01.1981-12.1982
MASSEY FERGUSON60C01.1979-12.1980
MASSEY FERGUSON60E01.1986-12.1988
MASSEY FERGUSONMF2200[3.152]01.1973-12.1977
MASSEY FERGUSONMF2500[3.152]01.1973-12.1973
MASSEY FERGUSONMF31[4.236]01.1976-12.1977
MASSEY FERGUSONMF6000[4.236]01.1974-12.1975
MASSEY FERGUSONMF650001.1975-12.1978
MASSEY FERGUSONMF6500[4.236]01.1975-12.1978
NEW HOLLAND1100[4.236]01.1976-12.1985
NEW HOLLAND1116[4.236]01.1982-12.1987
NEW HOLLAND142601.1986-12.1989
NEW HOLLAND1426[4.236]01.1982-12.1985
PERKINS4-23601.1983-12.1988
TowmotorAH-40[B-427]01.1967-12.1967
TowmotorAH-45[B-427]01.1967-12.1967
TowmotorAH-50[B-427]01.1967-12.1967
TowmotorAM-32[B-427]01.1967-12.1967
TowmotorAM-36[B-427]01.1967-12.1967
TowmotorAM-40[B-427]01.1967-12.1967
Waukesha180DCL01.1968-12.1973
WaukeshaVRD15501.1975-12.1986
WaukeshaVRD23201.1979-12.1983
