  1. Starters
    2. >
  2. S1193S



S1193S


Code: S1193S
Category: Starters
Manufacturer: DELCO
Supplier: As-pl
: 1998207
STANDARD LINE

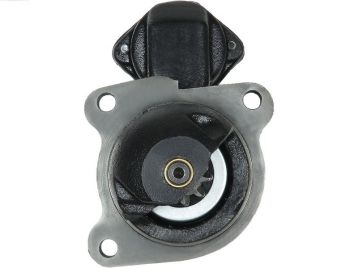

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 22.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 306.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 90.00 mm
O.3: 90.00 mm
Power: 1.50 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRW3103EFFE
UD16553SAs-pl
7N7665Caterpillar
7N8064Caterpillar
1998207 DELCO
1998208 DELCO
1998325 DELCO
1998326 DELCO
1998485 DELCO
201-10106Dixie
TS-1557Dixie
STD1872Krauf
140-10159Robert's
21925AWai / Transpo


Usage

BrandModelTypeYearNote
CATERPILLART100C140401.1979-12.1984
CATERPILLART120C140401.1979-12.1984
CATERPILLART30B140401.1979-12.1984
CATERPILLART30C140401.1979-12.1984
CATERPILLART35B140401.1979-12.1984
CATERPILLART35C140401.1979-12.1984
CATERPILLART40B140401.1979-12.1984
CATERPILLART40C140401.1979-12.1984
CATERPILLART45B140401.1979-12.1984
CATERPILLART45C140401.1979-12.1984
CATERPILLART50B140401.1979-12.1984
CATERPILLART50C140401.1979-12.1984
CATERPILLART55B140401.1979-12.1984
CATERPILLART55C140401.1979-12.1984
CATERPILLART60B140401.1979-12.1984
CATERPILLART60C140401.1979-12.1984
CATERPILLART70C140401.1979-12.1984
CATERPILLART80C140401.1979-12.1984
CATERPILLART90C140401.1979-12.1984
CATERPILLARTC60C140401.1979-12.1984
CATERPILLARV30C140401.1979-12.1984
CATERPILLARV35C140401.1979-12.1984
CATERPILLARV40C140401.1979-12.1984
CATERPILLARV41F-16301.1979-12.1984
CATERPILLARV45C140401.1979-12.1984
CATERPILLARV50C140401.1979-12.1984
CATERPILLARV51F-22701.1979-12.1984
CATERPILLARV55BF-22701.1979-12.1984
CATERPILLARV55C140401.1979-12.1984
CATERPILLARV60BF-16301.1979-12.1980
CATERPILLARV60BF-22701.1979-12.1984
TowmotorT30B140401.1979-12.1986
TowmotorT30C140401.1979-12.1986
TowmotorT35B140401.1979-12.1986
TowmotorT35C140401.1979-12.1986
TowmotorT40B140401.1979-12.1986
TowmotorT40C140401.1979-12.1986
TowmotorT45B140401.1979-12.1986
TowmotorT45C140401.1979-12.1986
TowmotorT50B140401.1979-12.1986
TowmotorT50C140401.1979-12.1986
TowmotorT55B140401.1979-12.1986
TowmotorT55C140401.1979-12.1986
TowmotorT60B140401.1979-12.1986
TowmotorT60C140401.1981-12.1986
TowmotorTC60C140401.1979-12.1980
TowmotorV30C140401.1979-12.1986
TowmotorV35C140401.1979-12.1986
TowmotorV40C140401.1979-12.1986
TowmotorV41F-22701.1981-12.1981
TowmotorV45C140401.1979-12.1981
TowmotorV50C140401.1979-12.1986
TowmotorV51F-22701.1981-12.1986
TowmotorV55BF-22701.1981-12.1986
TowmotorV60BF-22701.1981-12.1986
