S1271S
Code: S1271S
Category: Starters
Manufacturer: DELCO
Supplier: As-pl
: 8200835
STANDARD LINE

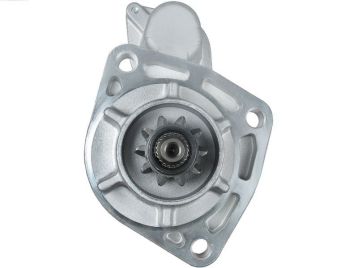

Brand new AS-PL Starter motor
Size a: 89.00 mm
Size b: 47.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 358.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 89.00 mm
O.2: 89.00 mm
O.3: 127.00 mm
Power: 7.50 kW
Rotation: CW
Voltage: 24 v
Reference number
| Code | Manufacturer | ||||
| STRJ372 | 3EFFE | ||||
| UD18577S | As-pl | ||||
| CST60622GS | Casco | ||||
| 6N3160 | Caterpillar | ||||
| 5267912 | Cummins | ||||
| 5287961 | Cummins | ||||
| 5363431 | Cummins | ||||
| 5363436 | Cummins | ||||
| 8200373 | DELCO | ||||
| 8200779 | DELCO | ||||
| 8200835 | DELCO | ||||
| |||||
| 8201133 | DELCO | ||||
| 8201138 | DELCO | ||||
| STD7912 | Krauf | ||||
| 641.532.103.392 | Psh | ||||
| 20409226OE | Real | ||||
| 140-35505NOE | Robert's | ||||
| 6060622.1 | Sando | ||||
| STX201301 | Stardax | ||||
| 91-01-4811 | Wilson | ||||
| REM8200078 | Woodauto | ||||
| REM8200878 | Woodauto | ||||
Usage
| Brand | Model | Type | Year | Note |
| CUMMINS | Engine 4.5 | [QSB] | 01.2010-12.2017 | |
| CUMMINS | Engine 6.7 | [ISB] | ||
| Jbt | 15i 4.5 | [QSB] | 01.2010-12.2015 | |
| Jbt | 30i 4.5 | [QSB] | 01.2010-12.2016 |
