  1. Starters
    2. >
  2. S1284S



S1284S


Code: S1284S
Category: Starters
Manufacturer: DELCO
Supplier: As-pl
: 10455317
STANDARD LINE

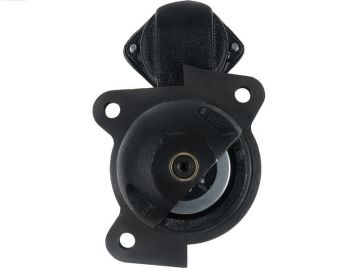

Brand new AS-PL Starter motor


Size a: 88.50 mm
Size b: 47.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 306.00 mm
No./teeth: 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 90.00 mm
O.3: 127.00 mm
Power: 1.50 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
UD102953SAs-pl
10455317 DELCO
201-10101Dixie
4467Lester
140-10111Robert's
4388NWai / Transpo
91-01-4437Wilson


Usage

BrandModelTypeYearNote
Allis ChalmersAC-C 100-
Allis ChalmersAC-C 100C-
Allis ChalmersAC-C 120-
Allis ChalmersAC-C 20-
Allis ChalmersAC-C 25-
Allis ChalmersAC-C 30-
Allis ChalmersAC-C 35-
Allis ChalmersAC-C 40-
Allis ChalmersAC-C 45-
Allis ChalmersAC-C 50-
Allis ChalmersAC-C 55-
Allis ChalmersAC-C 60-
Allis ChalmersAC-C 60C-
Allis ChalmersAC-C 70-
Allis ChalmersAC-C 70C-
Allis ChalmersAC-C 80-
Allis ChalmersAC-P 110-
Allis ChalmersAC-P 130-
Allis ChalmersAC-P 150-
Allis ChalmersAC-P 20-
Allis ChalmersAC-P 25-
Allis ChalmersAC-P 30-
Allis ChalmersAC-P 40-
Allis ChalmersAC-P 50-
Allis ChalmersAC-P 60-
Allis ChalmersAC-P 70-
Allis ChalmersAC-P 80-
Allis ChalmersAC-S 100-
Allis ChalmersAC-S 120-
Allis ChalmersAC-S 70-
HYSTERC20-
HYSTERC25-
HYSTERH 2001.1963-12.1977
HYSTERH 2501.1970-12.1976
HYSTERH 30-
HYSTERH 7001.1971-12.1977
HYSTERH100B01.1999-12.2006
HYSTERH100C01.1962-12.1970
HYSTERH120B01.1999-12.2006
HYSTERH120C01.1960-12.1970
HYSTERH150C-
HYSTERH160-110E-
HYSTERH20-30E-
HYSTERH20E01.1963-12.1977
HYSTERH20EP-
HYSTERH25E01.1970-12.1976
HYSTERH25EP-
HYSTERH30E-
HYSTERH60-
HYSTERH60AP-
HYSTERH60C01.1960-12.1970
HYSTERH60CP01.1963-12.1970
HYSTERH703C-
HYSTERH70AP-
HYSTERH70CP01.1962-12.1966
HYSTERH8001.1971-12.1978
HYSTERH80AP-
HYSTERH80C01.1960-12.1970
HYSTERH80CP01.1963-12.1970
HYSTERP6001.1967-12.1980
HYSTERP60A01.1970-12.1976
HYSTERP8001.1970-12.1977
HYSTERS 7001.1971-12.1976
HYSTERS10001.1963-12.1966
HYSTERS100A01.1971-12.1976
HYSTERS100AP-
HYSTERS100B01.1961-12.1966
HYSTERS100PS01.1967-12.1970
HYSTERS20-
HYSTERS20A-
HYSTERS2501.1985-12.2008
HYSTERS25A-
HYSTERS3001.1963-12.1970
HYSTERS30A-
HYSTERS30B01.1963-12.1970
HYSTERS4001.1963-12.1970
HYSTERS40B01.1985-12.2001
HYSTERS40C01.1963-12.1970
HYSTERS5001.1963-12.1966
HYSTERS50B01.1963-12.1970
HYSTERS50C01.1965-12.1970
HYSTERS6001.1967-12.1976
HYSTERS60B01.1963-12.1984
HYSTERS60PS-
HYSTERS70B01.1963-12.1969
HYSTERS70PS01.1967-12.1970
HYSTERS8001.1971-12.1976
HYSTERS80B01.1971-12.1976
HYSTERS80PS01.1967-12.1970
HYSTERUE30-
HYSTERUE30P-
HYSTERYE40-
HYSTERYE40P-
InternationalUC175-
InternationalUC200-
InternationalUC221B-
InternationalUC263-
InternationalUC263B-
Minneapolis-molineMA20F-
Minneapolis-molineWC20-
WhiteWC20-
Case Ih50-
