S5136PR


Code: S5136PR
Category: Starters
Manufacturer: MITSUBISHI
Supplier: As-pl
PREMIUM LINE

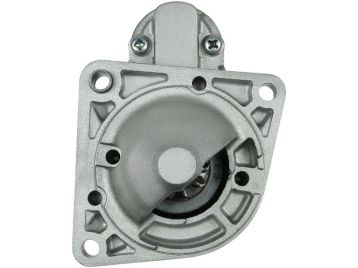

Remanufactured AS-PL Starter motor


Size a: 82.00 mm
Size b: 8.00 mm
C.1: 9.00 mm
C.2: 9.00 mm
C.3: 9.00 mm
L.1: 221.00 mm
No./teeth: 10
No./teeth (fits into): 9.10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 116.00 mm
O.2: 83.00 mm
O.3: 83.00 mm
Power: 1.90 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
PRSS0383EFFE
STRS0383EFFE
CGB-20099Ainde
CGB-53454Ainde
ASM1303Apec
CST35187ASCasco
CST35187GSCasco
3144Cevam
DRS0099DELCO
12079Eai
STR5319Electrolog
25-3454Elstock
EZ0405Elta Automotive
220643Era
60813458Fiat
71792597Fiat
71794530Fiat
SG0278Ghibaudi
42001071Herth+buss
STB1264Krauf
254091Kuhner
254091MKuhner
336366Logistik
LES0310Lucas
LRS02283Lucas
LRS2283Lucas
5035073Meat & Doria
M001T30071 MITSUBISHI
M001T30072 MITSUBISHI
M001T30073 MITSUBISHI
M001T30073AMMITSUBISHI
M001T30073ZZ9MITSUBISHI
M1T30071 MITSUBISHI
M1T30072 MITSUBISHI
M1T30073 MITSUBISHI
M1T30073AMMITSUBISHI
M1T30073ZZ9MITSUBISHI
NPANSM1303Napa
1202282Opel
1202488Opel
55353857Opel
55358857Opel
55585237Opel
6202074Opel
95520320Opel
88212197Powermax
500.550.103.130Psh
500.550.103.138Psh
500.550.103.265Psh
500.550.103.370Psh
S132.983Psh
S144.581Psh
20437781BNReal
20437781OEReal
STM572Rollco
6035187.0Sando
6035187.1Sando
S12MH0822A2Sidat
MAV371870SIOM
STX200011Stardax
STX200011RStardax
33283NWai / Transpo
MITM1T30072Woodauto
MITM1T30073Woodauto
STR71102Woodauto
AM-2519Auto Magneto


Usage

BrandModelTypeYearNote
CADILLACBLS 1.9 DZ19DTH04.2006-
CADILLACBLS 1.9 DZ19DTR12.2007-
CADILLACBLS Wagon 1.9 DZ19DTH12.2007-
CADILLACBLS Wagon 1.9 DZ19DTR12.2007-
OPELASTRA H (A04) 1.9 CDTI (L48)Z19DTH09.2004-10.2010
OPELASTRA H (A04) 1.9 CDTI (L48)Z19DT06.2004-10.2010
OPELASTRA H (A04) 1.9 CDTI (L48)Z19DTL09.2005-10.2010
OPELASTRA H (A04) 1.9 CDTI 16V (L48)Z19DTJ04.2004-10.2010
OPELASTRA H Estate (A04) 1.9 CDTI (L35)Z19DTH09.2004-10.2010
OPELASTRA H Estate (A04) 1.9 CDTI (L35)Z19DT09.2005-10.2010
OPELASTRA H Estate (A04) 1.9 CDTI (L35)Z19DTL09.2005-10.2010
OPELASTRA H Estate (A04) 1.9 CDTI 16V (L35)Z19DTJ08.2004-10.2010
OPELASTRA H Estate Van (L70) 1.9 CDTI (L70)Z19DTH09.2004-10.2010
OPELASTRA H Estate Van (L70) 1.9 CDTI (L70)Z19DT09.2005-10.2010
OPELASTRA H Estate Van (L70) 1.9 CDTI (L70)Z19DTL08.2005-12.2012
OPELASTRA H Estate Van (L70) 1.9 CDTI 16V (L70)Z19DTJ08.2004-10.2010
OPELASTRA H GTC (A04) 1.9 CDTi (L08)Z19DTH03.2005-10.2010
OPELASTRA H GTC (A04) 1.9 CDTi (L08)Z19DTL01.2006-10.2010
OPELASTRA H GTC (A04) 1.9 CDTi (L08)Z19DT09.2005-10.2010
OPELASTRA H GTC (A04) 1.9 CDTi 16V (L08)Z19DTJ03.2005-10.2010
OPELASTRA H TwinTop (A04) 1.9 CDTi (L67)Z19DTH09.2005-10.2010
OPELASTRA J (P10) 2.0 CDTI (68)A20DTH06.2011-10.2015
OPELASTRA J (P10) 2.0 CDTI (68)A20DTH09.2009-10.2015
OPELASTRA J Estate Van (P10) 2.0 CDTi (35)A20DTH10.2012-10.2015
OPELASTRA J GTC 2.0 CDTI (08)A20DTH01.2012-06.2015
OPELASTRA J GTC 2.0 CDTI (08)A20DTH01.2012-10.2015
OPELASTRA J Sports Tourer (P10) 2.0 CDTI (35)A20DTH10.2010-10.2015
OPELASTRA J Sports Tourer (P10) 2.0 CDTI (35)A20DTH08.2011-10.2015
OPELCASCADA (W13) 2.0 CDTI (67)A20DTH04.2013-06.2015
OPELINSIGNIA A (G09) 2.0 Biturbo CDTI (68)A20DTR01.2012-03.2017
OPELINSIGNIA A (G09) 2.0 Biturbo CDTI (68)A20DTR07.2008-12.2011
OPELINSIGNIA A (G09) 2.0 Biturbo CDTI 4x4 (68)A20DTR01.2012-03.2017
OPELINSIGNIA A (G09) 2.0 Biturbo CDTI 4x4 (68)A20DTR05.2009-12.2011
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTH07.2013-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTC07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTL07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DT07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTH07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTJ07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI (68)A20DTH07.2008-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI 4x4 (68)A20DTH07.2013-03.2017
OPELINSIGNIA A (G09) 2.0 CDTI 4x4 (68)A20DTH06.2010-03.2017
OPELINSIGNIA A Country Tourer (G09) 2.0 CDTi (47)A20DTH07.2014-03.2017
OPELINSIGNIA A Country Tourer (G09) 2.0 CDTi (47)A20DT07.2008-03.2017
OPELINSIGNIA A Country Tourer (G09) 2.0 CDTi (47)A20DTJ07.2008-03.2017
OPELINSIGNIA A Country Tourer (G09) 2.0 CDTi 4x4 (47)A20DTH09.2013-03.2017
OPELINSIGNIA A Country Tourer (G09) 2.0 CDTi 4x4 (47)A20DTR09.2013-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 Biturbo CDTI (69)A20DTR01.2012-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 Biturbo CDTI (69)A20DTR07.2008-12.2011
OPELINSIGNIA A Saloon (G09) 2.0 Biturbo CDTI 4x4 (69)A20DTR01.2012-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 Biturbo CDTI 4x4 (69)A20DTR07.2008-12.2011
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DTH07.2013-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DTC07.2008-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DTL07.2008-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DT07.2008-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DTJ07.2008-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI (69)A20DTH07.2008-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI 4x4 (69)A20DTH07.2013-03.2017
OPELINSIGNIA A Saloon (G09) 2.0 CDTI 4x4 (69)A20DTH06.2010-03.2017
OPELINSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI (3A20DTR01.2012-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI (3A20DTR07.2008-03.2017
OPELINSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI 4xA20DTR01.2012-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 Biturbo CDTI 4xA20DTR07.2008-03.2017
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DTH07.2013-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DTC07.2008-06.2013
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DTL07.2008-06.2013
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DT07.2008-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DTJ07.2008-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI (35)A20DTH07.2008-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI 4x4 (35)A20DTH07.2013-06.2015
OPELINSIGNIA A Sports Tourer (G09) 2.0 CDTI 4x4 (35)A20DTH06.2010-06.2015
OPELSIGNUM Hatchback (Z03) 1.9 CDTI (F48)Z19DT04.2004-02.2008
OPELSIGNUM Hatchback (Z03) 1.9 CDTI (F48)Z19DTH04.2004-02.2008
OPELSIGNUM Hatchback (Z03) 1.9 CDTI (F48)Z19DTL08.2005-02.2008
OPELVECTRA C (Z02) 1.9 CDTI (F69)Z19DT04.2004-01.2009
OPELVECTRA C (Z02) 1.9 CDTI (F69)Z19DTH04.2004-08.2008
OPELVECTRA C (Z02) 1.9 CDTI (F69)Z19DTL10.2005-08.2008
OPELVECTRA C Estate (Z02) 1.9 CDTI (F35)Z19DT04.2004-01.2009
OPELVECTRA C Estate (Z02) 1.9 CDTI (F35)Z19DTH04.2004-08.2008
OPELVECTRA C Estate (Z02) 1.9 CDTI (F35)Z19DTL06.2005-08.2008
OPELVECTRA C GTS (Z02) 1.9 CDTI (F68)Z19DT04.2004-01.2009
OPELVECTRA C GTS (Z02) 1.9 CDTI (F68)Z19DTH04.2004-08.2008
OPELVECTRA C GTS (Z02) 1.9 CDTI (F68)Z19DTL06.2005-08.2008
OPELZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)Z19DTH07.2005-04.2015
OPELZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)Z19DTL07.2005-12.2010
OPELZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)Z19DT07.2005-04.2015
OPELZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)Z19DTH07.2005-04.2015
OPELZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)Z19DT07.2005-04.2015
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)A20DTH10.2011-
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)A20DT10.2011-
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)B20DTJ10.2011-
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)D20DTJ10.2011-
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)Y20DTJ10.2011-
OPELZAFIRA TOURER C (P12) 2.0 CDTi (75)Z20DTJ10.2011-
OPELZAFIRA TOURER C VAN (P12) 2.0 CDTi (75)A20DTH01.2013-
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TiDZ19DT09.2004-02.2015
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TiDZ19DTH09.2004-02.2015
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 (YS3F, E79, D79, D75) 1.9 TTiDZ19DTR12.2007-02.2015
SAAB9-3 Convertible (YS3F) 1.9 TiDZ19DTH01.2006-02.2015
SAAB9-3 Convertible (YS3F) 1.9 TiDZ19DT09.2004-02.2015
SAAB9-3 Convertible (YS3F) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 Convertible (YS3F) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 Convertible (YS3F) 1.9 TTiDZ19DTR12.2007-02.2015
SAAB9-3 Estate (E50) 1.9 TiDZ19DT03.2005-02.2015
SAAB9-3 Estate (E50) 1.9 TiDZ19DTH03.2005-02.2015
SAAB9-3 Estate (E50) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 Estate (E50) 1.9 TTiDA19DTR12.2007-02.2015
SAAB9-3 Estate (E50) 1.9 TTiDZ19DTR12.2007-02.2015
SAAB9-3X (YS3) 1.9 TTiDZ19DTR02.2009-12.2012
SAAB9-3X (YS3) 1.9 TTiD AWDA19DTR02.2009-12.2012
SAAB9-3X (YS3) 1.9 TTiD AWDZ19DTR02.2009-12.2012
SAAB9-5 (YS3E) 1.9 TiDZ19DTH01.2006-12.2009
SAAB9-5 (YS3G) 2.0 TiDA20DTH05.2010-01.2012
SAAB9-5 Estate (YS3E) 1.9 TiDZ19DTH01.2006-12.2009
SAAB9-5 Estate (YS3E) 1.9 TiDZ19DTR01.2007-12.2009
